Description

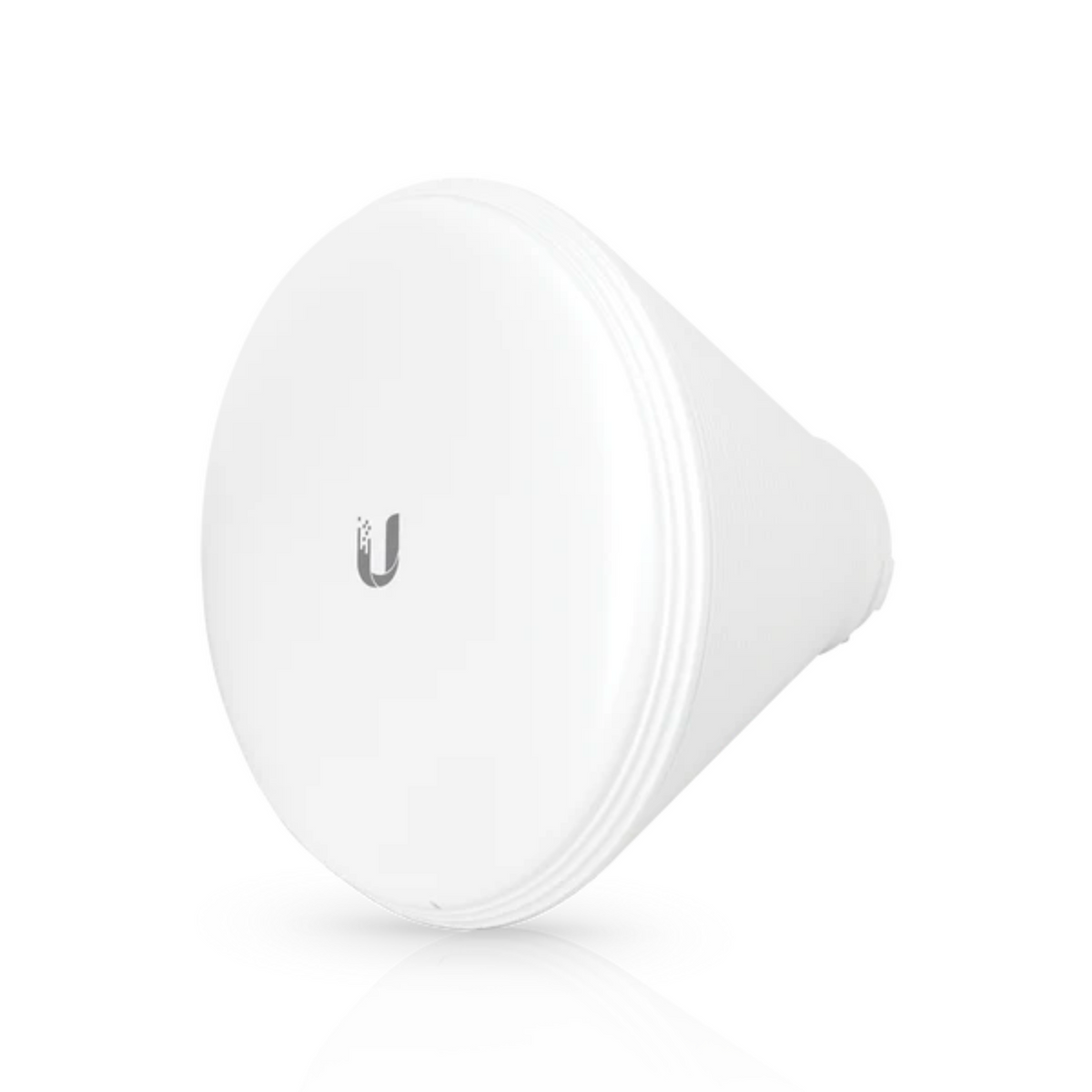

Ubiquiti 5 GHz Beamwidth Horn Antenna (Horn‑5‑45)

←
Get Your Custom Quote!

A 5 GHz horn antenna with a 45° beamwidth, designed for use with Ubiquiti radios like IsoStation, PrismStation, and airFiber LTU. It provides directional gain while minimizing side-lobes, making it ideal for co-location and high-density wireless environments.

SPECIFICATIONS

• Frequency Range: 5.15 GHz to 5.85 GHz

• Antenna Gain: 15.5 dBi

• Beamwidth: 45° horizontal and 45° vertical

• Polarization: Dual-linear (horizontal and vertical)

• Cross-Polarization Isolation: 17 dB

• VSWR (Maximum): 1.7:1

• Mounting Interface: Twist-lock HornConnector with single-button release

• Compatible Devices: IsoStation 5AC, IsoStation M5, PrismStation 5AC, airFiber LTU

• Dimensions: 175 × 175 × 96 mm

• Weight: 0.54 kg

• Wind Survivability: Up to 200 km/h

• Wind Load: 56 Newtons at 200 km/h
