Ubiquiti airMAX GigaBeam Plus (GBE‑Plus EU)

←
Get Your Custom Quote!

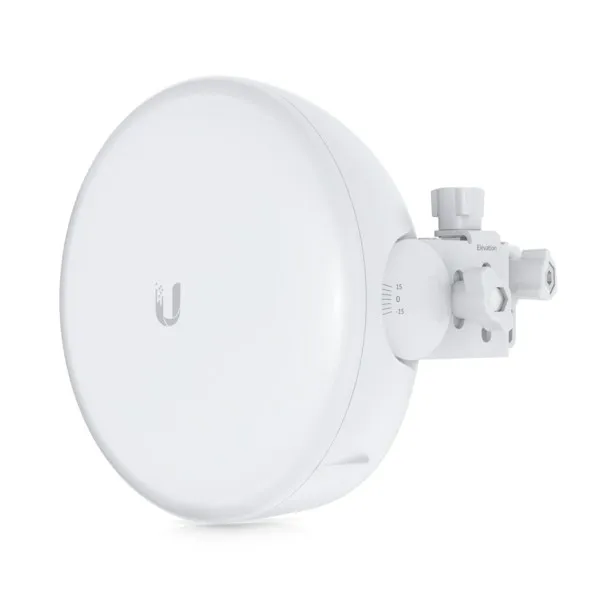

The GBE‑Plus is a compact, high-performance 60 GHz point-to-point wireless bridge featuring an integrated Cassegrain reflector and Bluetooth setup. It delivers bidirectional throughput exceeding 1.5 Gbps with ultra-low latency, making it ideal for building-to-building or backhaul links up to approximately 1.5 km. Managed easily through the UISP app, it ensures reliable, interference-free connectivity.

SPECIFICATIONS

• Dimensions: Ø 155 mm × 137 mm deep

• Weight: Approx. 1.0 kg

• Enclosure: UV-resistant polycarbonate with stainless steel

• Antenna Gain: 35 dBi (internal Cassegrain reflector)

• Ethernet: 1 × Gigabit RJ45 (10/100/1000 Mbps)

• Power Method: Passive PoE (24 V DC, adapter included)

• Power Consumption: Up to 11 W

• Operating Range: Approx. 1.5 km (line‑of‑sight)

• Throughput: >1.5 Gbps bidirectional

• Wind Resistance: Rated up to 200 km/h wind load (~50 N)

• Operating Conditions: –40 °C to +60 °C; humidity 5–95% non‑condensing

• Protection: ESD/EMP rated up to ±24 kV (air/contact)

• Processor & Memory: Quad-core ARM Cortex A7, 256 MB DDR3
