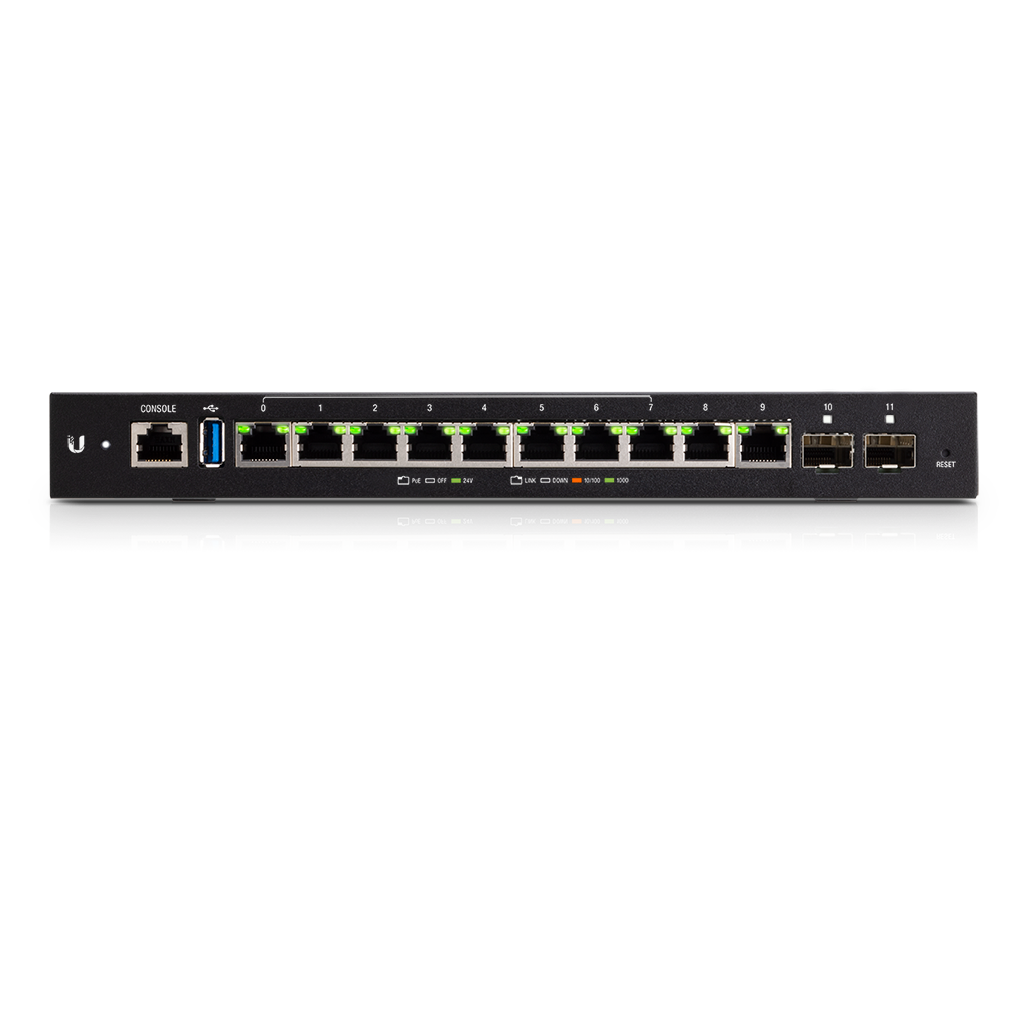

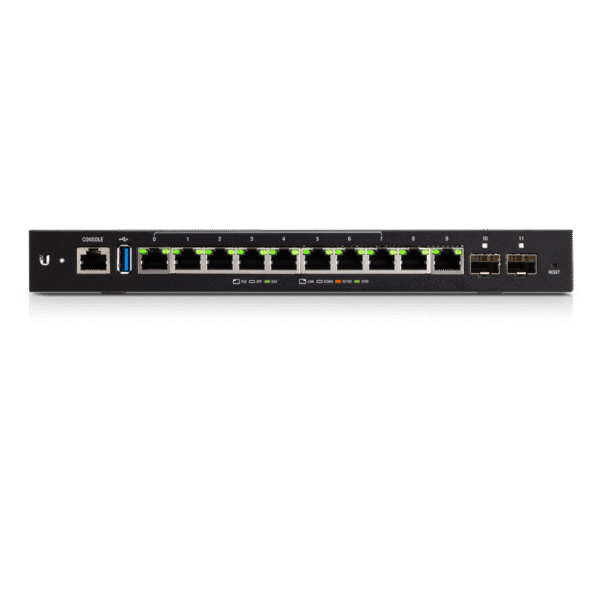

Ubiquiti EdgeRouter 12 (ER‑12)

←
Get Your Custom Quote!

The EdgeRouter 12 is a high-performance, fanless, wired router featuring 10 Gigabit RJ45 ports and 2 SFP ports. Powered by a quad-core 1 GHz MIPS64 CPU with 1 GB RAM and 4 GB storage, it handles up to 3.4 million packets per second, making it ideal for service providers, enterprise networks, and advanced home labs. It supports passive PoE input/output, EdgeOS-based routing, Layer 2 switching, VLANs, VPN, QoS, firewall, NAT, and deep packet inspection via UISP/EdgeOS

SPECIFICATIONS

• Ports:

  • 10 × Gigabit Ethernet (RJ45)

  • 2 × Gigabit SFP (Fiber)

  • 1 × RJ45 Console Port

• Processor: Quad-core 1 GHz

• RAM: 1 GB

• Storage: 4 GB internal flash

• PoE Support:

  • Passive PoE input on Port 0

  • Passive PoE passthrough on Port 9 (up to 20W)

• Max Throughput:

  • Up to 3.4 million packets per second

  • Up to 6.8 Gbps (full packet size)

• Power Supply:

  • 24V, 1A adapter included

  • DC input: 9–30V

  • Max power draw: 20W

• Cooling: Fanless (silent operation)

• Mounting: Wall or rack mountable

• Dimensions: 268.1 × 136.5 × 31.1 mm

• Weight: ~700 grams

• Operating Temp: -10°C to 50°C

• Software:

  • EdgeOS / UISP

  • VLAN, QoS, Firewall, NAT, VPN (IPsec, OpenVPN), OSPF, BGP, DPI
