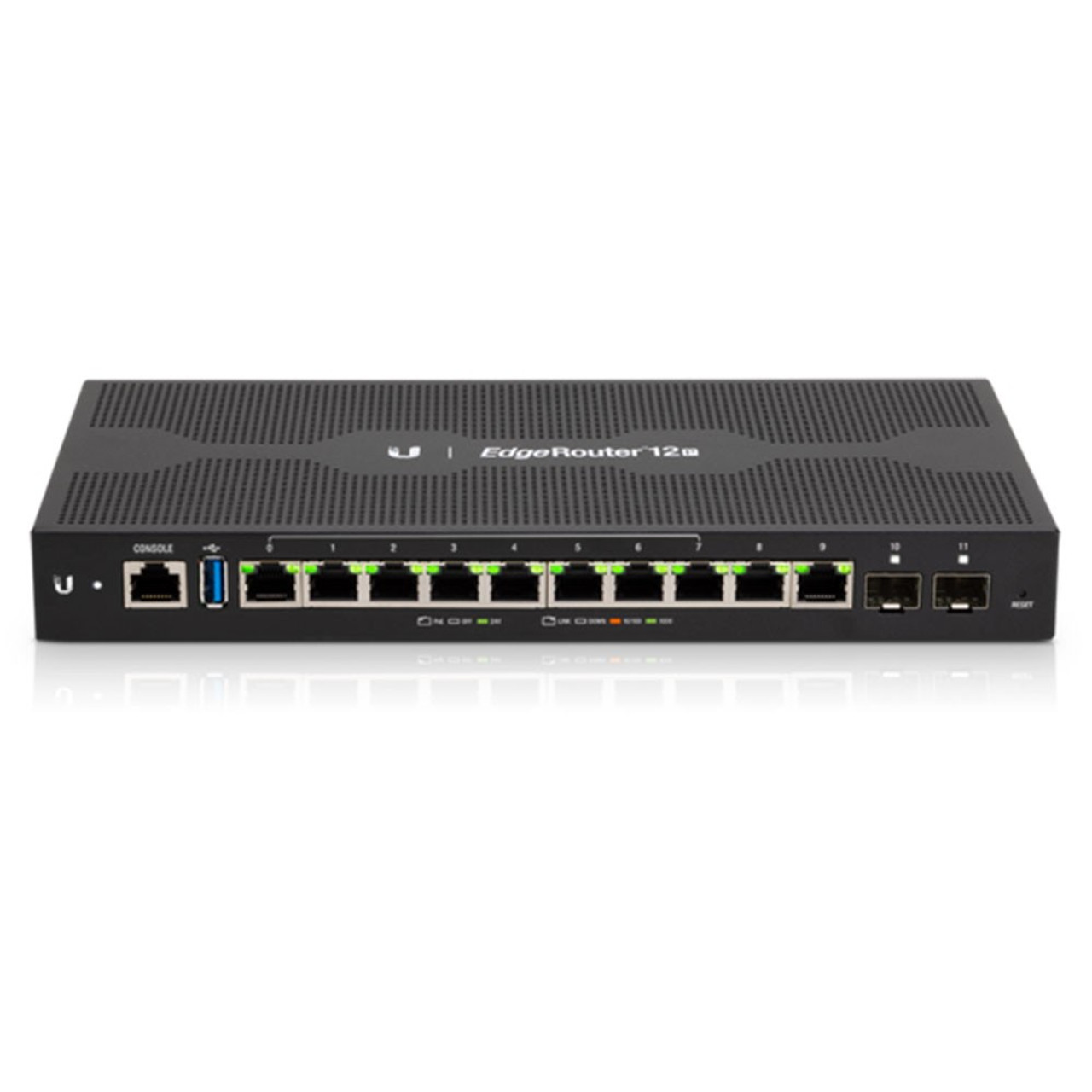

Ubiquiti EdgeRouter 12P (ER‑12P)

←
Get Your Custom Quote!

The EdgeRouter 12P is a high-performance fanless router designed for advanced networking needs. It features 10 Gigabit RJ45 ports with built-in 24 V passive PoE output (up to 17 W per port) and 2 fiber-ready Gigabit SFP ports. Powered by a quad-core 1 GHz MIPS64 CPU with 1 GB RAM, and managed via EdgeOS or UISP, it supports VLAN, firewall, VPN, static and dynamic routing, deep packet inspection, and line‑rate Layer‑2 switching.

SPECIFICATIONS

• Ethernet Ports: 10 × Gigabit RJ45

• PoE Output: 24V passive PoE on all 10 ports (up to 17W per port)

• SFP Ports: 2 × Gigabit SFP (fiber ports)

• Console Port: 1 × RJ45 serial port

• Processor: Quad-core 1 GHz

• RAM: 1 GB DDR3

• Storage: 4 GB eMMC flash

• Performance:

  • Up to 3.4 million packets per second

  • Up to 6.8 Gbps total throughput

• Power Supply: 24V, 2.5A adapter included

• Max Power Usage (without PoE): ~20W

• Cooling: Fanless (silent)

• Enclosure: Metal body

• Mounting: Rack or wall-mountable

• Dimensions: 268.1 × 136.5 × 31.1 mm

• Weight: Approx. 700 grams

• Software Features:

  • EdgeOS / UISP

  • Supports VLAN, Firewall, NAT, VPN (IPsec, OpenVPN, L2TP), QoS

  • Routing Protocols: Static, OSPF, BGP

  • Deep Packet Inspection (DPI)
