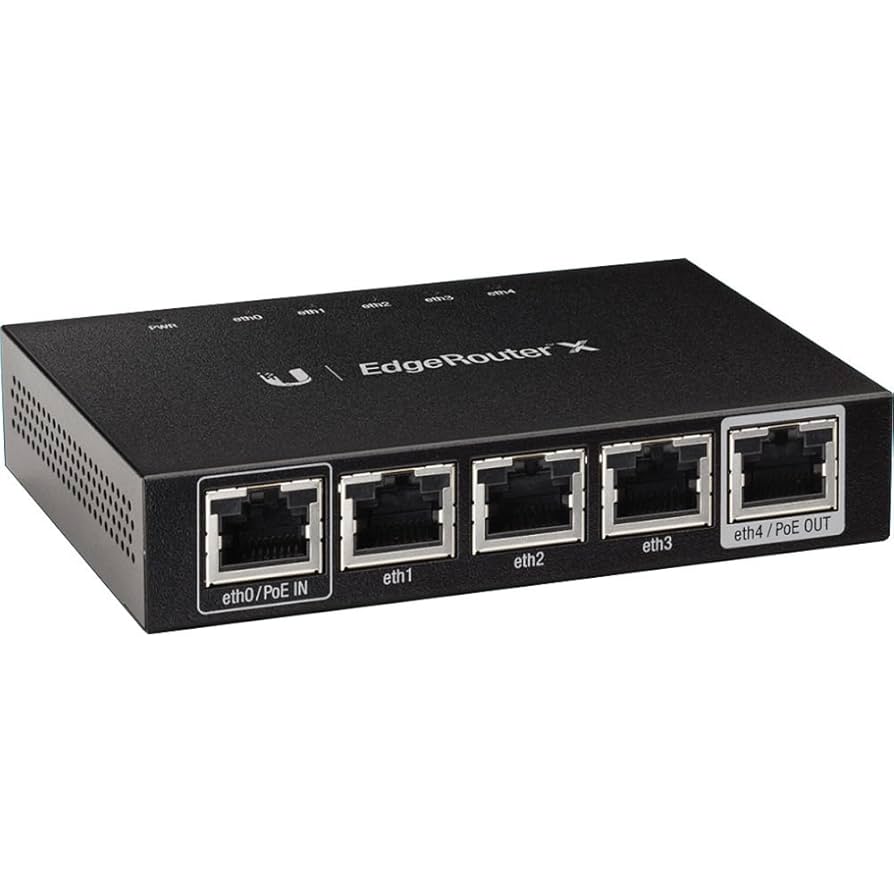

Ubiquiti EdgeRouter X (ER‑X‑EU)

←
Get Your Custom Quote!

The EdgeRouter X (ER‑X‑EU) is a compact, fanless gigabit router from Ubiquiti’s EdgeMAX lineup. Featuring a sleek metal case and wall-mount design, it delivers enterprise-class routing in a small form factor. With EdgeOS, it supports advanced features like VLANs, QoS, firewall policies, and site-to-site VPNs—making it a solid choice for both home power users and small businesses

SPECIFICATIONS

• Ethernet Ports:

  • 5 × Gigabit RJ45 Ethernet ports

    • 1 × Data + PoE input

    • 3 × Standard data ports

    • 1 × PoE passthrough (24V passive)

• Processor:

  • Dual-core 880 MHz MIPS1004Kc

• Memory:

  • 256 MB DDR3 RAM

  • 256 MB NAND Flash storage

• Power Options:

  • 12V DC adapter (included, EU plug)

  • 24V passive PoE input (on eth0)

  • Passive PoE passthrough output (on eth4)

• Power Consumption:

  • Maximum 5 watts

• Operating System:

  • EdgeOS with web GUI and CLI support

• Performance:

  • Capable of routing up to 1 Gbps under optimized configurations

• Physical Design:

  • Fanless (silent)

  • Metal casing

  • Wall-mountable

• Dimensions:

  • 110 × 75 × 22 mm

• Weight:

  • Approximately 175 grams

• Environmental:

  • Operating Temperature: –10°C to 45°C

  • Operating Humidity: 10% to 90% (non-condensing)
