Ubiquiti EdgeRouter X (ER‑X‑U)

←
Get Your Custom Quote!

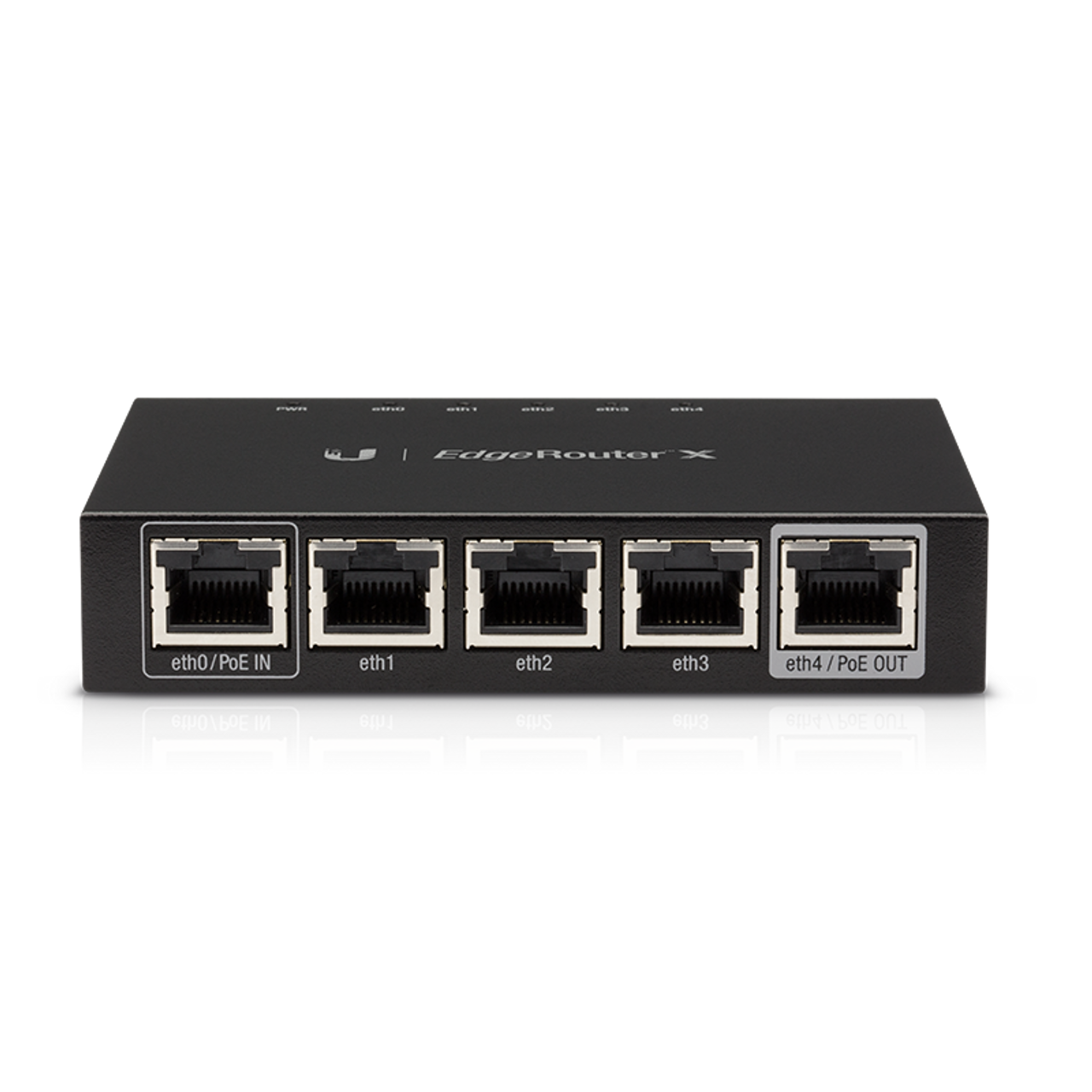

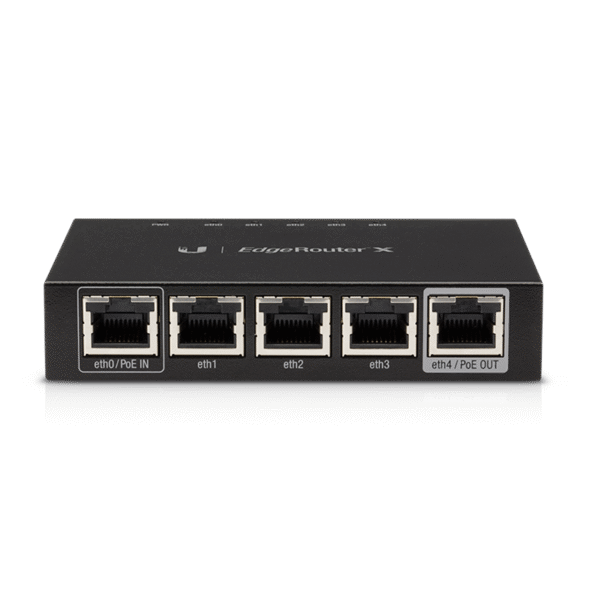

The EdgeRouter X is a compact, fanless gigabit router from Ubiquiti’s EdgeMAX family, tailored for entry-level deployments. It features five Gigabit Ethernet ports—one for PoE input and one for PoE passthrough. With its dual-core 880 MHz CPU, 256 MB RAM, and 256 MB flash storage, it supports advanced routing features like VLANs, firewall, QoS, and VPNs through EdgeOS. Ideal for small offices, home networks, or edge routing scenarios, and available with an EU-style power adapter.

SPECIFICATIONS

• Ethernet Ports:

  • 1 × Data + PoE input (set to accept 24 V passive PoE or 12 V adapter)

  • 3 × Standard data ports

  • 1 × PoE passthrough port (passive output)

• Processor:

  • Dual-core 880 MHz MIPS1004Kc

• Memory & Storage:

  • 256 MB DDR3 RAM

  • 256 MB NAND flash

• Power Options:

  • 12 V DC adapter included (0.5 A)

  • 24–26 V passive PoE input

  • Supports passive PoE passthrough from eth0 to eth4 (approx. 50 W total budget)

• Power Consumption:

  • Around 5 Watts (excluding PoE output)

• Physical & Mounting:

  • Metal fanless case

  • Wall-mountable design

  • Dimensions: ~110 × 75 × 22 mm

  • Weight: ~175 g

• Environment Support:

  • Operating Temp: –10 °C to 45 °C

  • Humidity: 10 %–90 % (non‑condensing)

• Indicators & Controls:

  • LEDs for power and link/activity on each port

  • Factory reset button

• Software Features:

  • Runs EdgeOS with both a web GUI and CLI

  • Supports advanced protocols and services: VLANs, static routing, OSPF, RIP, BGP, QoS, firewall, NAT, DHCP, VPNs (IPSec/OpenVPN), IPv6, SNMP, NetFlow
