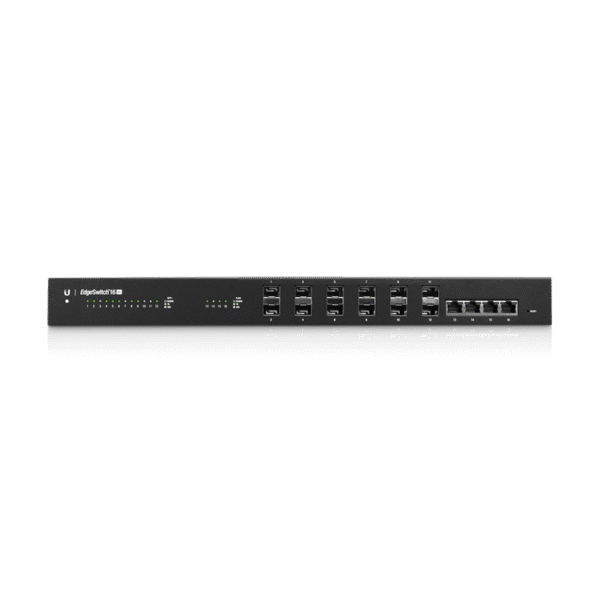

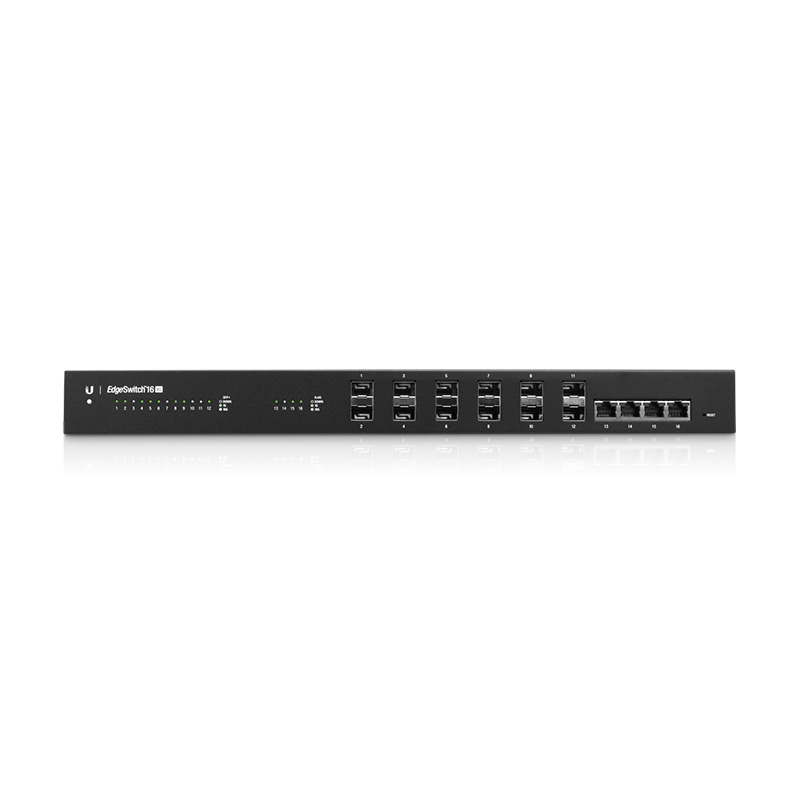

Ubiquiti EdgeSwitch 16 XG (ES‑16‑XG)

←
Get Your Custom Quote!

The EdgeSwitch 16 XG is a fully managed 10 Gigabit aggregation switch ideal for high-speed network backbones, data centers, or service provider setups. It offers 12 SFP+ fiber ports and 4 10G RJ45 copper ports in a rack-mountable, 1U fanless design. Featuring advanced Layer 2 features and basic Layer 3 routing, it’s built for performance and reliability with a non-blocking 160 Gbps throughput and silent operation

SPECIFICATIONS

• Ports:

  • 12 × SFP+ ports (1G/10G fiber)

  • 4 × RJ45 ports (1G/10G copper)

  • 1 × RJ45 serial console port

• Performance:

  • Switching capacity: 320 Gbps

  • Non-blocking throughput: 160 Gbps

  • Forwarding rate: 238 million packets per second

• Power:

  • Internal AC/DC power supply

  • Input: 100–240V AC or 16–25V DC

  • Max power consumption: 36W (without SFP modules)

• Physical Specifications:

  • Dimensions: 443 × 221 × 43 mm

  • Weight: approx. 2.6 kg (without rack ears), 2.7 kg (with rack ears)

  • 1U rack-mountable metal enclosure

• Environment:

  • Operating temperature: –5°C to 40°C

  • Humidity: 5% to 95% non-condensing

  • ESD protection: ±24kV air/contact

• Management & Features:

  • Managed through web interface, CLI, or serial console

  • Supports Layer 2 features: VLANs, STP/RSTP/MSTP, Link Aggregation

  • Basic Layer 3 features: static routing

  • Jumbo frames, IGMP snooping, ACLs, DHCP snooping

• Design:

  • Fanless, silent operation

  • Designed for high-speed aggregation and backbone switching
