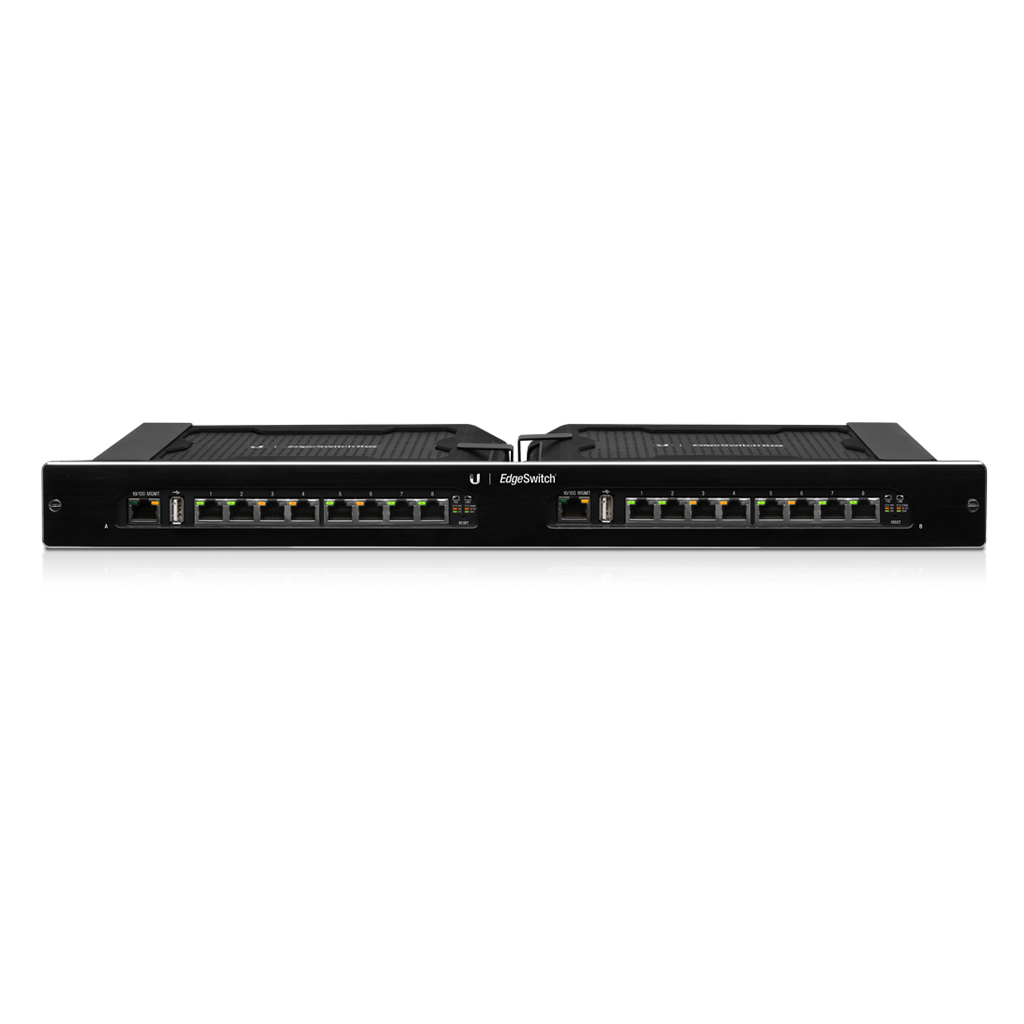

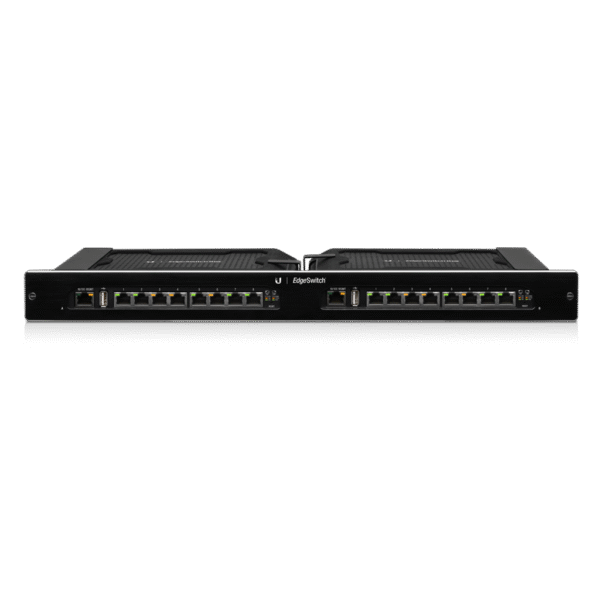

Ubiquiti EdgeSwitch 16XP (ES‑16XP)

←
Get Your Custom Quote!

This is a fully managed, rack-mountable 16‑port PoE Gigabit switch capable of delivering software-selectable passive PoE (24 V or 48 V) to devices. Essentially built from two stacked 8‑port EdgeSwitch XP units, it supports advanced Layer 2 features (VLANs, STP, link aggregation) and is controlled via a web-based UI or CLI. Perfect for powering and managing devices like access points, cameras, or VoIP phones in professional or service provider setups.

SPECIFICATIONS

• Ports:

  • 16 × Gigabit Ethernet ports (with passive PoE support)

  • 1 × 10/100 Mbps Ethernet port (management)

• PoE Output:

  • Supports passive PoE only (not 802.3af/at)

  • Selectable 24V or 48V passive PoE

  • Max output per port:

    • 24V PoE: up to 11.5W

    • 48V PoE: up to 23W

  • Total PoE budget: 150W

• Performance:

  • Powered by two internal EdgeSwitch XP units (8 ports each)

  • Fully managed with VLAN, STP, and link aggregation support

• Power Supply:

  • Internal power supply

  • Input voltage: 100–240V AC

  • Maximum power draw: 150W

• Physical:

  • Rack-mountable (1U height)

  • Dimensions: 480 × 44.5 × 186 mm

  • Weight: approx. 4 kg

• Environment:

  • Operating temperature: –25°C to 55°C

  • Humidity: 10% to 90% non-condensing

  • ESD protection: ±24kV

• Management:

  • Managed via web interface and command-line (CLI)

  • Basic Layer 2 switch functions with user-friendly interface

• Other Features:

  • Jumbo frame support

  • Ping watchdog

  • System alerts and event logging
