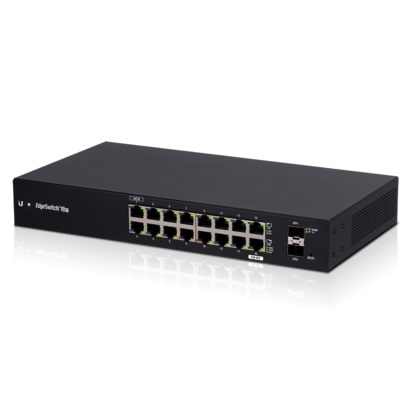

Ubiquiti EdgeSwitch 18X (ES‑18X)

←
Get Your Custom Quote!

The EdgeSwitch 18X is an affordable, fanless Layer 2 managed switch ideal for WISP and small business networks. It includes 16 Gigabit RJ45 Ethernet ports and 2 SFP ports for fiber connectivity. It features passive PoE support—input through port 1 and passthrough on port 16—and is available with a wall or rack mount option. This compact metal switch delivers reliable performance and ease of management via the EdgeSwitch web UI or UISP controller

SPECIFICATIONS

• Ports:

  • 16 × Gigabit Ethernet (RJ45) ports

  • 2 × SFP ports (1 Gbps fiber uplinks)

  • 1 × Management port (in-band)

• PoE Support:

  • Passive PoE input on port 1

  • PoE passthrough available on port 16 (up to 15W)

  • Accepts power via 24V DC adapter or 24V passive PoE input

• Performance:

  • Switching capacity: 36 Gbps

  • Non-blocking throughput: 18 Gbps

  • Forwarding rate: 26.78 million packets per second

• Hardware Specs:

  • CPU: 500 MHz MIPS

  • RAM: 128 MB

  • Flash storage: 16 MB

  • Fanless, metal body

• Power:

  • Power input: 24V DC, 1A

  • Max power consumption: 14W (without PoE output)

• Physical Dimensions:

  • Size: 299.8 × 160 × 43.7 mm

  • Weight: approx. 1.2 kg (without mounting brackets)

• Environmental Tolerance:

  • Operating temperature: –10°C to 50°C

  • Humidity: 10% to 90% (non-condensing)

  • ESD protection: 16kV air / 8kV contact

• Software Features:

  • Managed via web UI or UISP

  • Supports VLANs, QoS, jumbo frames, and basic Layer 2 functions
