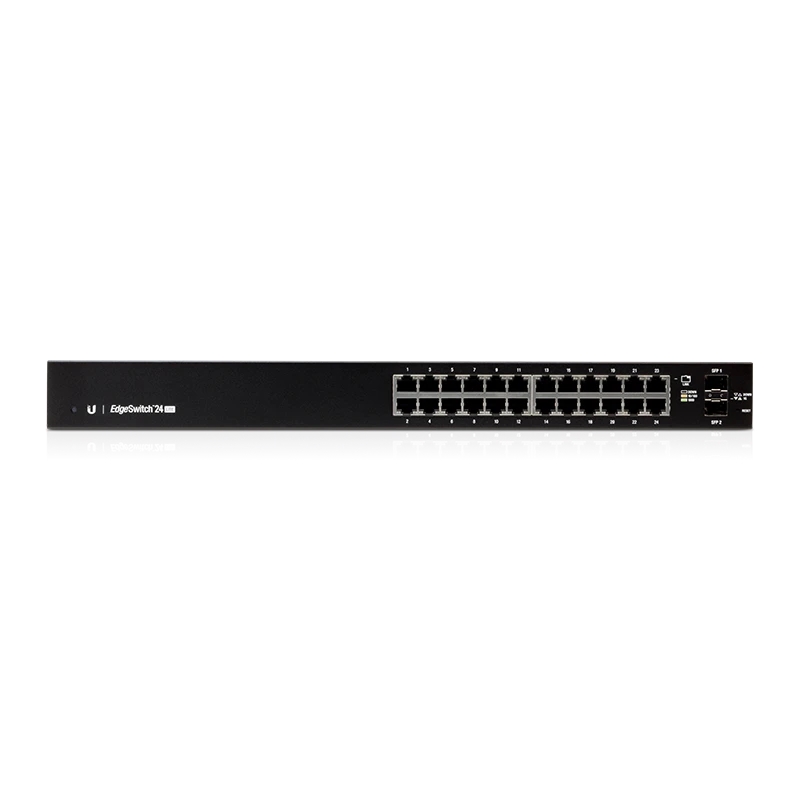

Ubiquiti EdgeSwitch 24 Lite EU (ES‑24‑Lite‑EU)

←
Get Your Custom Quote!

The Ubiquiti EdgeSwitch 24 Lite EU is a fully managed Layer 2 switch designed for high-performance Gigabit networking in environments that do not require PoE. It features 24 RJ45 Gigabit ports and 2 SFP uplink ports for fiber connectivity. The switch provides robust switching capacity and advanced features such as VLANs, link aggregation, and static routing — all accessible via a user-friendly web interface or command line.

SPECIFICATIONS

• Total Ports:

  • 24 × Gigabit Ethernet (RJ45) – No PoE

  • 2 × 1G SFP Fiber Uplink Ports

  • 1 × RJ45 Console Port

• Switching Capacity:

  • 52 Gbps total data capacity

  • 26 Gbps non-blocking throughput

  • 38.69 Mpps forwarding rate

• Power:

  • Uses internal AC power supply (EU standard)

  • Power consumption: Approx. 25 watts

  • Fanless design (silent operation)

• Management:

  • Supports Web UI, CLI (SSH/Console), and UISP

  • Advanced features: VLAN, Link Aggregation, Static Routing, QoS, Jumbo Frames

• Physical:

  • Rack-mountable (1U height)

  • Size: 443 × 221 × 43 mm

  • Weight: Approx. 2.6 kg

• Operating Environment:

  • Temperature: –5°C to 40°C

  • Humidity: 5% to 95% (non-condensing)
