Description

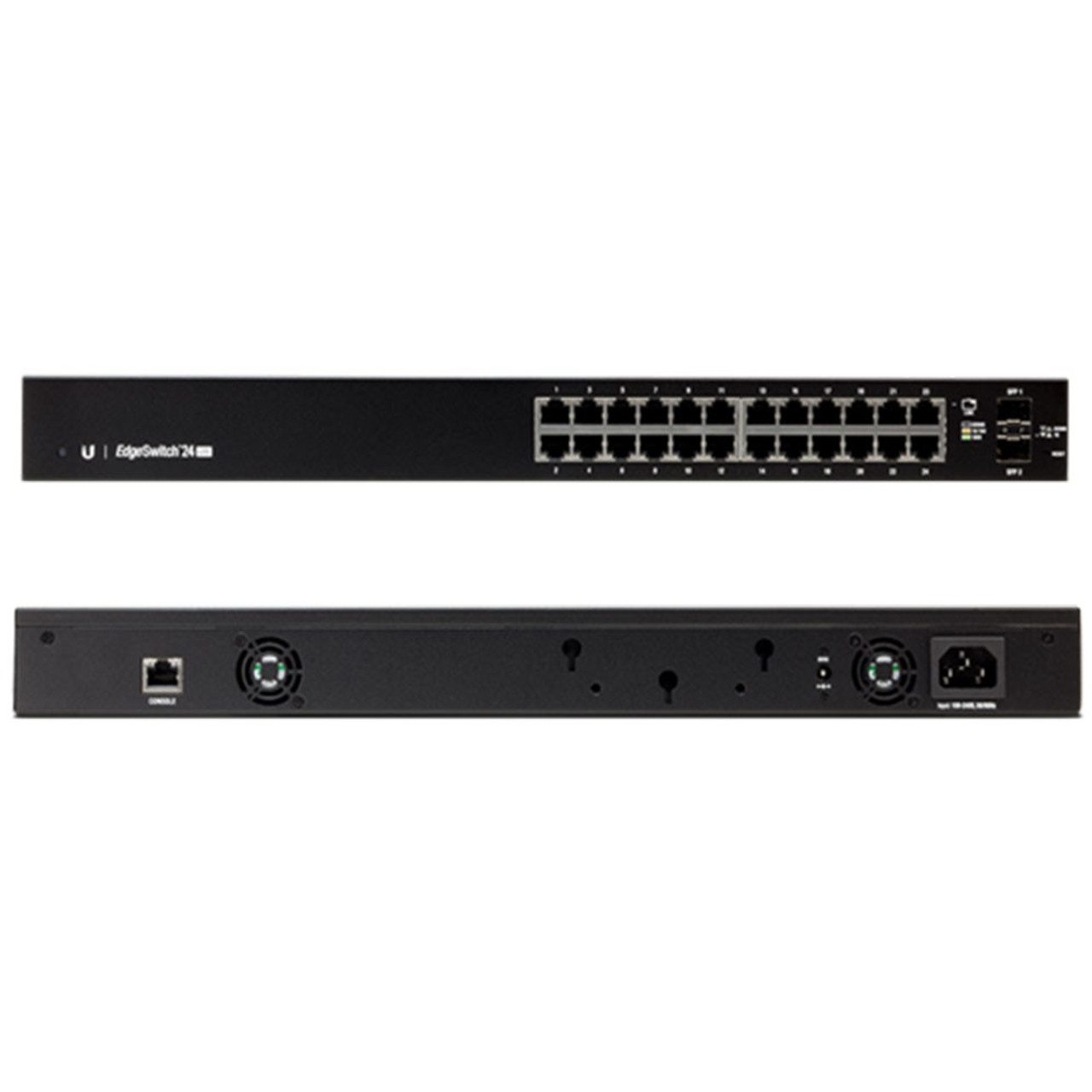

Ubiquiti EdgeSwitch 24 Lite U (ES‑24‑Lite‑U)

←
Get Your Custom Quote!

The EdgeSwitch 24 Lite-U is a 24-port managed Gigabit switch with 2 SFP uplinks, built for enterprise networks that do not require PoE. It offers advanced Layer 2 features, static Layer 3 routing, and a silent fanless design. The “U” version includes a U.S. standard power cable, making it suitable for installations in North America and similar regions.

SPECIFICATIONS

• Ethernet Ports:

  • 24 × Gigabit RJ45 Ethernet ports (non‑PoE)

  • 2 × 1G SFP fiber uplinks

  • 1 × RJ45 console port

• Switching Capacity:

  • Total switching: 52 Gbps

  • Non-blocking throughput: 26 Gbps

  • Forwarding rate: 38.69 million packets per second (Mpps)

• Power & Cooling:

  • Internal power supply (100–240V AC)

  • Power consumption: ~25W

  • Fanless cooling (silent operation)

  • Comes with U.S. standard power cord

• Physical Specs:

  • Size: 443 × 221 × 43 mm

  • Weight: approx. 2.5–2.6 kg

  • Rack-mountable (1U metal chassis)

• Software & Features:

  • Layer 2 switching and static Layer 3 routing

  • VLAN, Link Aggregation, QoS, IGMP Snooping, Jumbo Frames

  • Managed via Web GUI, CLI (SSH/Serial), and UISP

• Environment:

  • Operating temperature: –5°C to 40°C

  • Humidity: 5–95% non-condensing
