Ubiquiti EdgeSwitch 24 PoE (250 W) US – ES‑24‑250W‑U

←
Get Your Custom Quote!

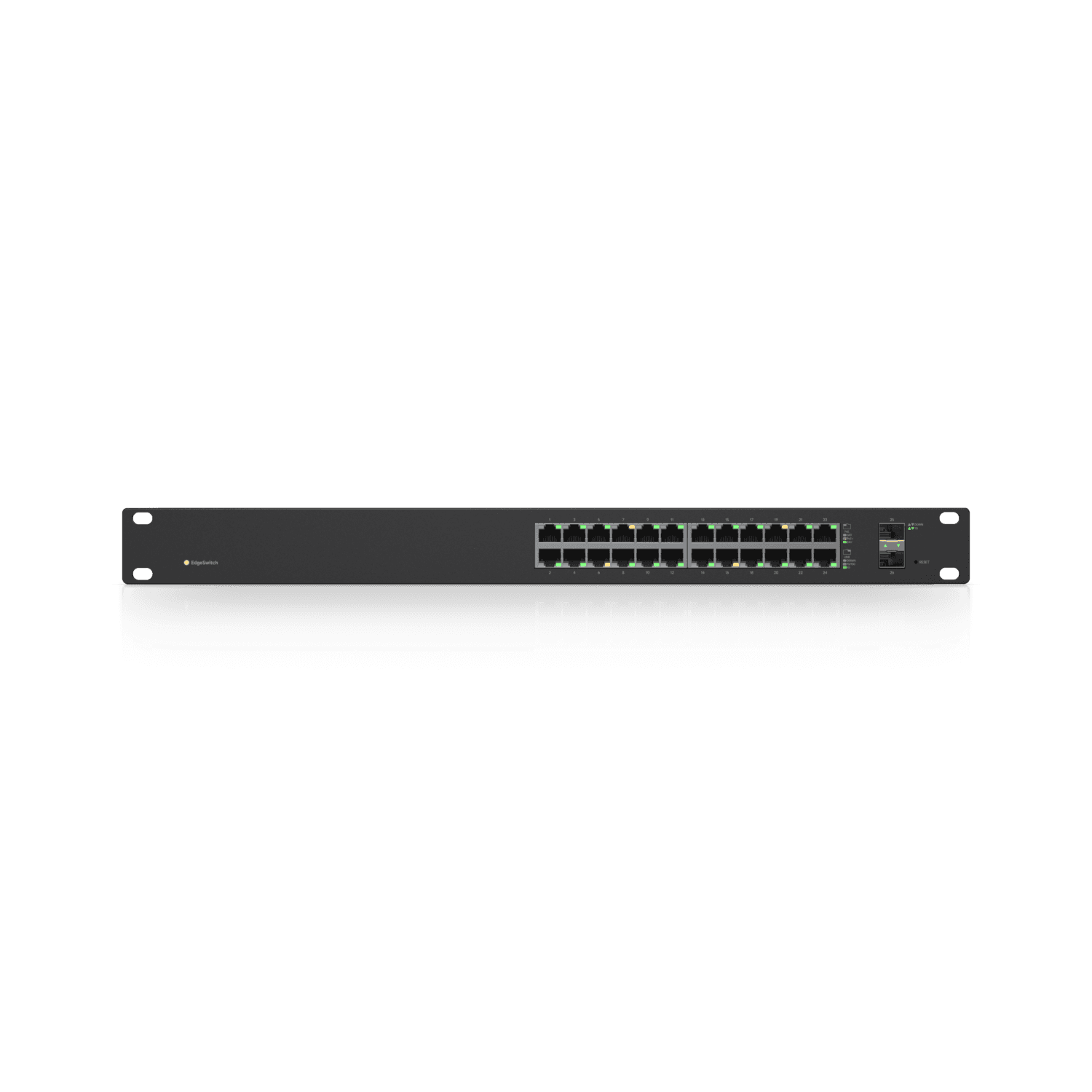

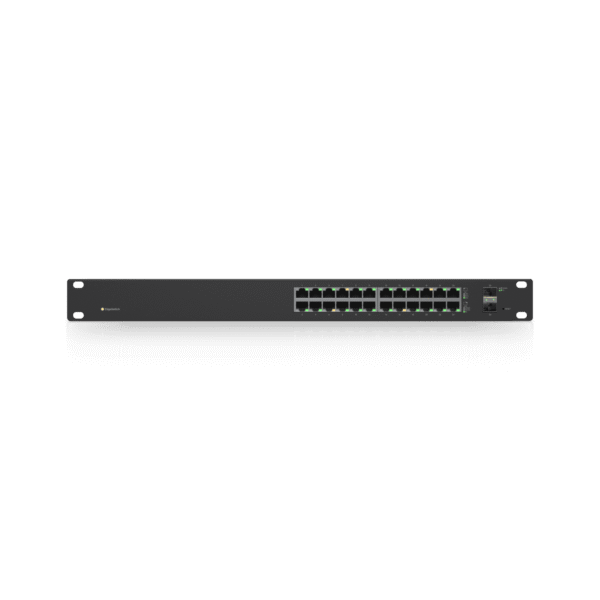

The EdgeSwitch 24 PoE (250 W) is a fully managed, rack-mountable Gigabit switch featuring 24 RJ45 ports with PoE+, 2 SFP fiber uplink ports, and a robust 250 W internal power supply. Engineered for enterprise, surveillance, or wireless network deployments, it supports both IEEE 802.3af/at PoE+ and 24 V passive PoE, delivering high-density, intelligent switching with Layer 2/3 management via web UI, CLI, or UISP.

SPECIFICATIONS

• Ports:

  • 24 × Gigabit Ethernet (RJ45) with PoE support

  • 2 × SFP fiber uplink ports

  • 1 × RJ45 console port for management

• PoE Power:

  • Supports PoE+ (802.3af/at) up to 34.2W per port

  • Also supports 24V Passive PoE

  • Total PoE budget: 250 Watts

• Performance:

  • Switching capacity: 52 Gbps

  • Throughput: 26 Gbps (non-blocking)

  • Forwarding rate: 38.69 million packets per second

• Power Supply:

  • Built-in 250W AC power supply

  • Input voltage: 100–240V AC

• Size & Weight:

  • Dimensions: 485 x 285.4 x 43.7 mm

  • Weight: approx. 4.7 kg

  • Rack-mountable (1U height)

• Environment:

  • Operating temperature: –5°C to 40°C

  • Humidity: 5% to 95% non-condensing

• Software Features:

  • Managed Layer 2 and Layer 3 switching

  • VLANs, QoS, Link Aggregation, IGMP/DHCP Snooping

  • Web UI, CLI, and UISP support
