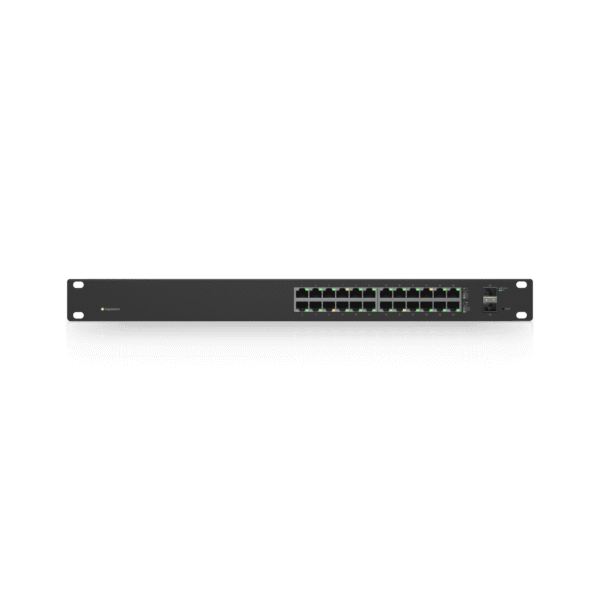

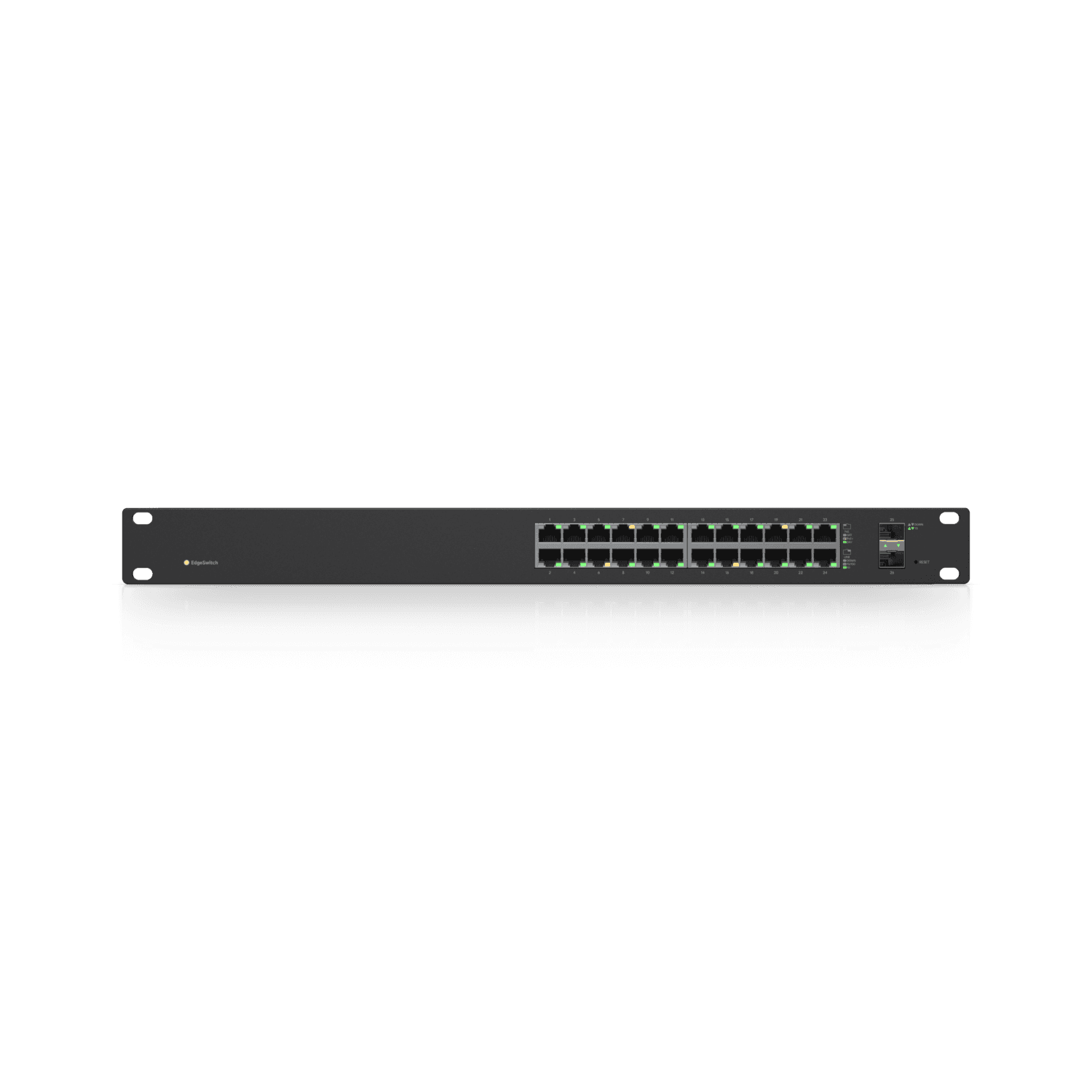

Ubiquiti EdgeSwitch 24 PoE (250W) – ES‑24‑250W

←
Get Your Custom Quote!

A rack‑mountable, fully managed Gigabit switch offering 24 RJ45 ports and 2 SFP uplink ports, powered by a 250‑watt internal PSU. Supports both standard IEEE 802.3af/at PoE+ and 24V passive PoE. Ideal for powering IP cameras, access points, and VoIP phones across large networks.

SPECIFICATIONS

• Ports:

  • 24 × Gigabit Ethernet RJ45 with PoE+

  • 2 × Gigabit SFP fiber ports

  • 1 × Serial console port

• Switching Performance:

  • Non‑blocking throughput: 26 Gbps

  • Switching capacity: 52 Gbps

  • Packet forwarding: 38.69 Mpps

• PoE Support:

  • IEEE 802.3af/at PoE+ up to 34.2 W per port

  • 24 V passive PoE up to 17 W per port

  • Total PoE budget: 250 W

• Power & Consumption:

  • Internal 250 W AC/DC power supply (100–240 V AC)

  • Device idle power: ~30 W (excl. PoE output)

• Physical & Mounting:

  • Rack-mountable 1U steel chassis

  • Dimensions: 485 × 285.4 × 43.7 mm

  • Weight: ~4.7 kg

• Environment & Durability:

  • Operating temp: –5°C to 40°C

  • Humidity: 5–95% non‑condensing

  • ESD/EMP protection: ±24 kV air/contact

  • Compliant with CE, FCC, IC, NDAA

• Management Features:

  • Full Layer 2/3 switch with VLANs, ACLs, link aggregation, QoS, DHCP/IGMP snooping

  • Managed via web UI, CLI, and UISP

  • LED indicators per port (PoE, link/activity)
