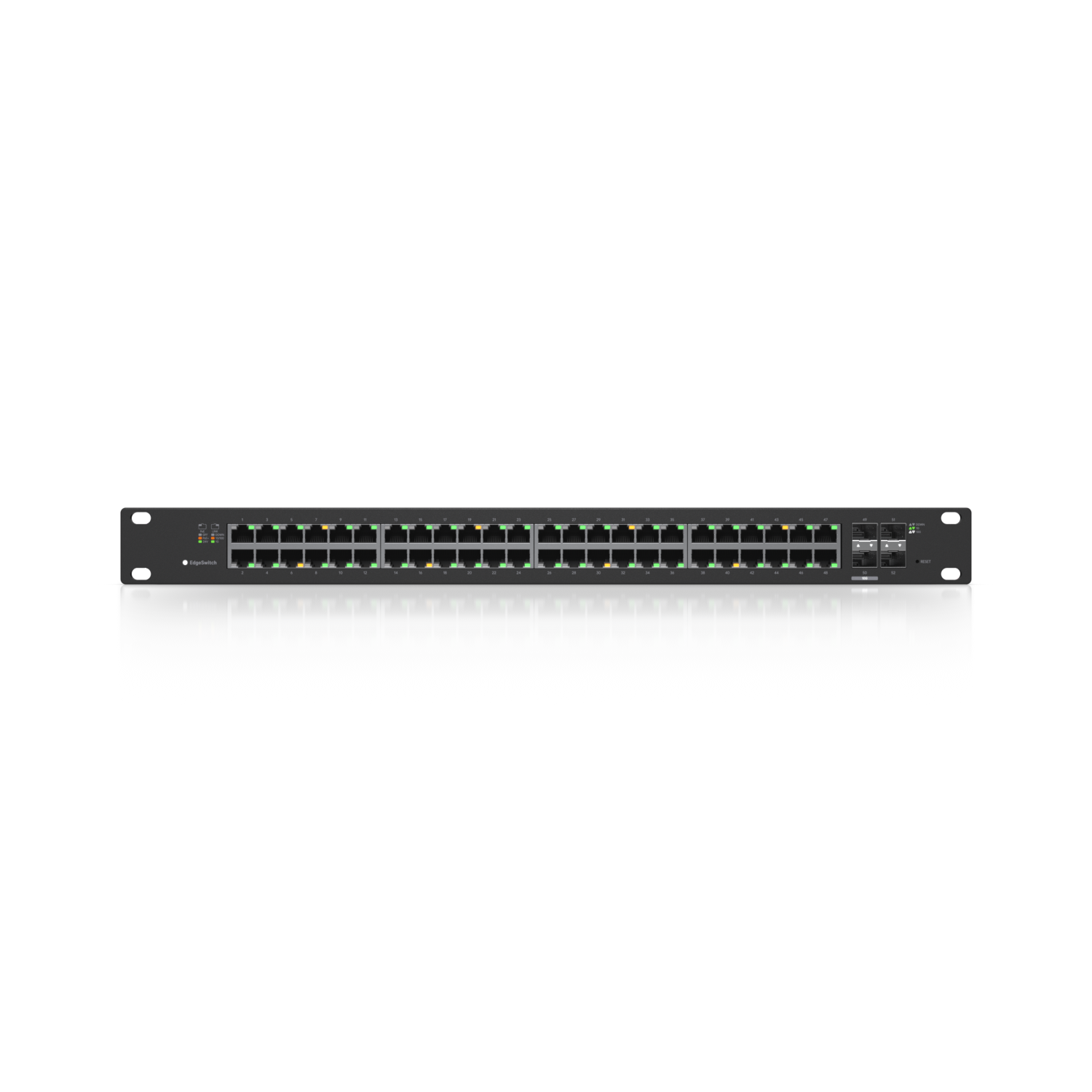

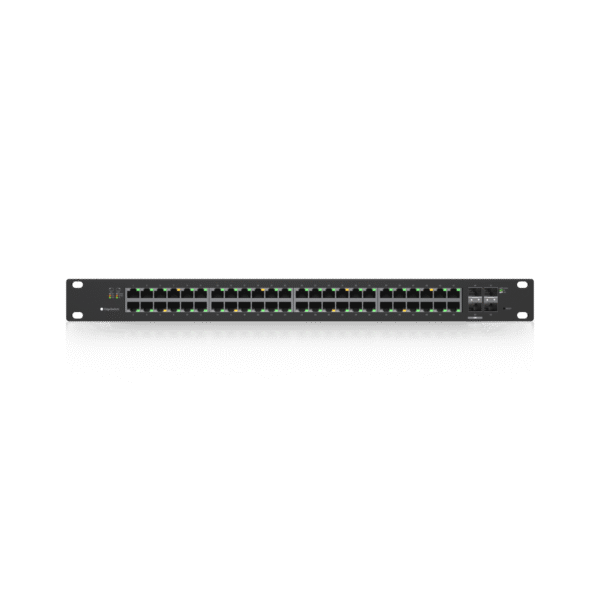

Ubiquiti EdgeSwitch 48 500W EU (ES‑48‑500W‑EU)

←
Get Your Custom Quote!

The EdgeSwitch 48 500W EU is a fully managed 48-port Gigabit switch with PoE+ and 24V passive PoE support. It’s ideal for powering devices such as IP cameras, access points, and VoIP systems. This model includes 2 SFP+ 10G uplinks, 2 SFP 1G uplinks, and is equipped with a 500-watt power supply. The EU version includes a European-standard power cord and compliance, making it suitable for installations across Europe.

SPECIFICATIONS

• Ports:

  • 48 × Gigabit Ethernet (RJ45) ports with PoE+

  • 2 × 10G SFP+ uplink ports

  • 2 × 1G SFP ports

  • 1 × Console port (RJ45)

• PoE Output:

  • IEEE 802.3af/at PoE+ and 24V passive PoE

  • Total PoE Budget: 500W

• Performance:

  • Switching Capacity: 140 Gbps

  • Non-blocking Throughput: 70 Gbps

  • Forwarding Rate: 104.16 Mpps

• Power:

  • Internal Power Supply: 500W

  • Input Voltage: 100–240V AC

  • EU power plug included

• Physical:

  • Size: 485 x 374.6 x 43.7 mm

  • Weight: Approx. 6.1 kg

  • Rack-mountable (1U)

  • Cooling: Internal fan

• Management:

  • Managed via Web UI, CLI, or UISP

  • Features: VLAN, Link Aggregation, Jumbo Frames, QoS, IGMP Snooping, Static Routing

• Environmental:

  • Operating Temp: –5°C to 40°C

  • Humidity: 5% – 95% non-condensing
