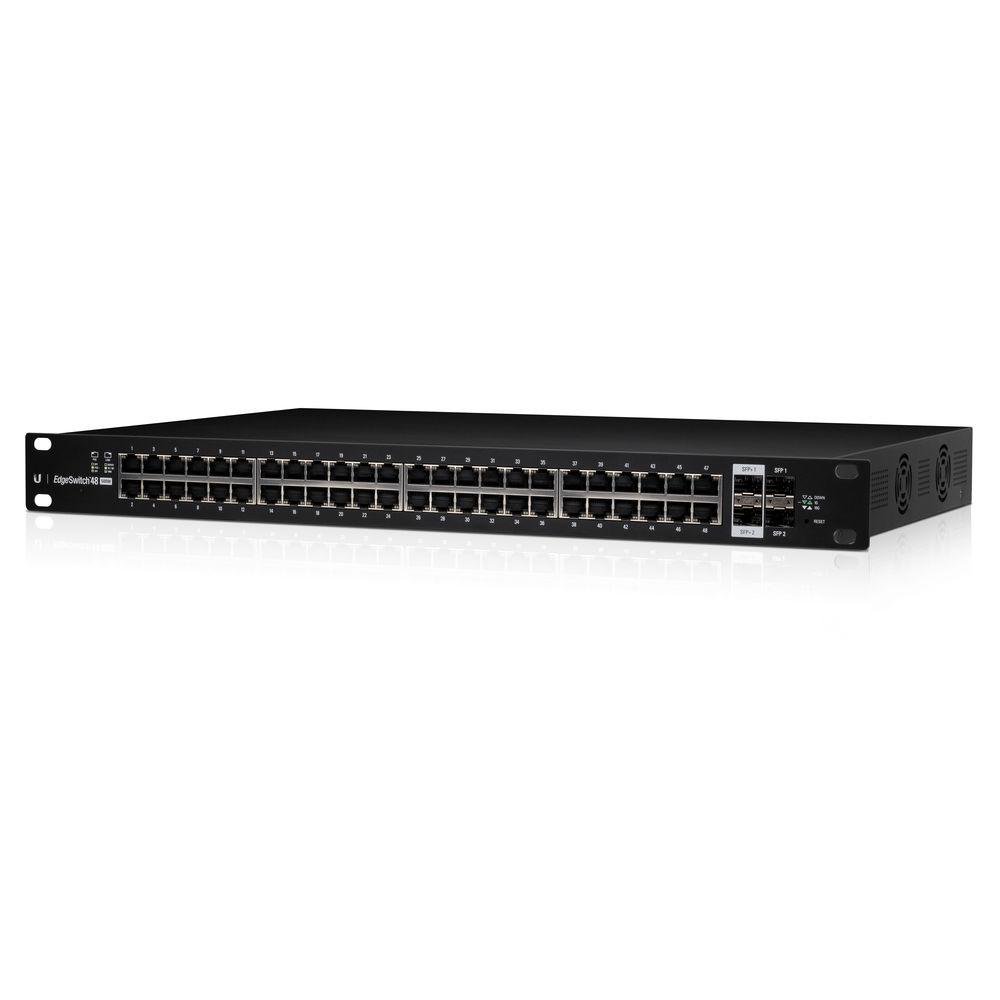

Ubiquiti EdgeSwitch 48 PoE (500W) – ES‑48‑500W

←
Get Your Custom Quote!

This rack‑mountable, fully managed Gigabit switch delivers enterprise-class networking with 48 RJ45 ports supporting PoE+ and passive 24 V PoE, along with two 10 Gbps SFP+ uplinks and two 1 Gbps SFP ports. Ideal for powering large-scale deployments such as IP cameras, access points, VoIP systems, and switches, the ES‑48‑500W provides a robust 500 W PoE budget, advanced Layer 2 and Layer 3 capabilities, and high throughput.

SPECIFICATIONS

• Total Ports:

  • 48 × Gigabit Ethernet ports (RJ45) – with PoE+ and 24V passive PoE

  • 2 × 10G SFP+ uplink ports

  • 2 × 1G SFP fiber ports

  • 1 × RJ45 serial console port

• PoE Output:

  • Supports 802.3af/at PoE+ and 24V passive PoE

  • Total PoE power budget: 500 watts

• Performance:

  • Switching capacity: 140 Gbps

  • Non-blocking throughput: 70 Gbps

  • Forwarding rate: 104.16 Mpps (Million packets per second)

• Power Supply:

  • Internal 500W power supply

  • Input: 100–240V AC

  • Power draw (device only): around 64W

• Management:

  • Managed via Web UI, CLI (SSH/Console), and UISP

  • Supports VLAN, QoS, IGMP Snooping, Link Aggregation, Jumbo Frames

  • Layer 2 and basic Layer 3 (Static Routing)

• Physical Details:

  • Rack-mountable (1U)

  • Size: 485 × 374.6 × 43.7 mm

  • Weight: ~6.1 kg

• Environment:

  • Operating temperature: –5°C to 40°C

  • Humidity: 5% to 95% (non-condensing)

  • Fan-cooled
