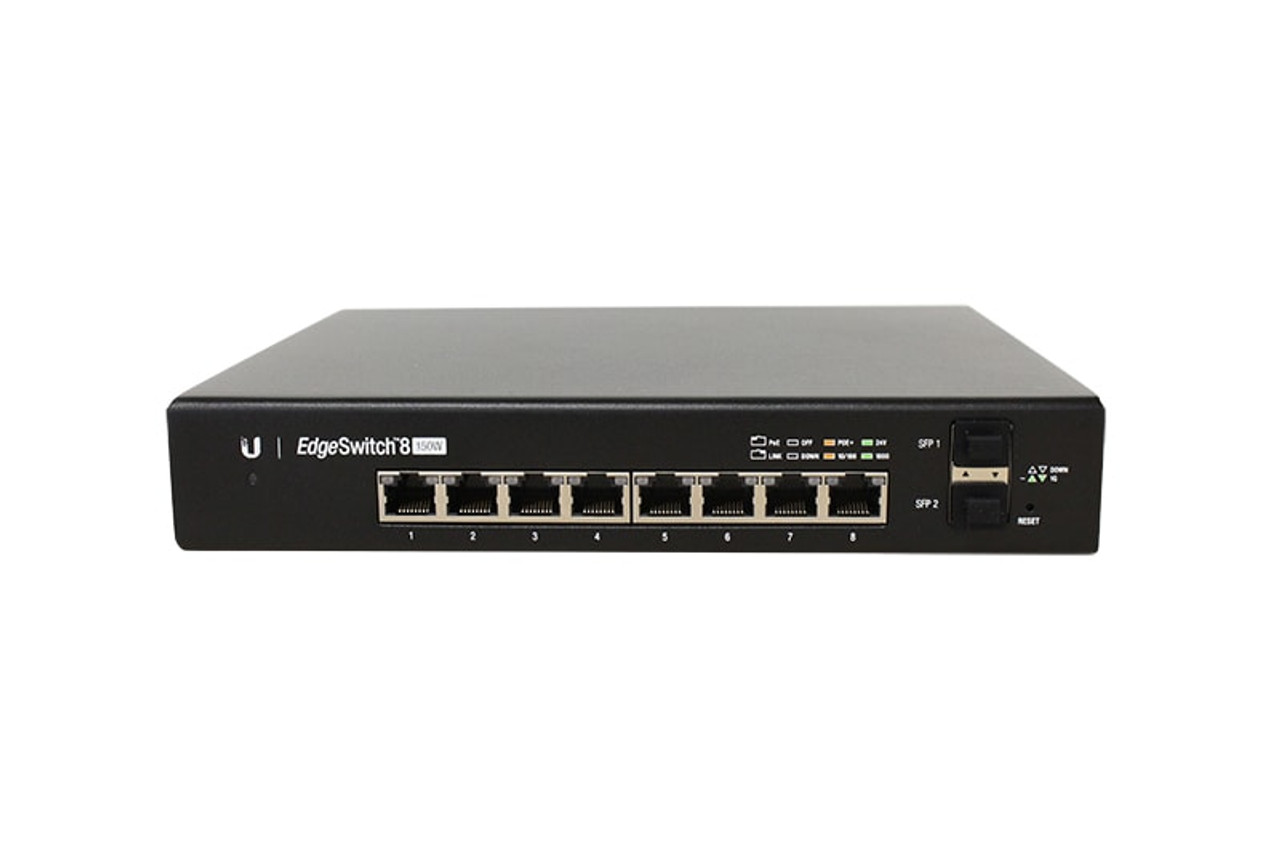

Ubiquiti EdgeSwitch 8-Port 150W(ES‑8‑150W‑U)

←
Get Your Custom Quote!

The Ubiquiti EdgeSwitch ES-8-150W-U is a compact, silent, and fully managed switch with 8 Gigabit ports that provide both PoE+ and 24V Passive PoE, making it ideal for powering access points, cameras, or VoIP phones. It also includes 2 SFP fiber ports for uplinks and provides a total 150W PoE power budget. Designed for U.S. power standards, it is ideal for professional network deployments needing advanced control and performance.

SPECIFICATIONS

• Total Ports: 8 Gigabit Ethernet ports

• Uplink Ports: 2 SFP fiber ports (1 Gbps each)

• PoE Support: Yes – PoE+ (802.3af/at) and 24V Passive PoE

• PoE Power Budget: 150 Watts total

• Maximum Power per Port: Up to 34.2W

• Port Speed: 10/100/1000 Mbps

• Switching Capacity: 20 Gbps

• Data Throughput: 10 Gbps (non-blocking)

• Forwarding Rate: 14.88 million packets per second (Mpps)

• Cooling: Fanless (completely silent)

• Management: Web interface + CLI (SSH, Telnet, Serial)

• Mounting Options: Desktop or wall mount

• Power Input: 100–240V AC (U.S. plug type)

• Size: 204 × 43 × 235 mm

• Weight: 1.8 kg

• Operating Temperature: –25°C to 55°C
