Ubiquiti IsoStation 5AC(IS‑5AC‑U)

←
Get Your Custom Quote!

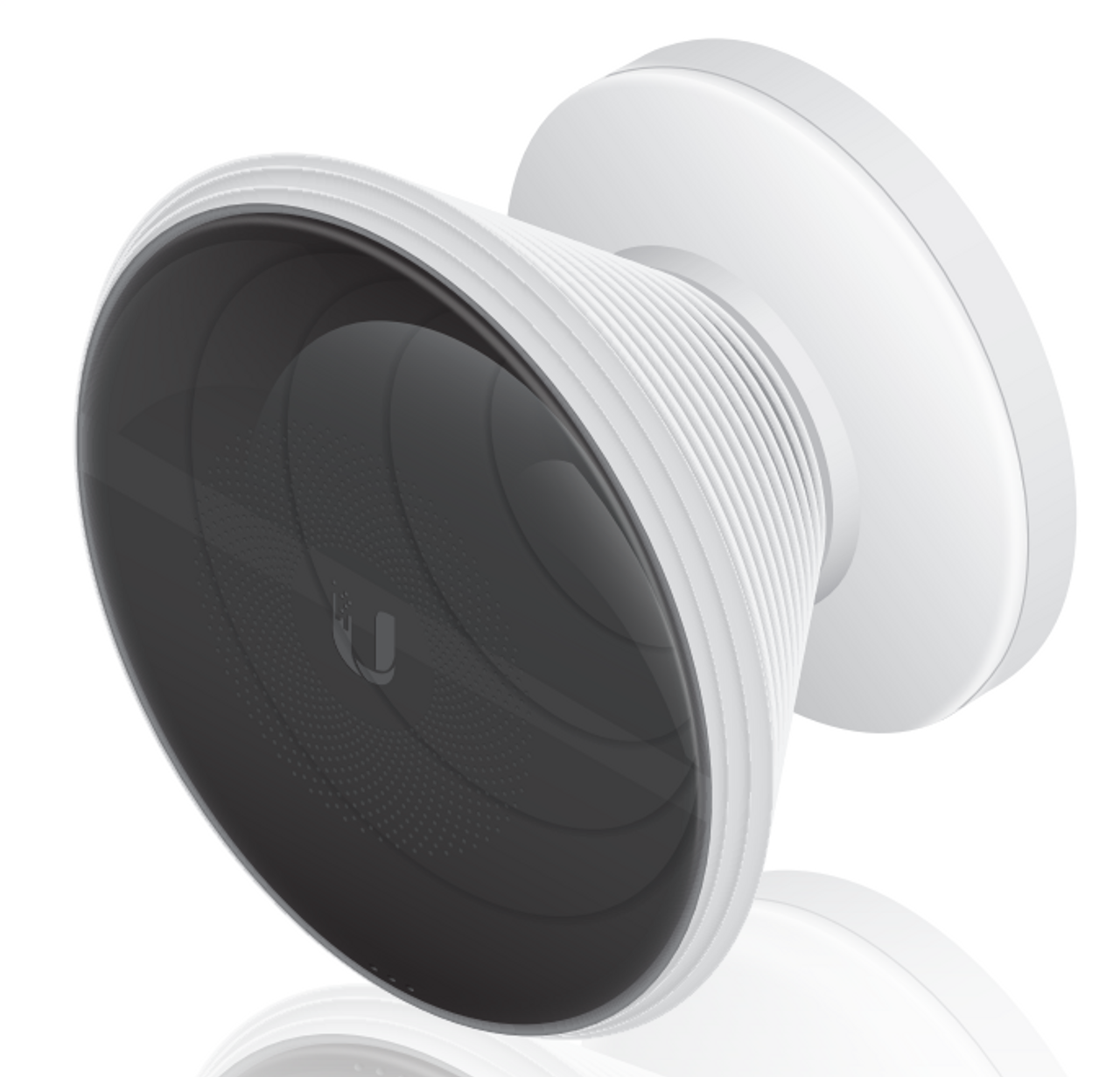

The Ubiquiti IsoStation 5AC (U) is a powerful 5 GHz outdoor wireless device designed for high-performance point-to-point (PtP) or point-to-multipoint (PtMP) links. It features a modular antenna design allowing for interchangeable horn antennas, enabling focused beam control and enhanced noise isolation. This version is designed for use in the U.S. region and supports management via built-in 2.4 GHz Wi-Fi using UISP or airOS 8.

SPECIFICATIONS

• Frequency Range: 5725 – 5850 MHz (U.S. region)

• Default Antenna Beamwidth: 45°

• Antenna Gain: 14 dBi (with 45° horn)

• Interchangeable Horns: Supports optional 30°, 60°, and 90° antennas

• Ethernet Port: 1 × Gigabit Ethernet (RJ45)

• PoE Input Voltage: 24V Passive PoE (20–27V)

• Max Power Consumption: 8.5 W

• Processor: MIPS 74Kc

• Memory: 64 MB DDR2 RAM

• Management Interface: Built-in 2.4 GHz Wi-Fi

• Weather Resistance: Outdoor UV-stabilized enclosure

• Surge Protection: ±24 kV ESD/EMP

• Wind Survivability: Up to 200 km/h

• Wind Load: 36 Newtons at 200 km/h

• Operating Temperature: –40°C to +70°C

• Humidity: 5% to 95% non-condensing

• Dimensions (with horn): 174 × 174 × 150 mm

• Weight (with horn): 726 g

• Mounting: Pole mount included
