Description

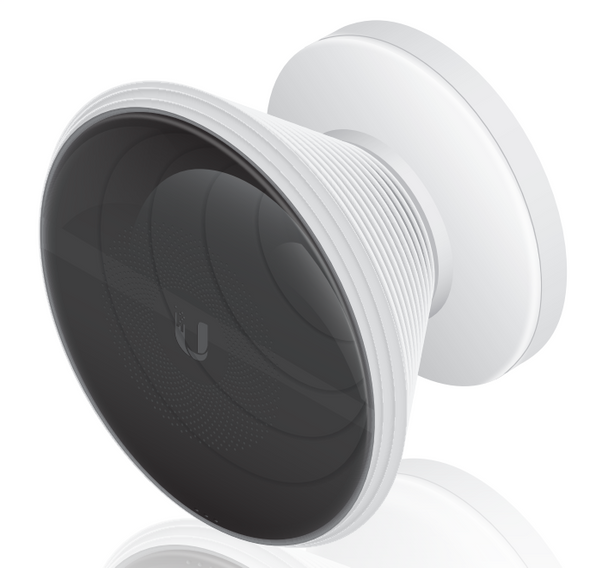

Ubiquiti IsoStation M5(IS‑M5‑U)

←
Get Your Custom Quote!

The Ubiquiti IsoStation M5 U is an outdoor 5 GHz CPE radio designed for reliable point-to-point or point-to-multipoint wireless bridging. It uses an interchangeable horn antenna system for beam shaping and interference reduction, making it ideal for high-density RF environments. This model is configured for U.S. frequency regulations.

SPECIFICATIONS

• Frequency Range: 5725 – 5850 MHz (U.S. region)

• Default Antenna: 45° beamwidth horn

• Antenna Gain: 14 dBi

• Horn Options: 30°, 60°, 90° (interchangeable)

• Ethernet Port: 1 × Gigabit Ethernet (RJ45)

• Power Input: 24V Passive PoE (20–27V)

• Max Power Consumption: 6.5 W

• Processor: MIPS 74Kc

• Memory: 64 MB DDR2 RAM

• Surge Protection: ±24 kV ESD/EMP

• Operating Temperature: –40°C to +70°C

• Humidity Range: 5% to 95% non-condensing

• Wind Survivability: Up to 200 km/h

• Wind Load: 36 Newtons at 200 km/h

• Enclosure: UV-resistant outdoor-grade plastic

• Dimensions (with horn): 174 × 174 × 150 mm

• Weight (with horn): 726 g

• Mounting: Pole-mount kit included
