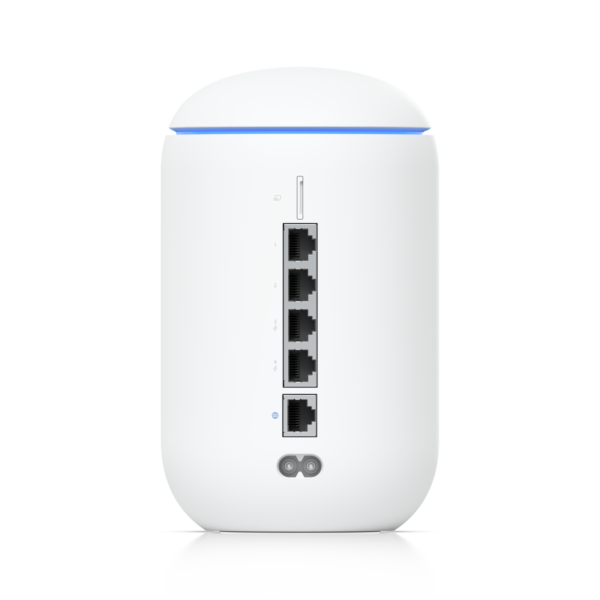

Ubiquiti UniFi Dream Router (UDR)

←
Get Your Custom Quote!

The Ubiquiti UniFi Dream Router (UDR) is a compact, all-in-one UniFi OS Console designed for home and small office use. It combines a high-performance router, WiFi 6 access point, and network security gateway, delivering seamless connectivity and advanced networking features in a sleek, user-friendly package.

SPECIFICATIONS

• Model: UDR
• Dimensions: 218 x 150 x 44 mm (8.58 x 5.91 x 1.73″)
• Weight: 0.9 kg (2.0 lb)
• Enclosure Material: Plastic
• Processor: Quad-core ARM Cortex-A57 at 1.7 GHz
• System Memory: 2 GB DDR4
• Networking Interfaces:
  • (1) 1 GbE RJ45 WAN port
  • (4) 1 GbE RJ45 LAN ports
• WiFi Standards: 802.11ax (WiFi 6)
• WiFi Throughput:
  • 5 GHz: 2.4 Gbps
  • 2.4 GHz: 574 Mbps
• MIMO:
  • 5 GHz: 4×4 MU-MIMO
  • 2.4 GHz: 2×2 MU-MIMO
• Max TX Power:
  • 5 GHz: 23 dBm
  • 2.4 GHz: 23 dBm
• Wireless Security: WPA3 Personal, WPA3 Enterprise
• Power Input: 100–240V AC, 0.5A, 50/60 Hz
• Power Consumption: 20W max
• Management Interface: Ethernet, Bluetooth
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• Integrated UniFi Network Application
• Routing Performance: 1 Gbps with IDS/IPS enabled
• Advanced Security:
  • Stateful Firewall
  • Application-Aware Layer 7 Firewall
  • Deep Packet Inspection (DPI)
  • Intrusion Detection and Prevention System (IDS/IPS)
• WiFi 6 Support for faster speeds and greater capacity
• VPN Support:
  • Site-to-Site VPN: IPsec, OpenVPN
  • Remote Access VPN Server
• Networking Features:
  • Managed 4-Port Gigabit Switch
  • VLAN Support
  • QoS and Bandwidth Management
  • Guest Network
  • IPv6 Support

MANAGEMENT REQUIREMENTS

• UniFi Network Version 7.2 and later
• Managed via UniFi Network Controller (local or cloud hosted)
