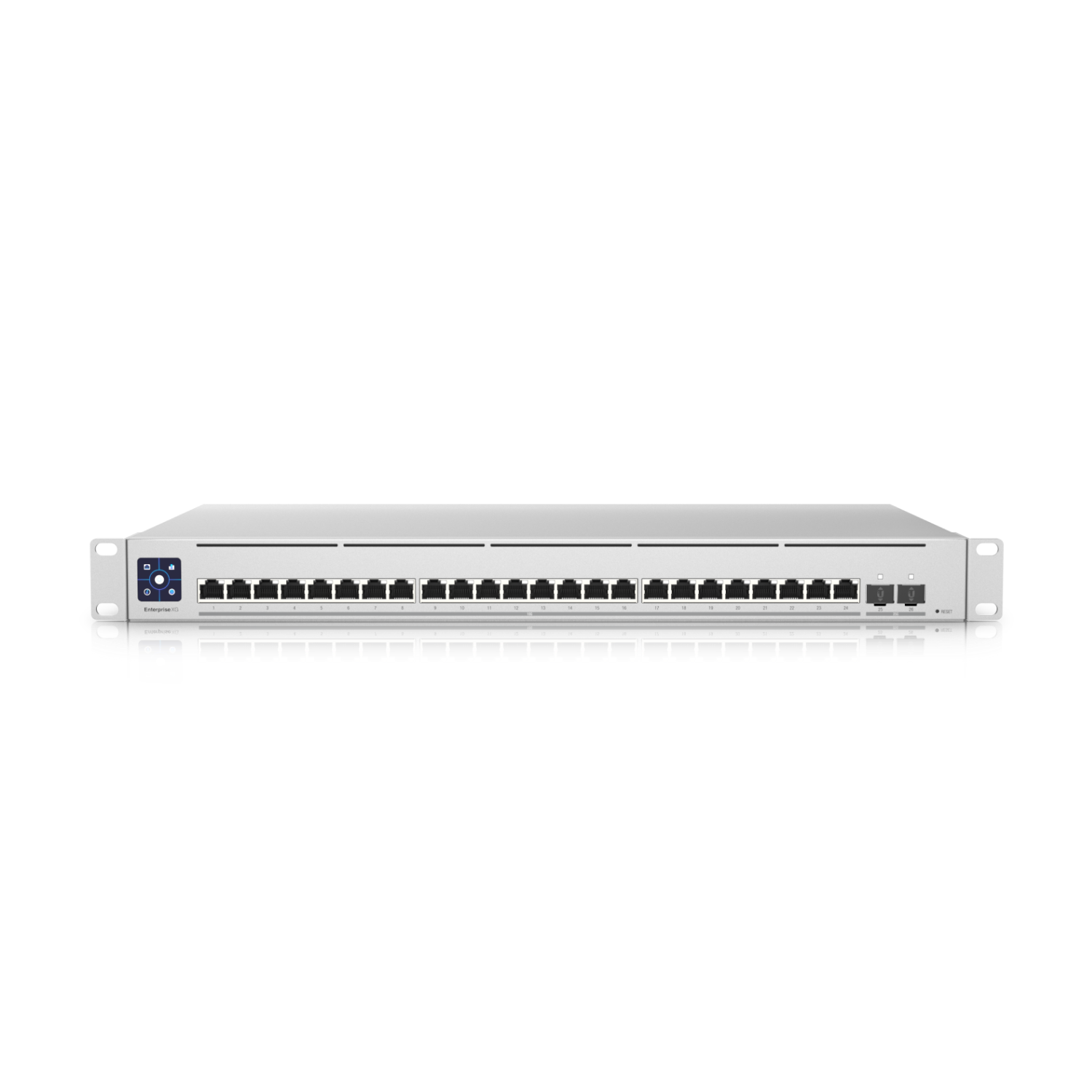

Ubiquiti UniFi Switch Enterprise XG 24 (USW-EnterpriseXG-24)

←
Get Your Custom Quote!

The Ubiquiti UniFi Switch Enterprise XG 24 (USW-EnterpriseXG-24) is a powerful 24-port 10G managed switch designed for enterprise-grade networks requiring ultra-high throughput, advanced management features, and robust PoE capabilities.

SPECIFICATIONS

• Model: USW-EnterpriseXG-24
• Dimensions: 442 x 285 x 43.7 mm (17.4 x 11.2 x 1.72″)
• Weight: 5.6 kg (12.35 lb)
• Enclosure Material: Metal
• Networking Interfaces:
  • (24) 10G SFP+ ports
  • (2) 1G RJ45 ports
• Switching Capacity: 480 Gbps
• Forwarding Rate: 357.14 Mpps
• PoE Budget: None (non-PoE switch)
• Power Input: 100–240V AC, 2A, 50/60 Hz
• Power Consumption: Max 110W
• Operating Temperature: 0 to 45°C (32 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• 24 x 10G SFP+ Ports for ultra-high-speed connectivity
• 2 x 1G RJ45 Ports for flexible network options
• High Switching Capacity supporting heavy traffic loads
• Advanced Layer 2 and Layer 3 Features:
  • VLANs, Link Aggregation, Spanning Tree Protocol
  • QoS, IGMP Snooping, and Multicast Support
• Robust Security: Access Control Lists (ACLs), DHCP Snooping
• Managed via UniFi Network Controller for centralized management

MANAGEMENT REQUIREMENTS

• UniFi Network Version 7.0 and later
• Managed via UniFi Network Controller (local or cloud hosted)
