Ubiquiti UniFi Switch Flex XG (USW-Flex-XG)

←
Get Your Custom Quote!

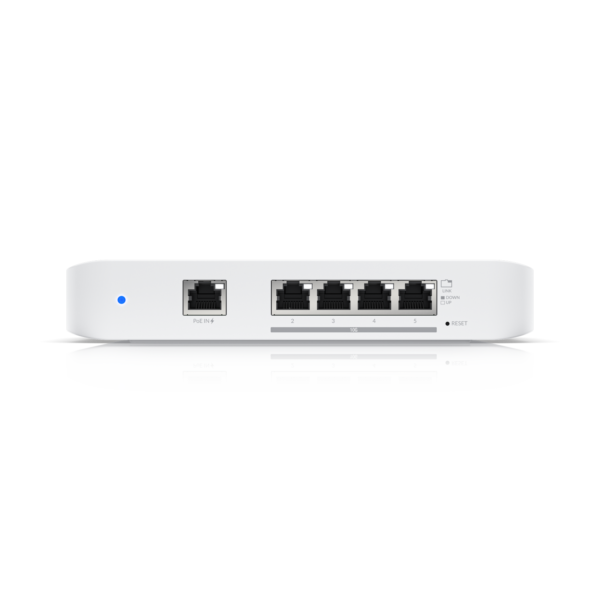

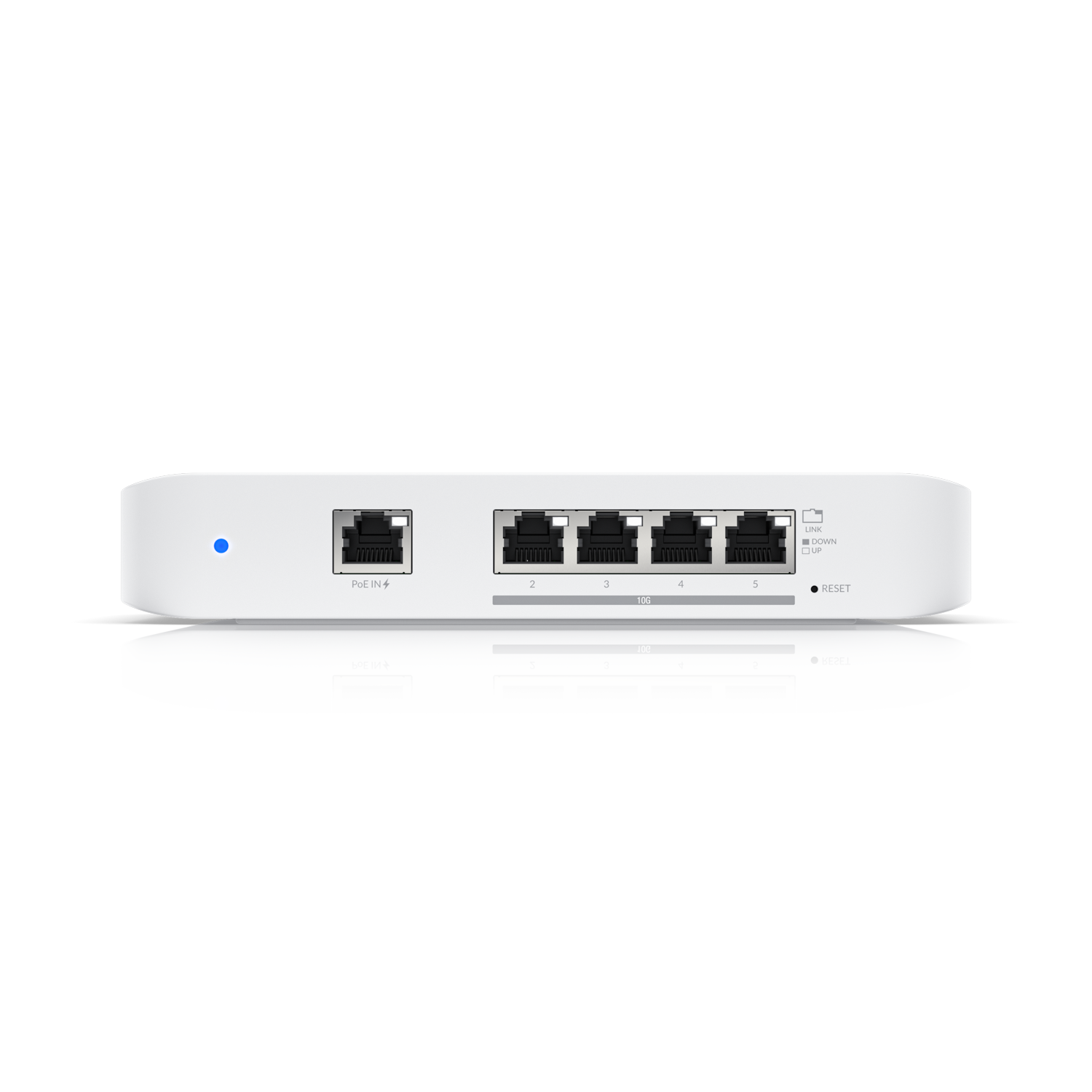

The Ubiquiti UniFi Switch Flex XG (USW-Flex-XG) is a compact, high-performance 10G Ethernet switch offering flexible deployment options with multiple 10G ports. Ideal for small to medium-sized networks requiring 10G uplinks and reliable connectivity.

SPECIFICATIONS

• Model: USW-Flex-XG
• Dimensions: 187 x 87 x 30 mm (7.36 x 3.43 x 1.18″)
• Weight: 0.77 kg (1.7 lb)
• Enclosure Material: Aluminum
• Networking Interfaces:
  • (4) 10G RJ45 ports
• Switching Capacity: 80 Gbps
• Forwarding Rate: 59.52 Mpps
• Power Input: 56V DC, 0.5A (via included PoE adapter)
• Power Consumption: Max 24W
• Operating Temperature: -10 to 45°C (14 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• Compact 4-Port 10G RJ45 Switch
• Fanless Design for silent operation
• Flexible Mounting Options: desktop, wall, or rackmount
• Seamless Integration with UniFi Network Controller
• PoE Powered with included adapter

MANAGEMENT REQUIREMENTS

• UniFi Network Version 6.0 and later
• Managed via UniFi Network Controller (local or cloud hosted)
