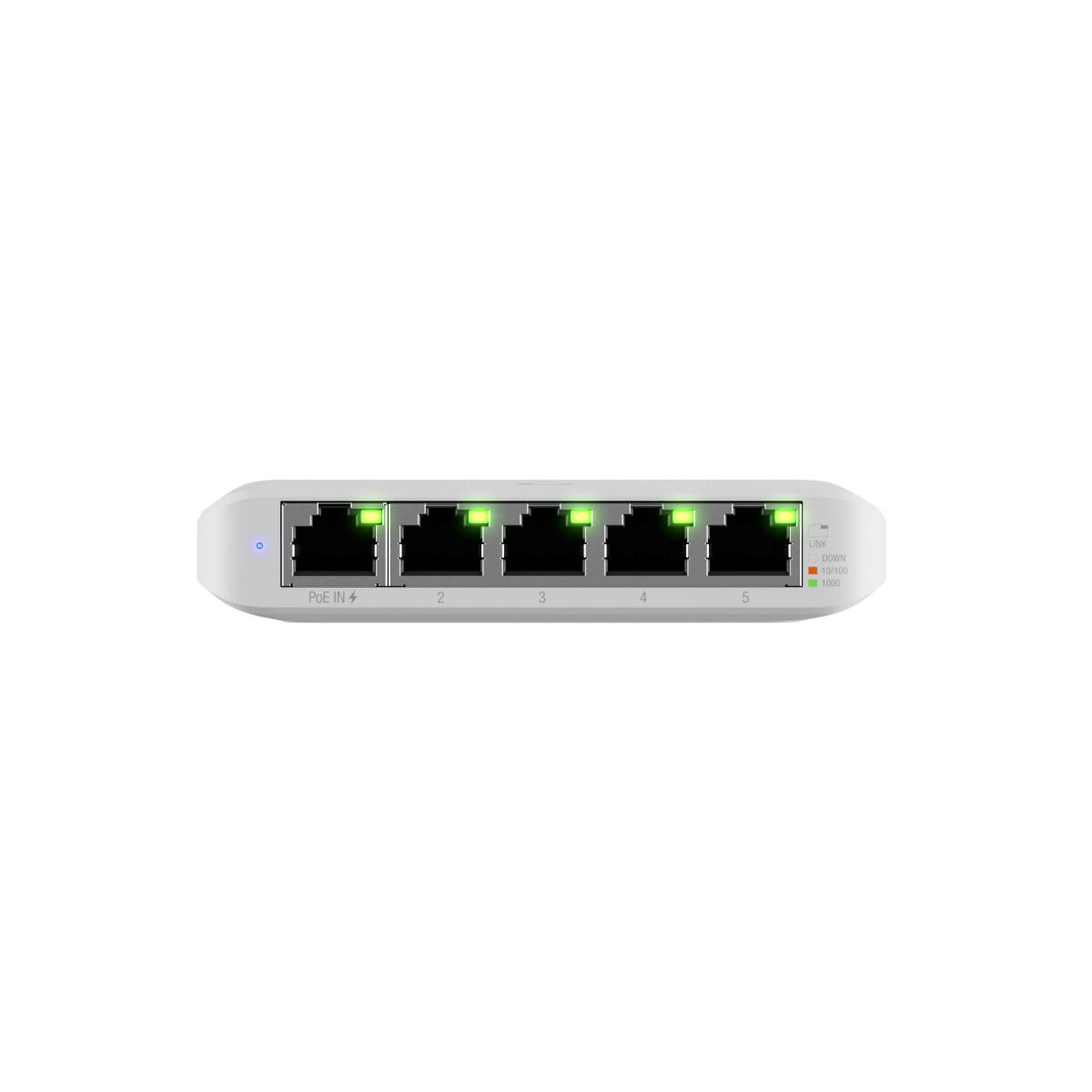

Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini)

←
Get Your Custom Quote!

The Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini) is a compact, fanless, unmanaged Gigabit switch designed for small networks and simple plug-and-play expansion. It offers flexible mounting options and seamless integration with UniFi Network for easy management.

SPECIFICATIONS

• Model: USW-Flex-Mini
• Dimensions: 110 x 88.5 x 22.5 mm (4.33 x 3.48 x 0.89″)
• Weight: 0.17 kg (0.37 lb)
• Enclosure Material: Plastic
• Networking Interfaces:
  • (5) 1 GbE RJ45 ports
• Power Input: 5V DC, 1A (via USB-C or PoE pass-through)
• Power Consumption: 3W max
• Operating Temperature: -10 to 45°C (14 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• Compact and Fanless Design for silent operation
• Unmanaged Plug-and-Play simplicity
• PoE Pass-Through Support to power other devices
• Flexible Mounting Options: desktop, wall, or under-desk mounting
• Seamless Integration with UniFi Network for monitoring

MANAGEMENT REQUIREMENTS

• UniFi Network Controller (optional for monitoring)

*Note: 5V USB-C adapter not included.
