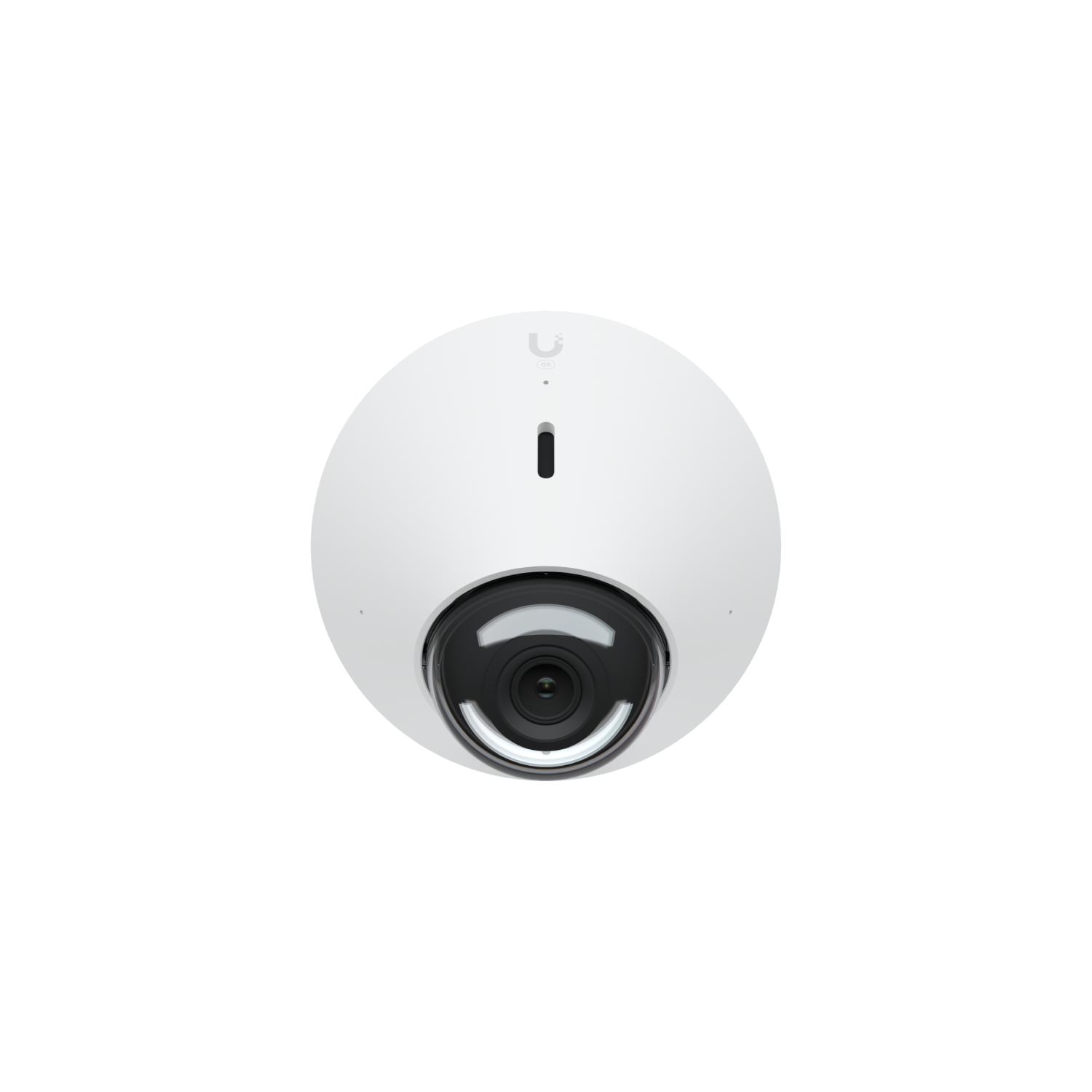

Ubiquiti UniFi Protect G4 Dome (UVC-G4-DOME)

←
Get Your Custom Quote!

The Ubiquiti UniFi Protect G4 Dome (UVC-G4-DOME) is a compact, weather-resistant, and vandal-resistant dome camera designed for indoor and outdoor surveillance. It captures high-quality 4MP video at 24 FPS and features integrated infrared LEDs for clear night vision. With its built-in microphone and speaker, the G4 Dome supports two-way audio communication. Seamlessly integrating with the UniFi Protect system, it offers advanced video analytics and flexible mounting options for various environments.

SPECIFICATIONS

• Model: UVC-G4-DOME
• Dimensions: Ø109.2 x 64.5 mm (Ø4.3 x 2.5″)
• Weight: Without mount: 370 g (13.05 oz); With mount: 390 g (13.76 oz)
• Enclosure Material: Aluminum alloy, polycarbonate, hard-coated dome
• Mount Material: Polycarbonate, stainless steel
• Mounting: Wall, ceiling mount (Included); Junction box, arm mount (Optional)
• Weatherproofing: IPX4-rated for indoor and outdoor use
• Vandal Resistance: IK08-rated
• Networking Interface: (1) 10/100/1000 Mbps RJ45 port
• Management Interface: UniFi Protect application (web and mobile)
• Sensor: 5MP CMOS sensor
• Lens: Fixed focal length
• Field of View: Horizontal: 102.4°, Vertical: 71.4°, Diagonal: 134.3°
• Night Mode: Built-in IR LED illumination with IR cut filter; up to 9 m (30 ft) range
• Video Compression: H.264
• Resolution: 2688 x 1512 (16:9)
• Max. Frame Rate: 24 FPS
• Image Settings: Brightness, contrast, sharpness, saturation, noise reduction, 50/60 Hz
• Microphone: Yes (can be disabled in software)
• Speaker: Yes
• Max. Power Consumption: 5W
• Power Method: 802.3af PoE
• Supported Voltage Range: 44–57V DC
• Operating Temperature: -20 to 40°C (-4 to 104°F)
• Operating Humidity: 0 to 90% noncondensing
• Certifications: CE, FCC, IC
• Smart Detections: AI-powered detection of people, vehicles, and animals
