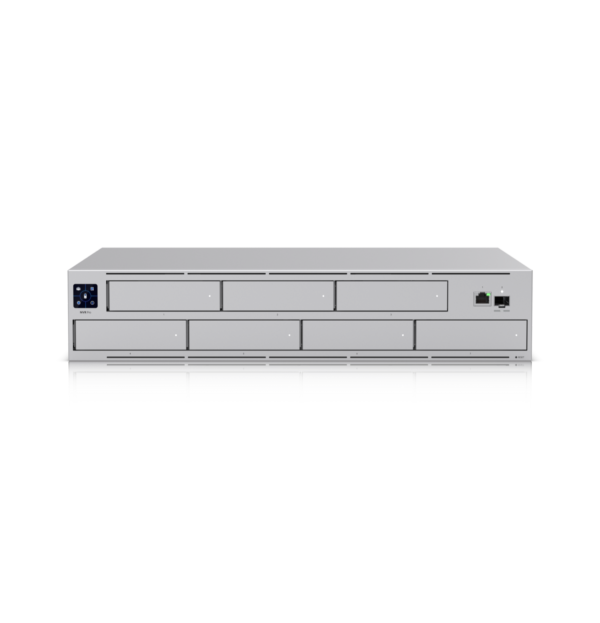

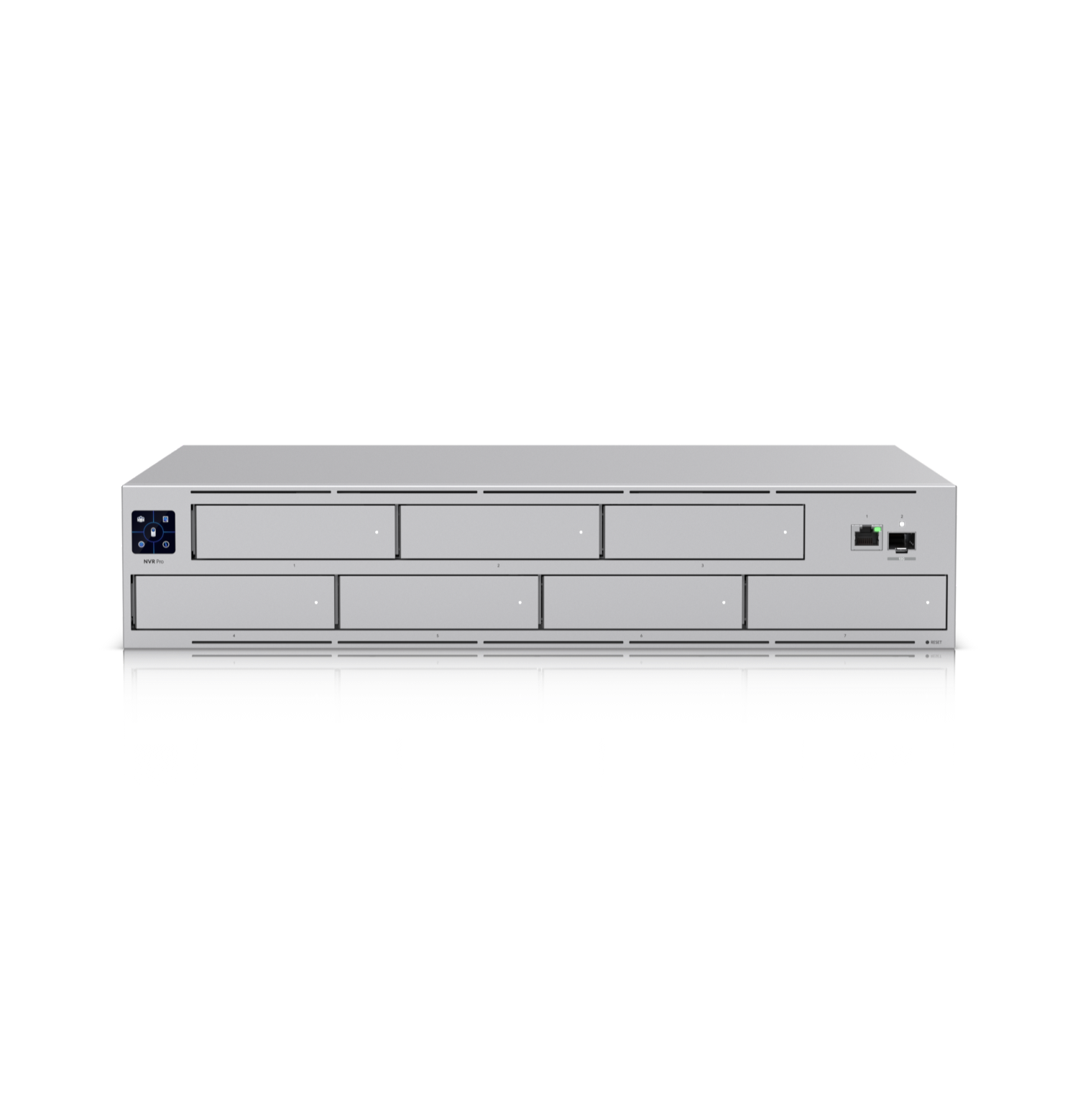

Ubiquiti UniFi Network Video Recorder Pro (UNVR-PRO)

←
Get Your Custom Quote!

The Ubiquiti UniFi Network Video Recorder Pro (UNVR-PRO) is a high-performance, rackmountable 2U NVR designed for seamless integration with the UniFi Protect system. It offers scalable storage, advanced RAID configurations, and robust networking capabilities, making it ideal for enterprise-grade surveillance deployments.

SPECIFICATIONS

• Model: UNVR-PRO
• Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4″)
• Weight: 9.2 kg (20.3 lb) without mounting brackets; 9.5 kg (20.8 lb) with mounting brackets
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Form Factor: 2U rackmountable (mounting kit included)
• Networking Interfaces: (1) 10G SFP+ port, (1) Gigabit Ethernet (RJ45) port
• Management Interface: In-band Ethernet
• Bluetooth: v4.1 for easy setup with UniFi Protect application
• Display: 1.3″ touchscreen with video event preview
• Processor: Quad-core ARM Cortex-A57 at 1.7 GHz
• Memory: 8 GB
• Storage: (7) 2.5″/3.5″ HDD/SSD bays (drives not included)
• RAID Support: RAID 1, 5, or 10 configurations
• Max. Power Consumption: 160W
• Max. Power Budget for Drives: 135W
• Power Supply: Internal AC/DC, 200W
• Power Input: Universal AC input, 100–240V AC, 3A Max., 50/60 Hz; USP-RPS DC input, 11.5V DC, 13.91A
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
• ESD/EMP Protection: Air: ±12kV, Contact: ±8kV
