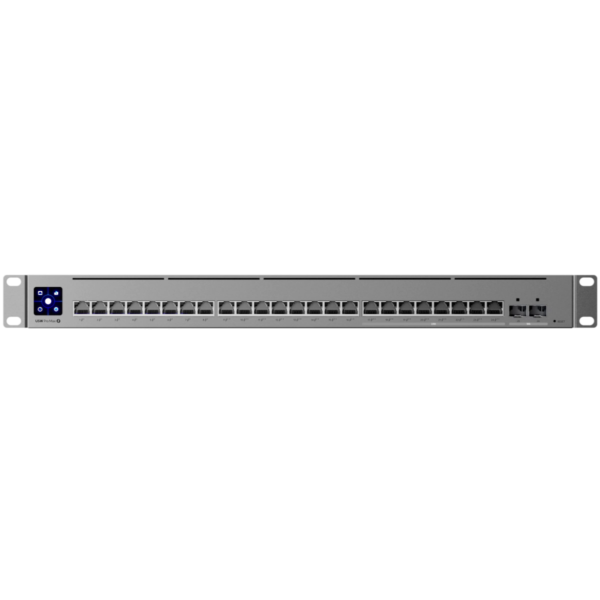

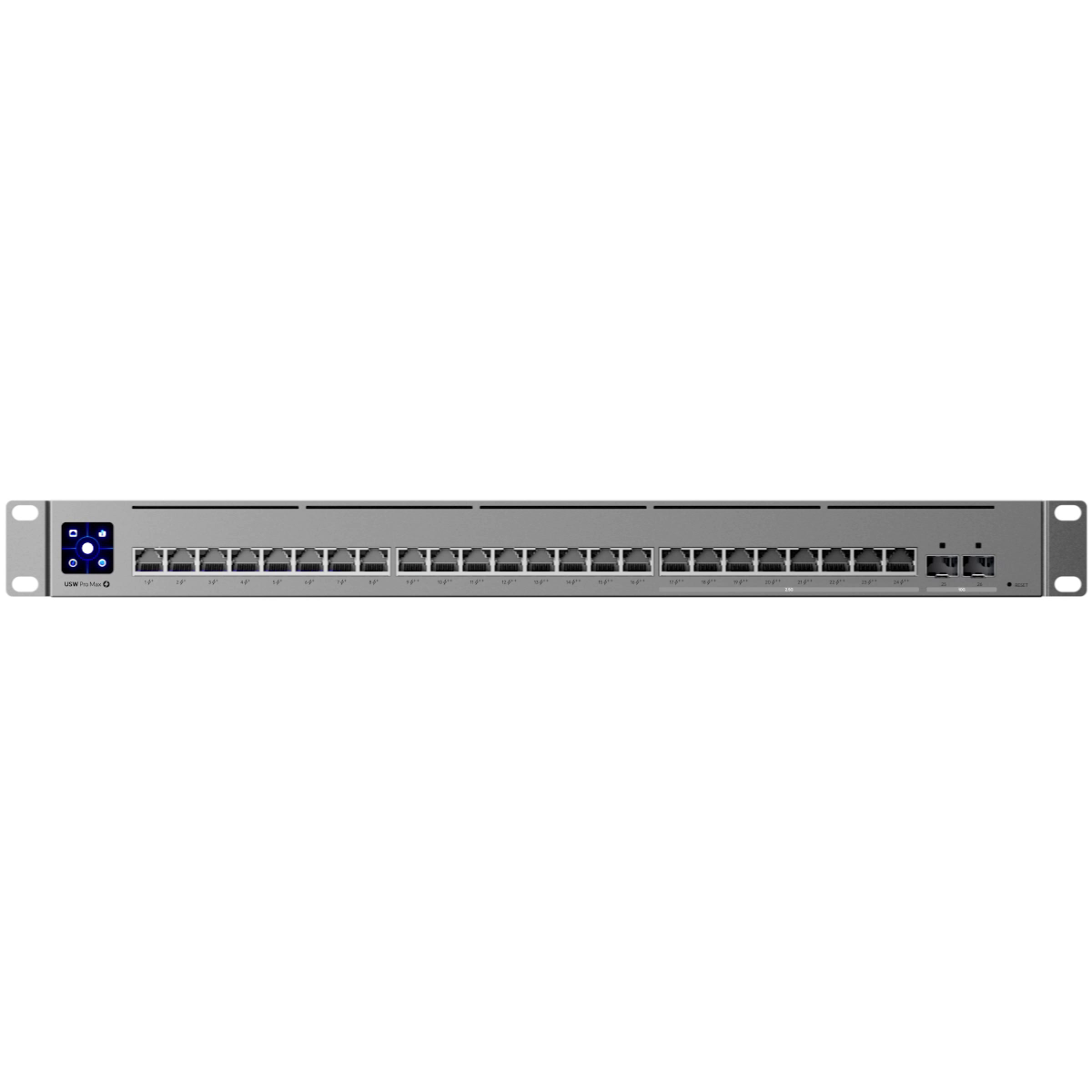

Ubiquiti UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE)

←
Get Your Custom Quote!

The Ubiquiti UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE) is a versatile Layer 3 switch featuring 24 PoE-enabled Gigabit ports and four high-performance 25G SFP28 uplinks. It’s engineered for high-speed enterprise networks and delivers reliable power and connectivity in a compact 1U form factor.

SPECIFICATIONS

• Model: USW-Pro-Max-24-PoE
• Dimensions: 442.4 x 325 x 43.7 mm (17.42 x 12.8 x 1.72″)
• Weight: 4.8 kg (10.58 lb)
• Enclosure Material: Metal
• Networking Interfaces:
  • (24) 10/100/1000 RJ45 Ports with PoE
  • (4) 25G SFP28 Uplink Ports
• PoE Budget: 400W
• Power Input: 100–240V AC, 50/60Hz
• Max Power Consumption: 460W
• Switching Capacity: 200 Gbps
• Forwarding Rate: 148.8 Mpps
• Cooling: Active cooling with variable-speed fans
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• 24 x 1G RJ45 Ports with PoE (802.3af/at) for powering access points, cameras, and VoIP
• 4 x 25G SFP28 Uplink Ports for high-speed backbone connectivity
• Layer 3 Capabilities: Static routing, inter-VLAN routing
• Advanced Network Features:
  • VLAN, QoS, Link Aggregation
  • IGMP Snooping, DHCP Snooping, ACLs
• Touchscreen Display for easy monitoring and diagnostics
• UniFi Network Integration: Seamless management via UniFi Controller

MANAGEMENT REQUIREMENTS

• UniFi Network Version 8.0 or later
• Managed via UniFi Controller (cloud-based or on-premise)
