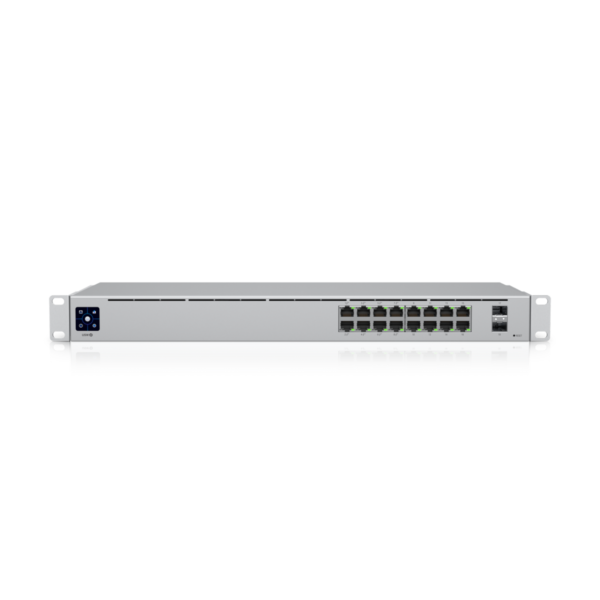

Ubiquiti UniFi Switch Standard 16 PoE (USW-16-PoE)

←
Get Your Custom Quote!

The Ubiquiti UniFi Switch Standard 16 PoE (USW-16-PoE) is a fully managed Layer 2 switch with 16 Gigabit RJ45 ports, including 12 auto-sensing 802.3af PoE ports. It is designed for small to medium networks requiring reliable PoE power delivery and seamless UniFi integration.

SPECIFICATIONS

• Model: USW-16-PoE
• Dimensions: 295 x 185 x 43.7 mm (11.61 x 7.28 x 1.72″)
• Weight: 2.5 kg (5.5 lb)
• Enclosure Material: SGCC Steel
• Networking Interfaces:
  • (16) 10/100/1000 RJ45 Ports
  • (12) 802.3af PoE Ports
  • (2) 1G SFP Ports
• PoE Budget: 80W
• Power Method: AC Input: 100–240VAC, 50/60Hz
• Max. Power Consumption: 90W
• Switching Capacity: 32 Gbps
• Forwarding Rate: 23.81 Mpps
• Cooling: Fan(s)
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• 12 x PoE Ports: Supports 802.3af to power devices such as access points and IP cameras
• 1G SFP Uplink Ports: Flexible fiber uplink options
• Layer 2 Switching Features: VLAN, link aggregation, port isolation, and QoS
• UniFi Network Integration: Centralized control and monitoring via UniFi Controller
• Compact Rack-Mountable Design: Fits standard 1U rack space

MANAGEMENT REQUIREMENTS

• UniFi Network Version 5.12.11 or later
• Managed via UniFi Network Controller (cloud or on-premises)
