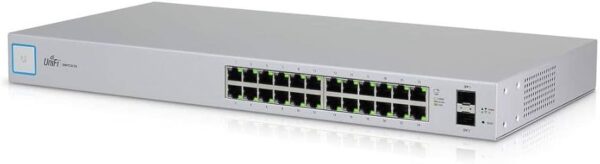

Ubiquiti UniFi Switch 24 (US-24)

←
Get Your Custom Quote!

The Ubiquiti UniFi Switch 24 (US-24) is a fully managed Layer 2 switch with 24 Gigabit RJ45 ports and fiber uplink capabilities. Ideal for expanding your network, it seamlessly integrates with the UniFi Controller for centralized configuration and monitoring.

SPECIFICATIONS

• Model: US-24
• Dimensions: 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.23″)
• Weight: 3.7 kg (8.16 lb)
• Enclosure Material: SGCC Steel
• Networking Interfaces:
  • (24) 10/100/1000 RJ45 Ports
  • (2) 1G SFP Ports
• PoE: None (Non-PoE switch)
• Power Method: AC Input: 100–240VAC, 50/60Hz
• Max. Power Consumption: 25W
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Cooling: Fanless
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• 24 x Gigabit RJ45 Ports: Fast Ethernet connectivity
• 2 x SFP Ports: Fiber uplink for extended networking
• Layer 2 Management: VLANs, QoS, link aggregation
• UniFi Controller Integration: Centralized configuration and monitoring
• Rack-Mountable: Standard 1U size

MANAGEMENT REQUIREMENTS

• UniFi Network Version 5.12.11 or later
• Managed via UniFi Controller (local or cloud-hosted)
