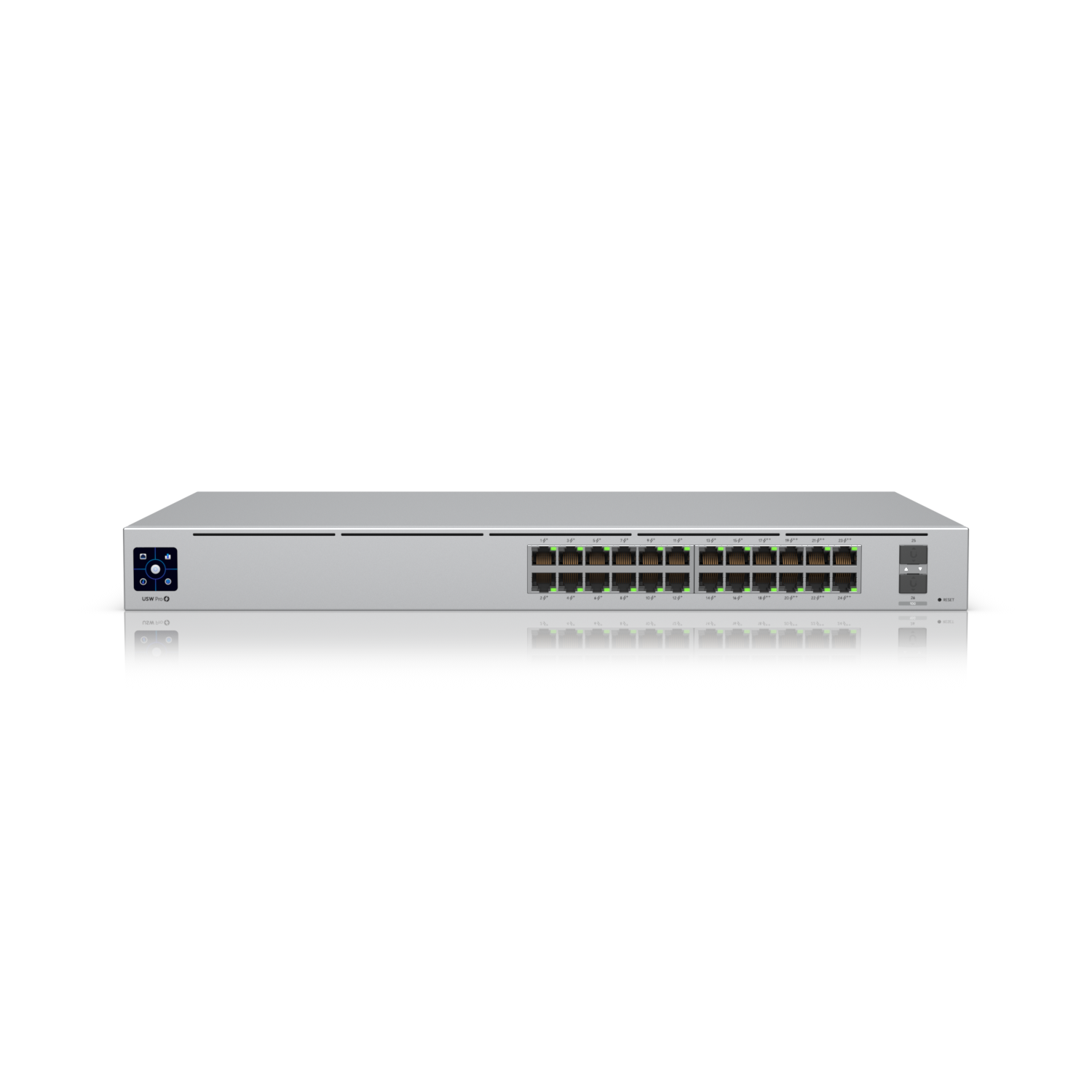

Ubiquiti UniFi Switch Standard 24 PoE (USW-24-PoE)

←
Get Your Custom Quote!

The Ubiquiti UniFi Switch Standard 24 PoE (USW-24-PoE) is a fully managed Layer 2 switch featuring 24 Gigabit RJ45 ports, including 16 auto-sensing 802.3af PoE ports. It offers reliable PoE power distribution, flexible uplink options, and seamless integration with the UniFi Controller for centralized network management.

SPECIFICATIONS

• Model: USW-24-PoE
• Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.23 x 1.72″)
• Weight: 3.8 kg (8.38 lb)
• Enclosure Material: SGCC Steel
• Networking Interfaces:
  • (24) 10/100/1000 RJ45 Ports
  • (16) 802.3af PoE Ports
  • (2) 1G SFP Ports
• PoE Budget: 95W
• Power Method: AC Input: 100–240VAC, 50/60Hz
• Max. Power Consumption: 110W
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.67 Mpps
• Cooling: Fan(s)
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• 16 x PoE Ports: Supports 802.3af for powering devices like APs and cameras
• 1G SFP Uplink Ports: Flexible uplink connectivity options
• Layer 2 Switching Features: VLAN, port isolation, link aggregation, and more
• UniFi Controller Integration: Centralized network management and monitoring
• Rack-Mountable: 1U form factor for easy integration in server racks

MANAGEMENT REQUIREMENTS

• UniFi Network Version 5.12.11 or later
• Managed via UniFi Network Controller (cloud or local)
