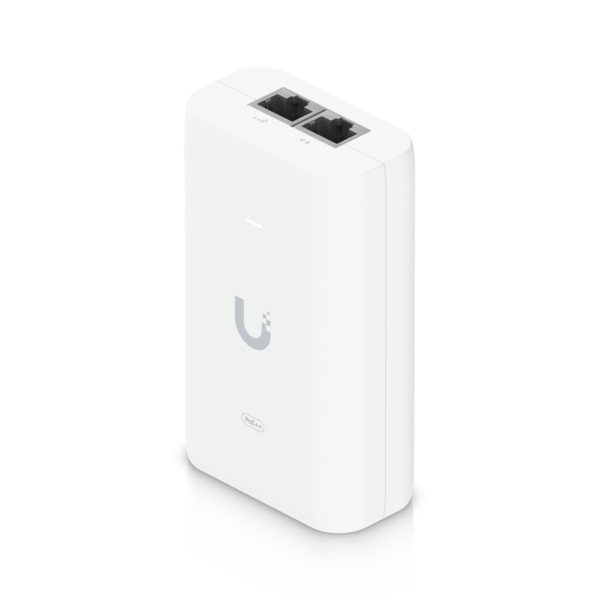

Ubiquiti UniFi PoE++ Adapter (60W)

←
Get Your Custom Quote!

High-power PoE++ adapter designed to deliver up to 60W of power for UniFi devices requiring IEEE 802.3bt (Type 3) support. Ideal for powering high-performance access points, cameras, and switches without the need for a PoE switch.

SPECIFICATIONS

• Model: U-PoE++
• Output Voltage: 48V DC @ 1.25A
• Input Voltage: 100–240V AC @ 50/60Hz
• Max. PoE Power: 60W
• Power Method: 4-pair powering (Pins 1, 2, 4, 5 [+] and 3, 6, 7, 8 [-])
• Ethernet Ports: 2x RJ45 Shielded (Data In / PoE Out)
• LAN Speed: Gigabit Ethernet
• AC Connector: IEC-320 C6
• Efficiency: 85%+
• Switching Frequency: 65 kHz
• Output Ripple: 1% Max.
• Line Regulation: ≤ 1%
• Load Regulation: ≤ 3%
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20 μs) Power
• Peak Pulse Current: 36A (10/1000 μs) Data
• Shunt Capacitance: <5 pF Data
• Response Time: <1 ns
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 10 to 95% Noncondensing
• Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3″)
• Weight: 210 g (7.4 oz)
• Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
