Description

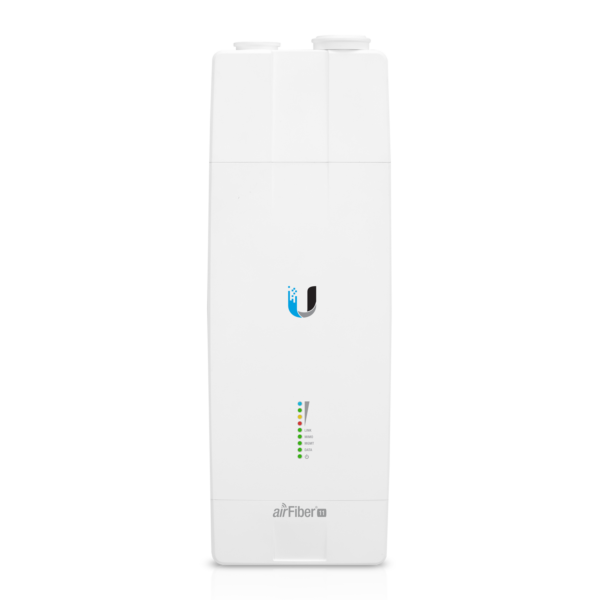

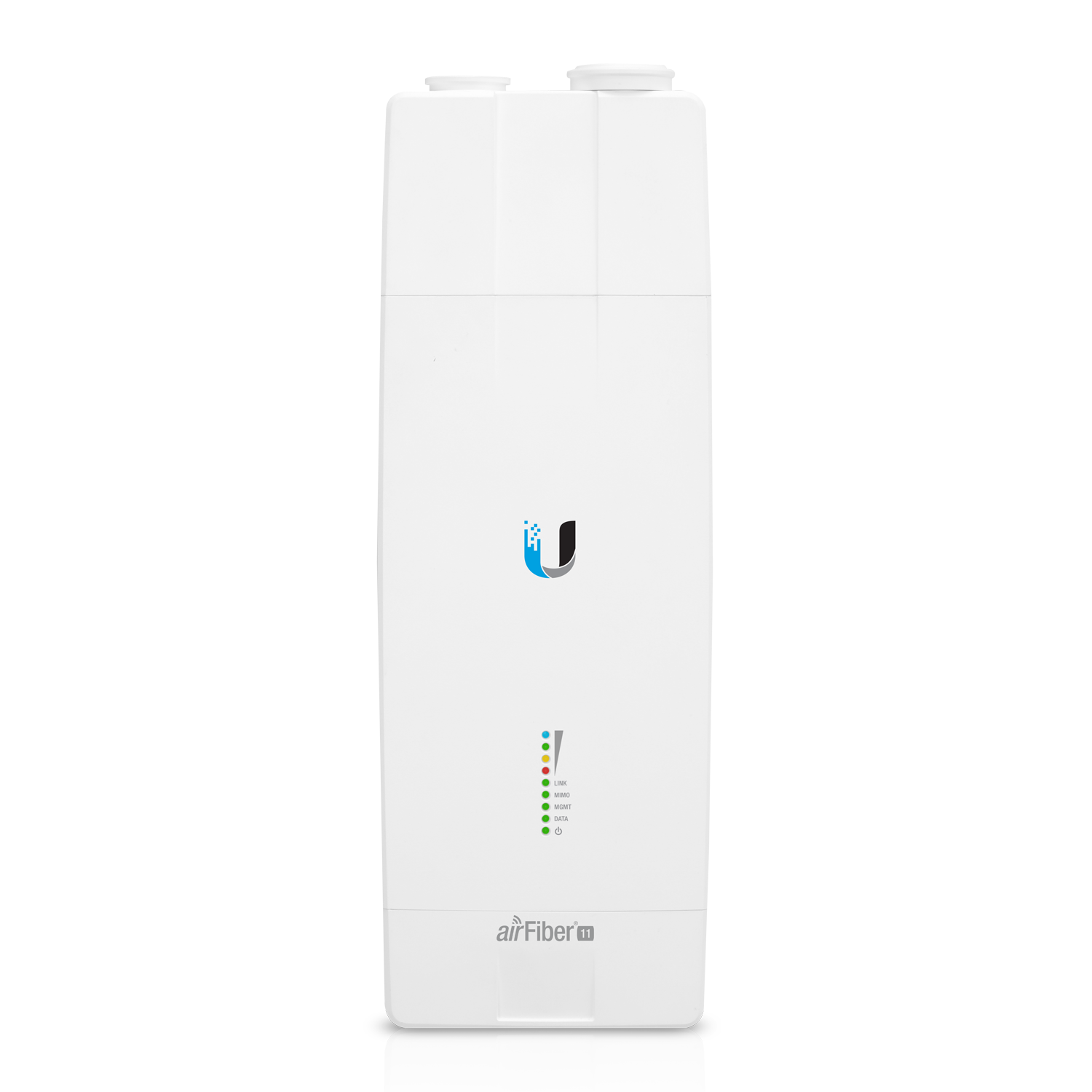

Ubiquiti AF-11-EU airFiber 11GHz Radio

←
Get Your Custom Quote!

The Ubiquiti AF-11-EU is a high-performance, full-duplex point-to-point (PtP) radio system operating in the licensed 11 GHz frequency band. Designed for carrier-class backhaul applications, it delivers ultra-low latency and high throughput, making it ideal for long-distance wireless links. The device supports both SISO and MIMO configurations and features a modular design with interchangeable duplexers for flexible frequency planning.

SPECIFICATIONS

• Operating Frequency: 10.7 – 11.7 GHz (subject to regional regulations)

• Max. Throughput: 1.2+ Gbps

• Max. Range: 300+ km

• Channel Bandwidths: Selectable 3.5/5/7/10/14/20/28/30/40/50/56 MHz

• Duplexing: Full-Duplex (FDD) with modular duplexers

• Networking Interfaces:

  • 1 × Gigabit Ethernet RJ45 port

  • 1 × 10/100 Mbps Ethernet RJ45 port

• Power Method: Passive PoE (4-pair) or direct DC terminal block

• Power Supply: 50V DC, 1.2A Gigabit PoE adapter (included)

• Supported Voltage Range: 38–56V DC

• Max. Power Consumption: 36W

• RF Connectors:

  • 4 × SMA Weatherproof (2 per chain: TX/RX)

  • 2 × N-Type Waterproof (1 per duplexer)

• Dimensions: 327 × 112 × 86 mm (12.9 × 4.4 × 3.4″)

• Weight: 2.3 kg (5 lb)

• Operating Temperature: -40 to 55° C (-40 to 131° F)
