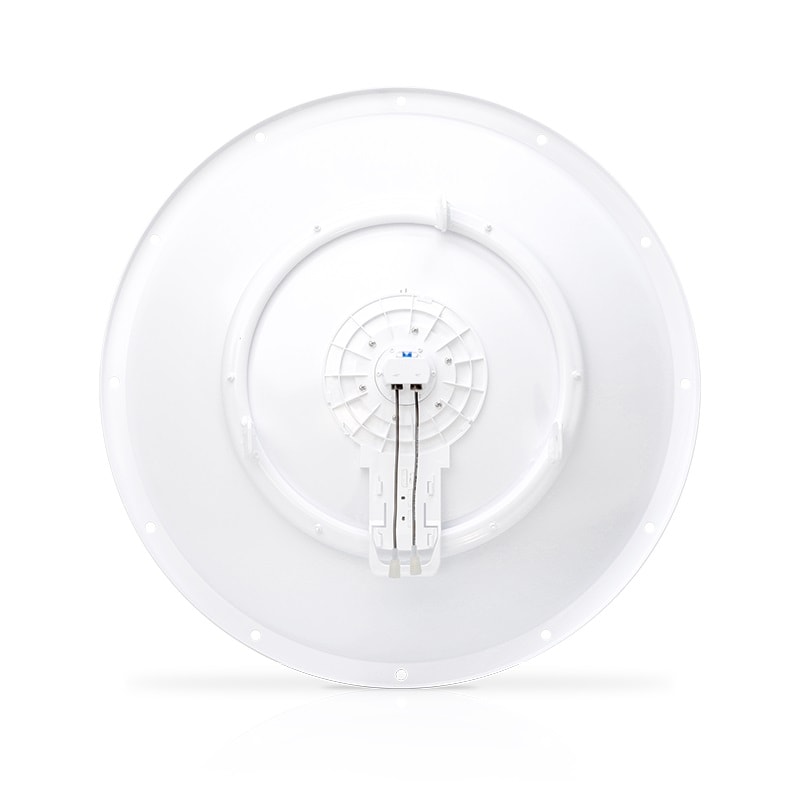

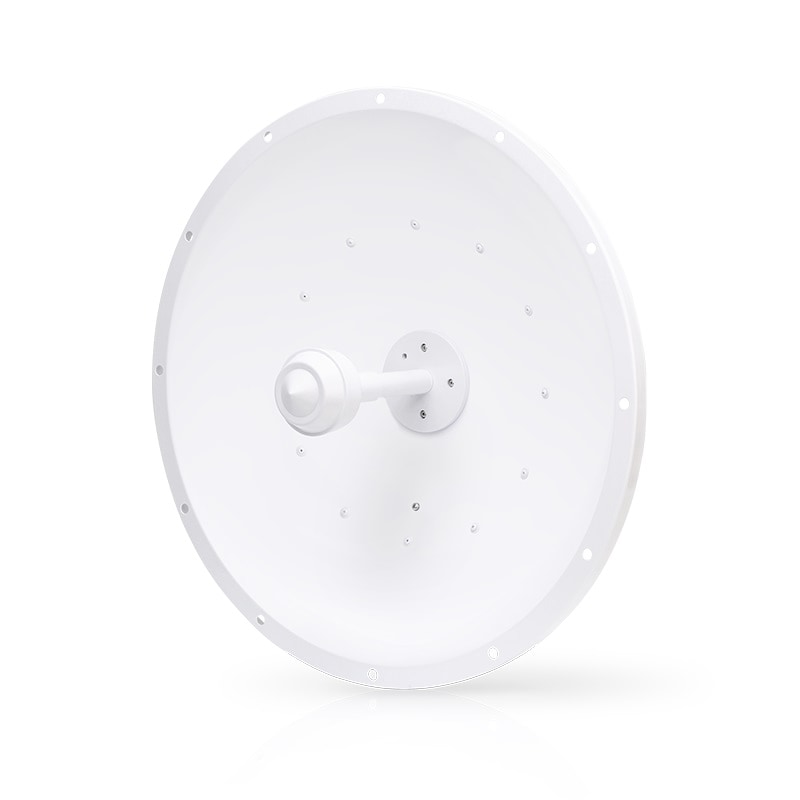

Ubiquiti AF-2G24-S45 airFiber X 2.4 GHz 24 dBi Slant 45 Antenna
←
Get Your Custom Quote!
The Ubiquiti AF-2G24-S45 is a high-performance, dual-polarity parabolic dish antenna designed for long-range Point-to-Point (PtP) wireless links in the 2.4 GHz frequency band. With a gain of 24 dBi and a 45° slant polarization, it offers improved noise immunity and signal-to-noise ratio (SNR), making it ideal for high-capacity, multipoint networks. The robust mechanical design ensures durability in outdoor environments, and it seamlessly integrates with Ubiquiti’s airFiber X radios for enhanced performance.
SPECIFICATIONS
-
Frequency Range: 2.3 – 2.7 GHz
-
Gain: 24 dBi
-
Polarization: Dual Linear (±45° Slant)
-
Beamwidth: 6.6° (3 dB)
-
Front-to-Back Ratio: 28 dB
-
Cross-Pol Isolation: 35 dB Min.
-
VSWR: 1.6:1 Max.
-
Wind Survivability: 200 km/h (125 mph)
-
Wind Loading: 787 N @ 200 km/h (177 lbf @ 125 mph)
-
Dimensions: 650 x 650 x 295 mm (25.6 x 25.6 x 11.6″)
