Ubiquiti airFiber 60 (AF60-EU)

←
Get Your Custom Quote!

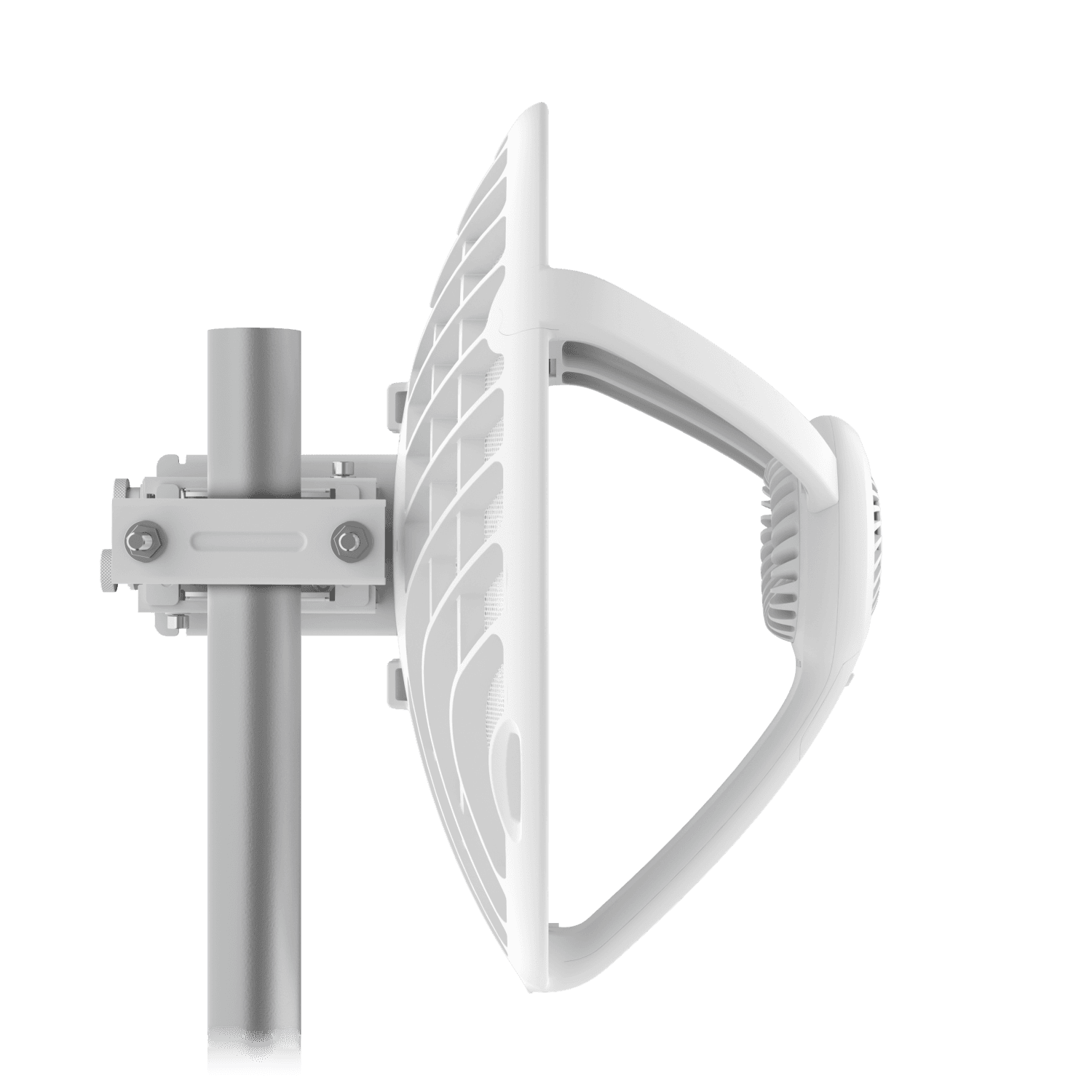

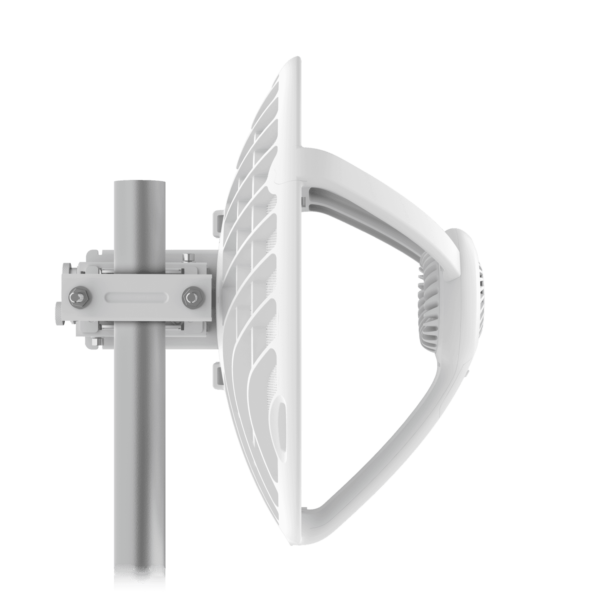

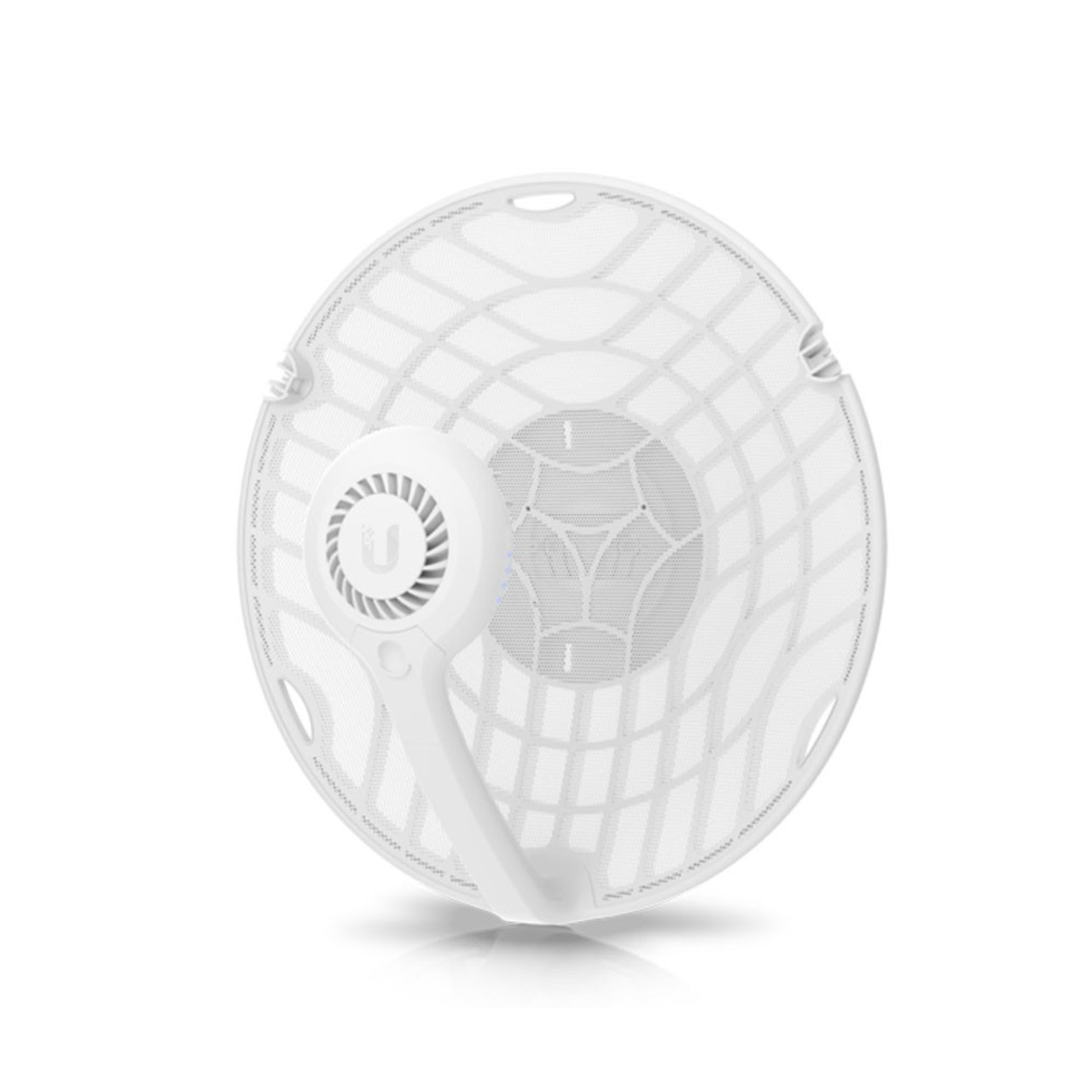

The Ubiquiti airFiber 60 (AF60-EU) is a 60 GHz radio system that provides high-throughput and low-interference point-to-point (PtP) wireless links. Designed for short-to-medium range deployments, AF60 delivers fiber-like performance over the air, and includes a 5 GHz backup radio for enhanced reliability.

SPECIFICATIONS

• Operating Frequency:

  • 60 GHz (main)

  • 5 GHz (backup link)

• Maximum Throughput:

  • Up to 1.9 Gbps

• Range:

  • Up to 2 kilometers

• Antenna Gain:

  • 38 dBi (integrated)

• Channel Bandwidths:

  • 1 GHz and 2 GHz (auto selection)

• Interface:

  • (1) Gigabit Ethernet port

• Power Supply:

  • 48V, 0.65A Gigabit PoE adapter (included)

• Power Method:

  • 4-pair passive PoE

• Power Consumption:

  • Maximum 11W

• Mounting:

  • Includes precision alignment mount

• Operating Temperature:

  • -40 to 60°C

• Humidity:

  • 5 to 95% (non-condensing)

• Weatherproofing:

  • Outdoor-rated enclosure

• Management:

  • Configurable via Bluetooth using the UISP Mobile App
