Ubiquiti airFiber 60 XG (AF60-XG-EU)

←
Get Your Custom Quote!

The Ubiquiti airFiber 60 XG (AF60-XG-EU) is a high-capacity, 60 GHz point-to-point (PtP) wireless bridge designed for multi-gigabit backhaul applications. It delivers up to 6 Gbps throughput over distances exceeding 4 km, utilizing channel bonding technology. The device features a built-in 5 GHz backup radio for redundancy, integrated GPS for precise alignment, and Bluetooth management for simplified setup via the UISP mobile app. Its robust design and advanced features make it ideal for carrier-grade deployments requiring high-speed, low-latency connectivity.

SPECIFICATIONS

• Frequency Bands: 60 GHz (primary), 5 GHz (backup)

• Maximum Throughput: Up to 6 Gbps (with channel bonding)

• Maximum Range: Over 4 km

• Antenna Gain: High-gain dish antenna (specific gain not specified)

• Networking Interfaces:

  • 1x 10G SFP+ port

  • 1x Gigabit RJ45 Ethernet port

• Processor: Quad-Core ARM Cortex A72 at 1.6 GHz

• Memory: 2 GB DDR4

• Power Input: Passive PoE (48V, 0.65A)

• Power Consumption: Maximum 31.2W

• Dimensions: 779 x 664 x 383 mm (30.68 x 26.14 x 15.06″)

• Weight: 8.6 kg (without mount), 13 kg (with mount)

• Enclosure Material: UV-stabilized polycarbonate and steel

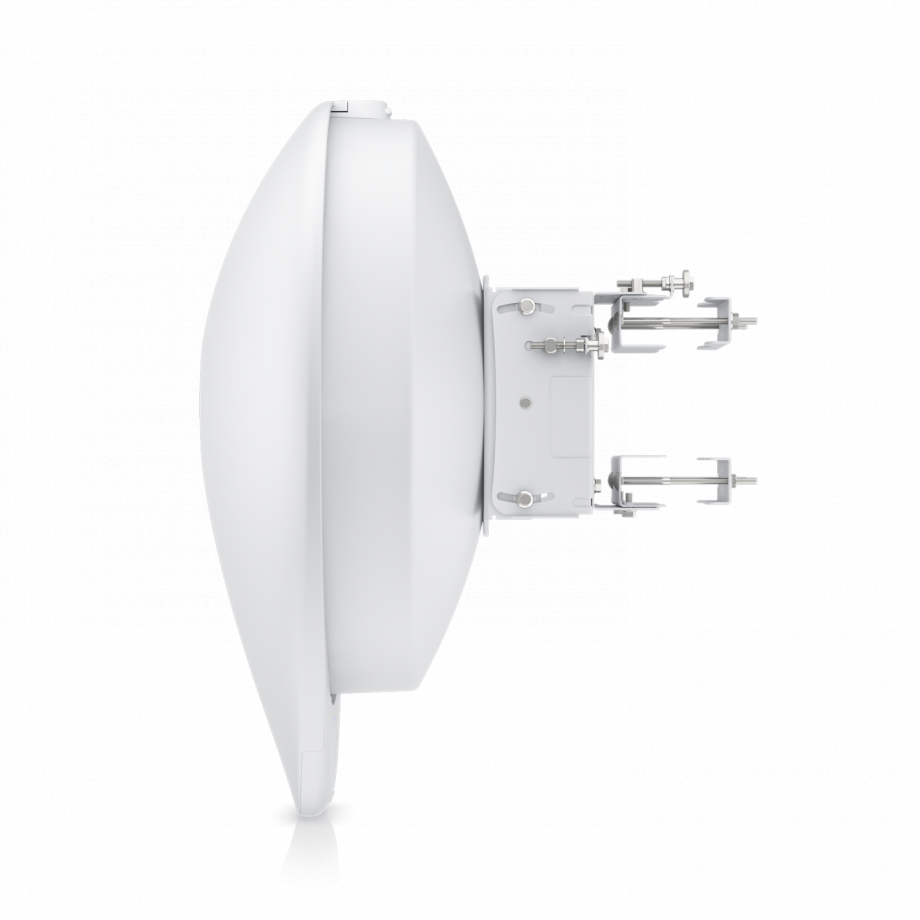

• Mounting: Precision alignment kit included; compatible with poles of Ø40 to 80 mm (Ø1.5 to 3.15″)

• Operating Temperature: -40°C to 55°C

• Management: Bluetooth setup via UISP mobile app; integrated GPS
