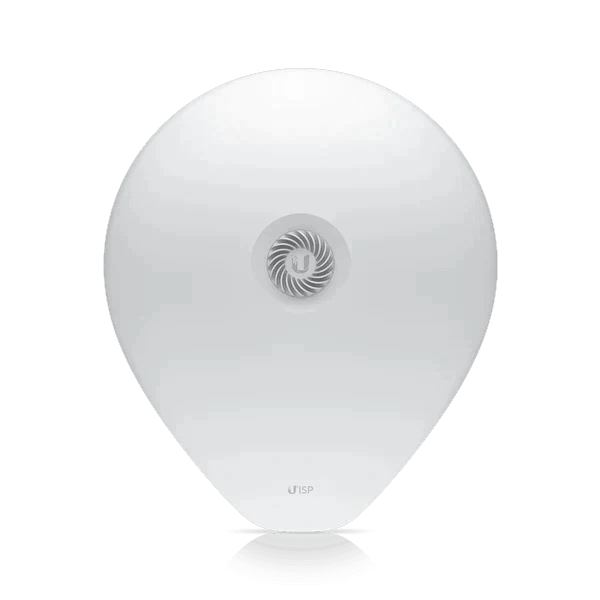

Ubiquiti airFiber 60 XR (AF60-XR)

←
Get Your Custom Quote!

The Ubiquiti airFiber 60 XR (AF60-XR) is a high-performance, long-range 60 GHz point-to-point (PtP) wireless bridge designed for multi-gigabit backhaul applications. It delivers up to 5.4 Gbps total throughput over distances exceeding 15 km, utilizing advanced 60 GHz radio technology. The device features a built-in 5 GHz backup radio for redundancy, integrated GPS for precise alignment, and Bluetooth management for simplified setup via the UISP mobile app. Its robust design and advanced features make it ideal for carrier-grade deployments requiring high-speed, low-latency connectivity.

SPECIFICATIONS

• Dimensions: 779 x 664 x 383 mm (30.7 x 26.1 x 15.1″)

• Weight: 8.6 kg (19 lb) without mount; 13 kg (28.7 lb) with mount

• Enclosure Material: UV-stabilized polycarbonate, steel

• Mount Material: Galvanized steel

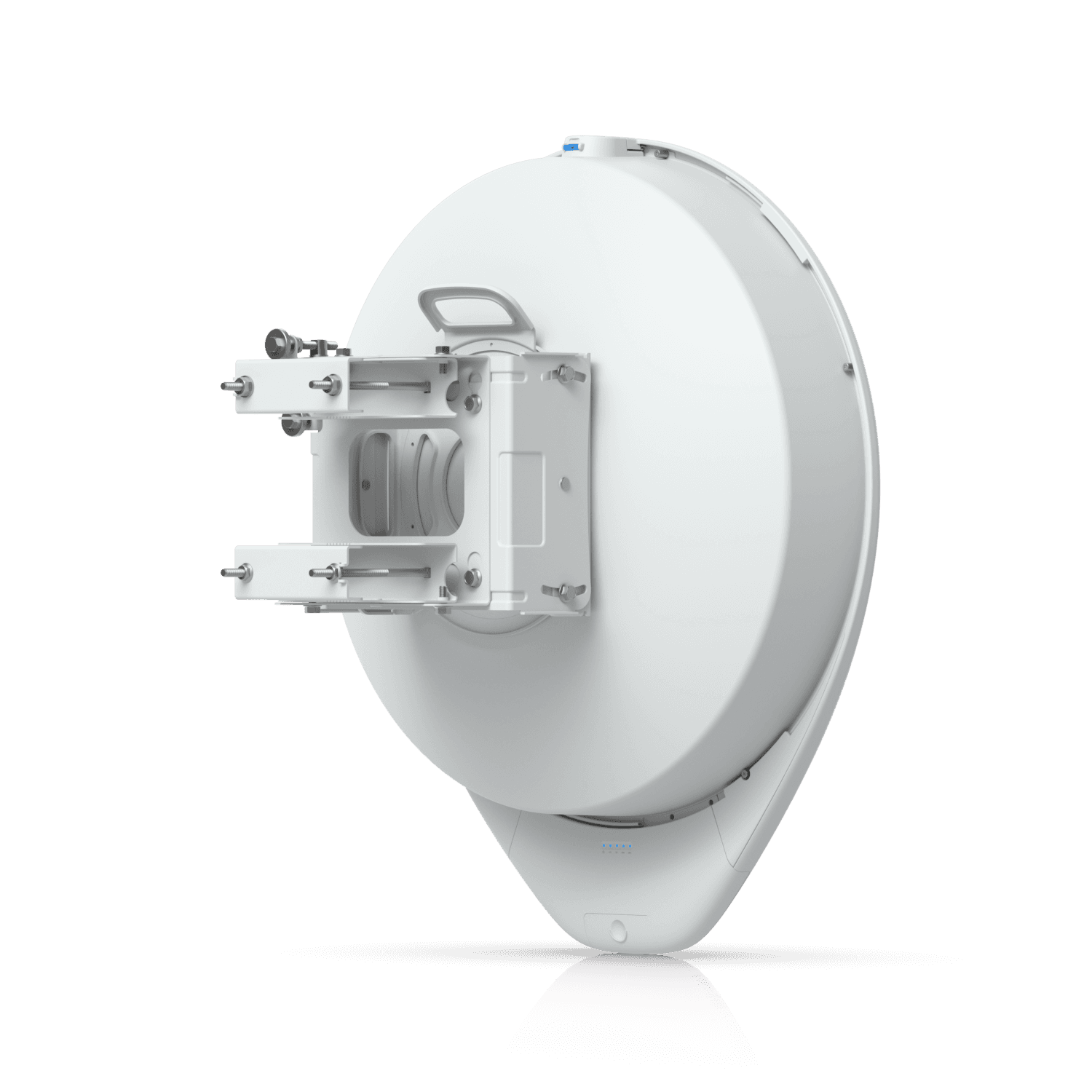

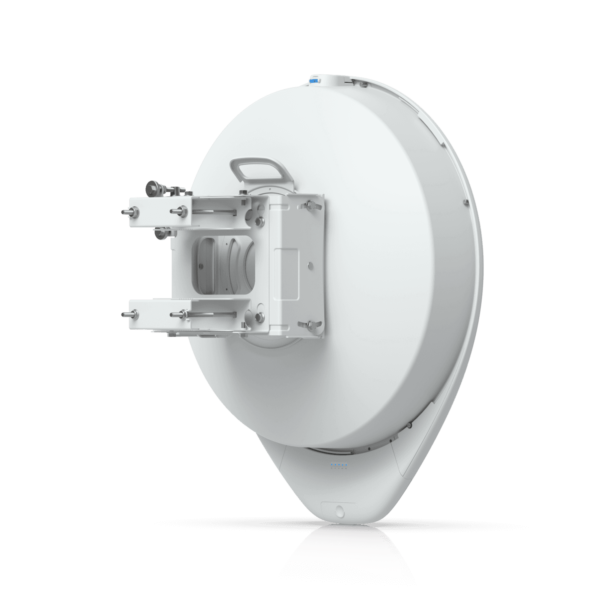

• Mounting: Precision alignment kit (included); Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15″)

• Wind Loading: 422 N at 200 km/h (94.86 lbf at 125 mph)

• Weatherproofing: IPX6
