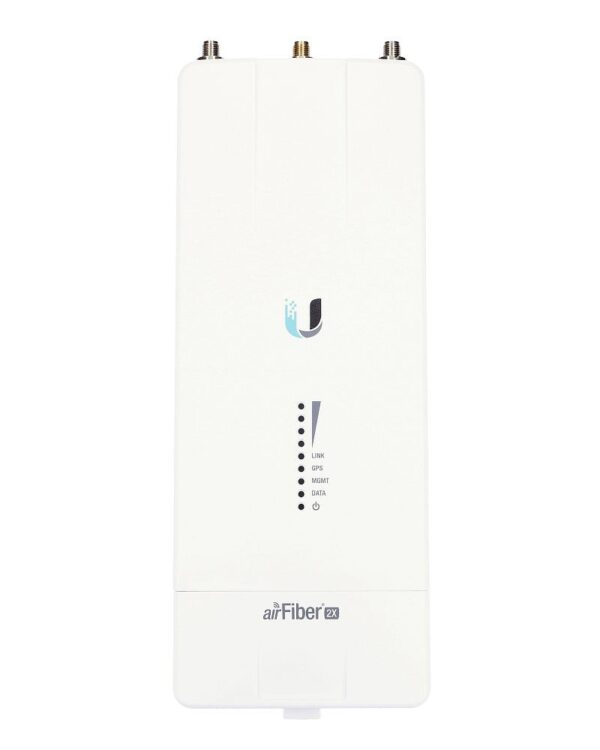

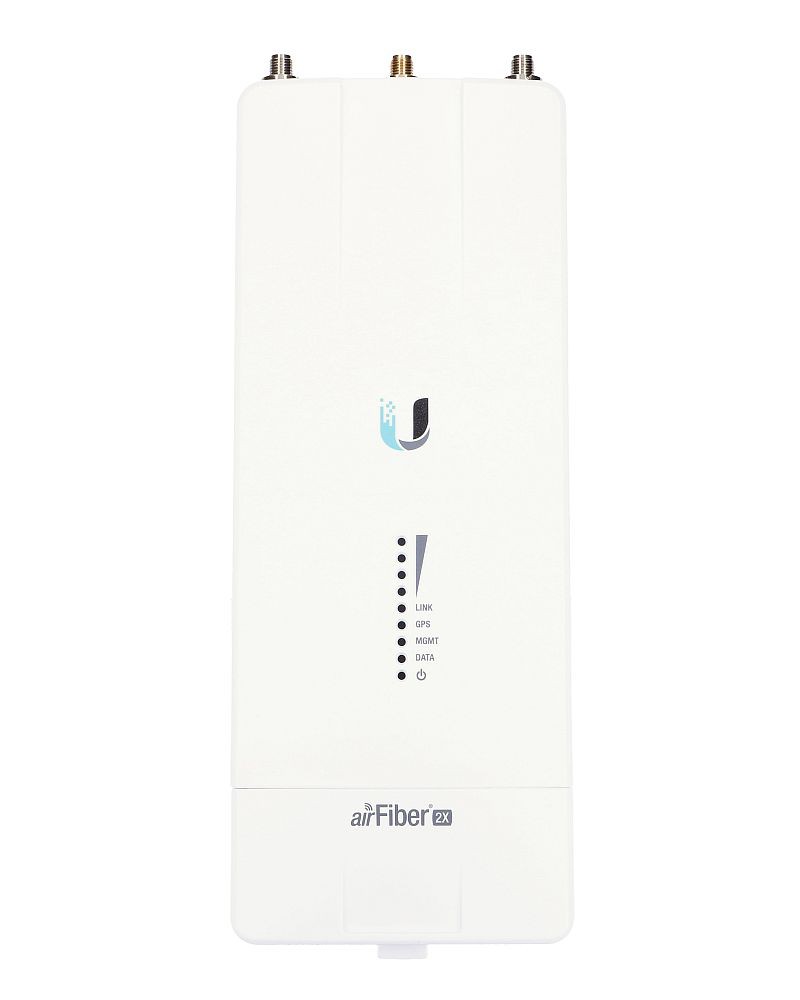

Ubiquiti airFiber AF-2X 2.4 GHz Carrier Backhaul Radio

←
Get Your Custom Quote!

The Ubiquiti airFiber AF-2X is a high-performance, modular 2.4 GHz carrier backhaul radio designed for long-range Point-to-Point (PtP) wireless links. Utilizing Ubiquiti’s proprietary Hybrid Division Duplexing (HDD) technology, it achieves low latency and high throughput, making it ideal for service providers and enterprise networks requiring robust and reliable PtP connectivity. The AF-2X is compatible with a variety of Ubiquiti antennas, including the airFiber X series, allowing for flexible deployment options.

SPECIFICATIONS

• Frequency Band: 2.4 GHz

• Throughput: Up to 525 Mbps real data throughput

• Range: Up to 200 km (124 miles)

• Modulation: QPSK, 16QAM, 64QAM, 256QAM

• Channel Bandwidths: 10/20/30/40/50 MHz

• Networking Interface: 1 x 10/100/1000 Mbps Ethernet Port

• Power Supply: 24V, 1A PoE Adapter (included)

• Max. Power Consumption: Up to 8W

• Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″)

• Weight: 0.35 kg (0.77 lb)

• Operating Temperature: -40 to 55° C (-40 to 131° F)

• Operating Humidity: 5 to 95% Noncondensing

• Mounting: Pole-Mount (Kit Included)
