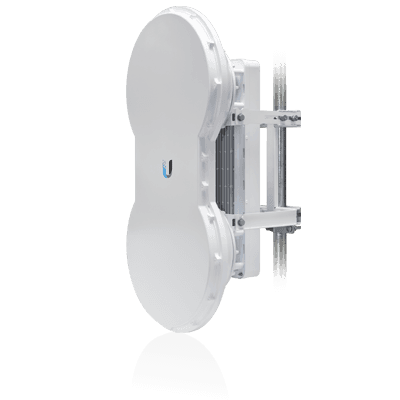

Ubiquiti airFiber AF-5
←
Get Your Custom Quote!
The Ubiquiti airFiber AF-5 is a high-performance, point-to-point wireless bridge designed for long-range, high-throughput applications. Operating in the 5 GHz mid-band frequency range, it delivers up to 1.2+ Gbps throughput and supports links over 100 km. The AF-5 is ideal for carrier backhaul, enterprise building-to-building connectivity, and public safety networks.
SPECIFICATIONS
-
Frequency Range: 5470 – 5950 MHz
-
Maximum Throughput: 1.2+ Gbps
-
Maximum Range: 100+ km (dependent on regulatory region)
-
Networking Interface: 1 x Gigabit Ethernet RJ45 port
-
Power Supply: 50V, 1.2A Gigabit PoE adapter (included)
-
Power Consumption: Up to 40W
-
Dimensions: 938.4 x 468.4 x 281.4 mm (36.9 x 18.4 x 11.1″)
-
Weight: 16 kg (35.3 lb)
-
Operating Temperature: -40 to 55°C (-40 to 131°F)
-
Certifications: CE, FCC, IC
-
Encryption: 128-Bit AES
-
Radio Frame Synchronization: GPS
