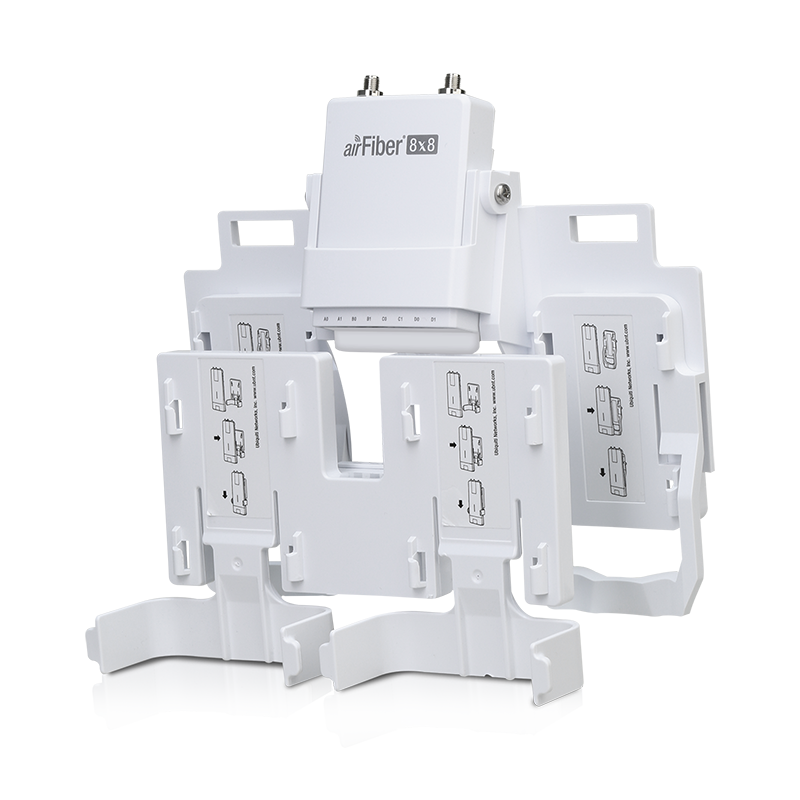

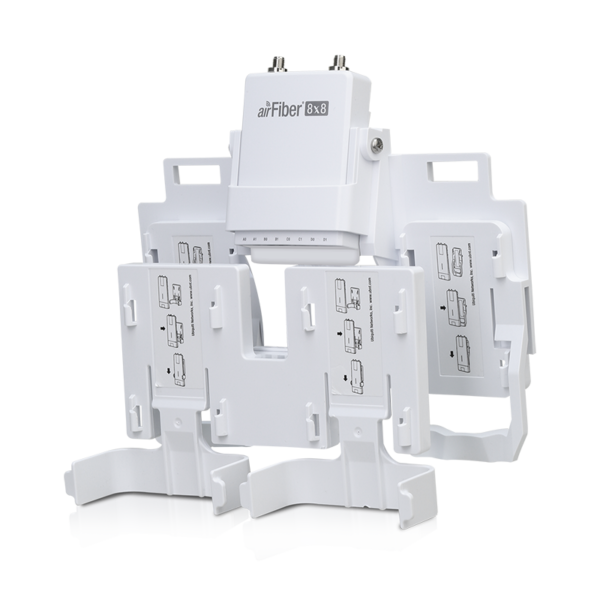

Ubiquiti airFiber AF-MPx8 – 8×8 MIMO Multiplexer

←
Get Your Custom Quote!

The AF-MPx8 enables the combination of up to four airFiber X radios on a single dish antenna, effectively increasing the throughput of your wireless link by up to 400% without the need for additional antennas. This configuration supports 8×8 MIMO backhaul technology, providing enhanced noise immunity and redundancy, which is particularly beneficial for wireless internet service providers (WISPs) and enterprise networks requiring high-throughput and reliable connectivity.

SPECIFICATIONS

• Dimensions: 210.5 x 240.9 x 109 mm (8.3 x 9.5 x 4.3″)

• Weight: 450 g (1 lb)

• RF Connectors:

  • (2) RP-SMA weatherproof (CH0, CH1)

  • (8) RP-SMA weatherproof (A0, A1, B0, B1, C0, C1, D0, D1)

• Cable Loss:

  • 4.7 GHz: 7.9 dB

  • 5 GHz: 7.2 dB

• Multiplex MIMO: 4 x (2×2)

• Mounting: Compatible with airFiber X and Rocket mounts
