Ubiquiti airFiber X 5 GHz, 30 dBi, Slant 45 Antenna (AF-5G30-S45)

←
Get Your Custom Quote!

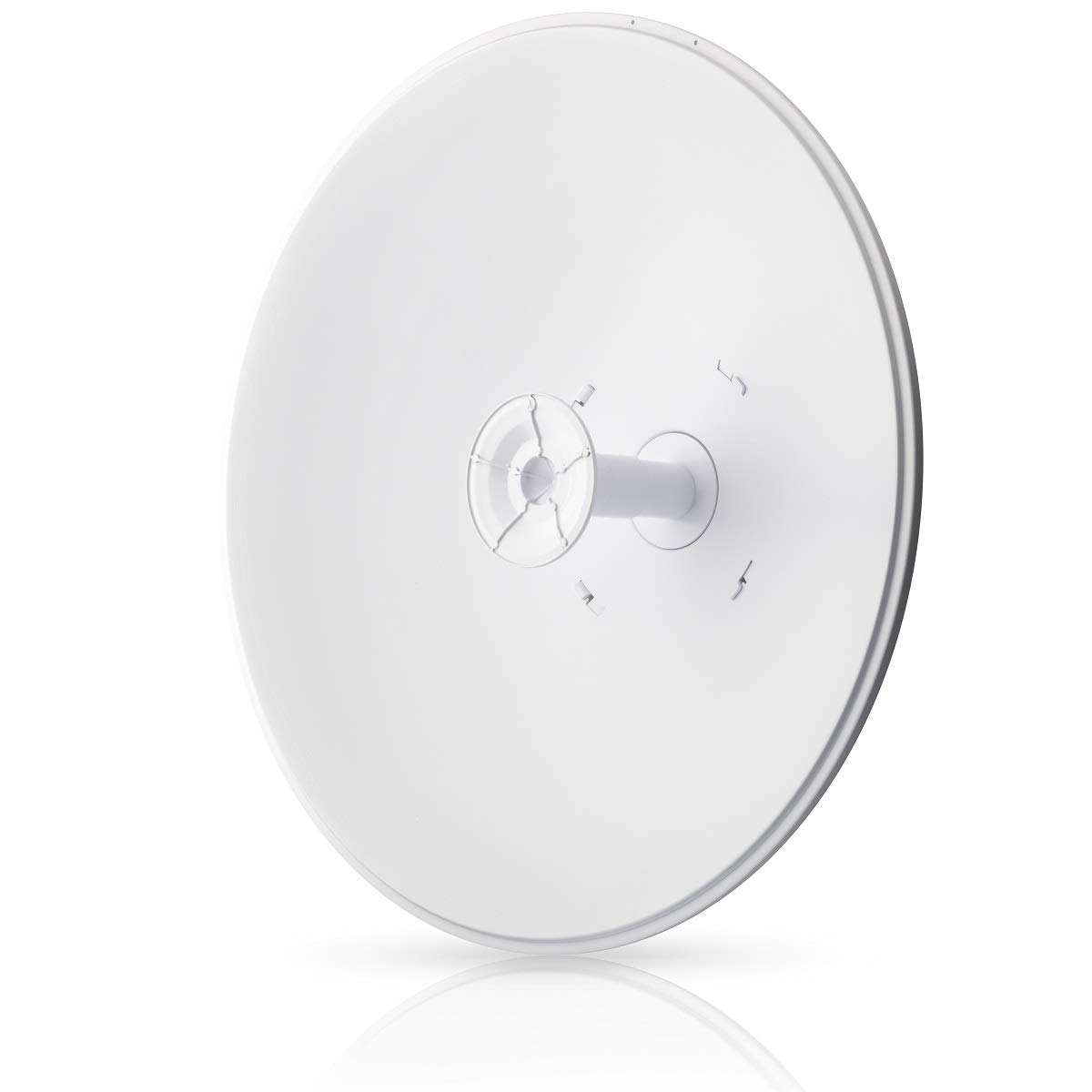

The AF-5G30-S45 is a 5 GHz directional dish antenna featuring a 30 dBi gain and Slant 45 polarization. Its design ensures high-performance connectivity over long distances, making it ideal for carrier-class backhaul applications. The antenna’s low-profile form factor reduces wind loading, and its weatherproof construction ensures durability in various environmental conditions.

SPECIFICATIONS

• Frequency Range: 5.1 – 5.9 GHz

• Gain: 30 dBi

• Polarization: Dual Slant 45°

• VSWR: 1.6:1 Max

• Front-to-Back Ratio: 30 dB

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)

• Dimensions: 650 x 650 x 386 mm (25.6 x 25.6 x 15.2″)

• Weight (with mount): 7.4 kg (16.31 lb)

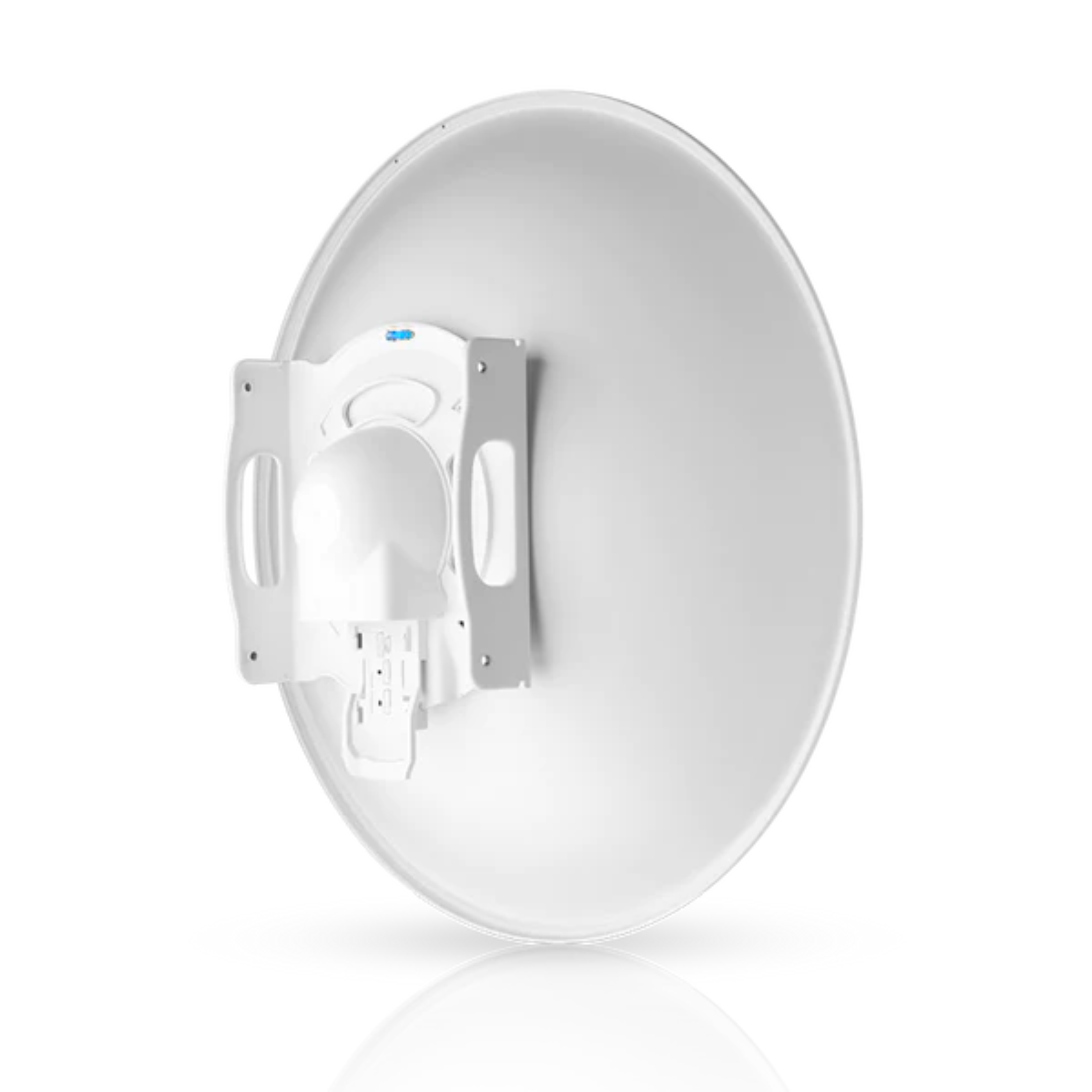

• Mounting: Universal pole mount with airFiber radio bracket and weatherproof RF jumpers included
