Description

Ubiquiti airFiber X 5 GHz, 34 dBi, Slant 45 Antenna (AF-5G34-S45)

←
Get Your Custom Quote!

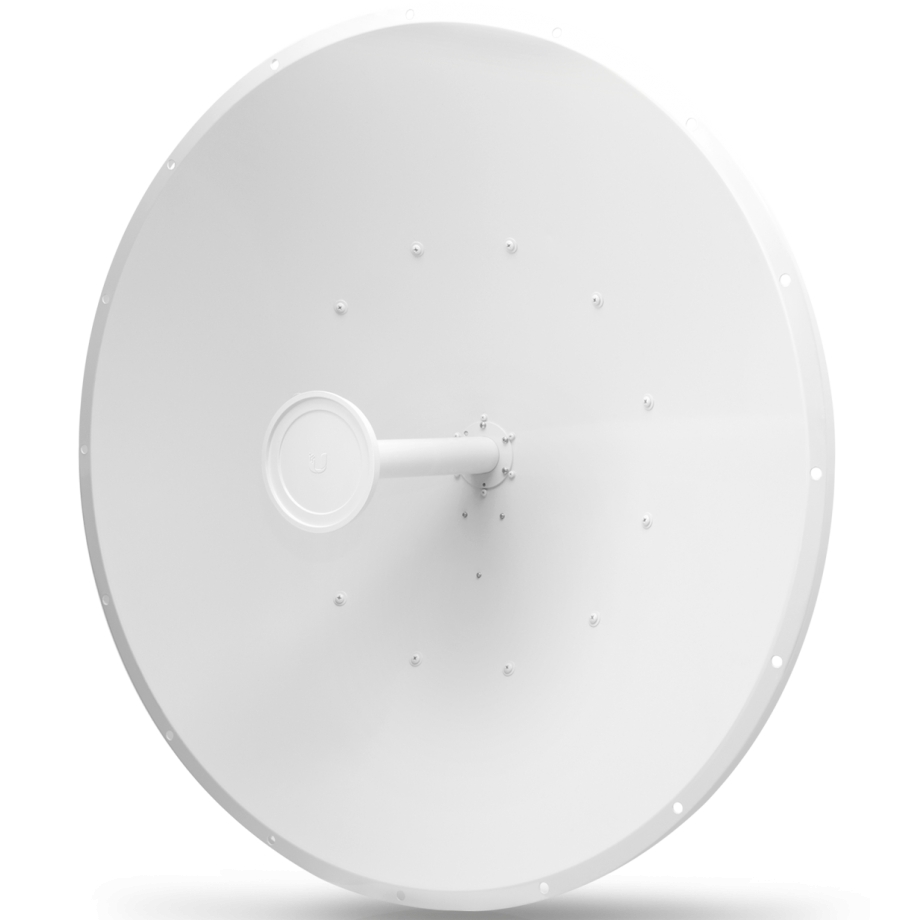

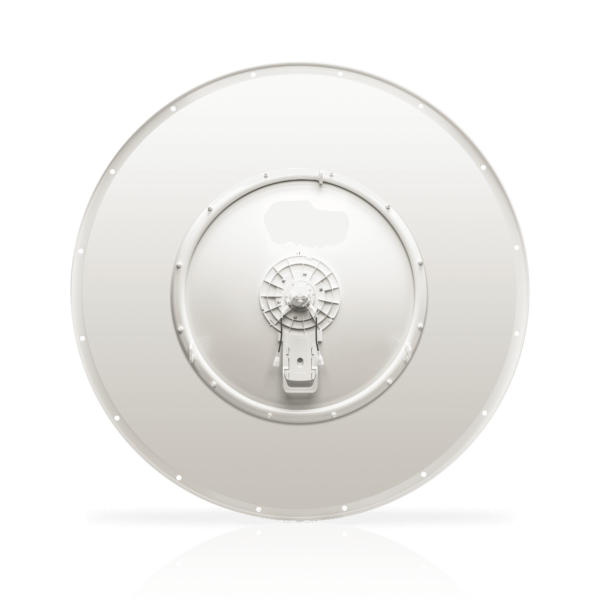

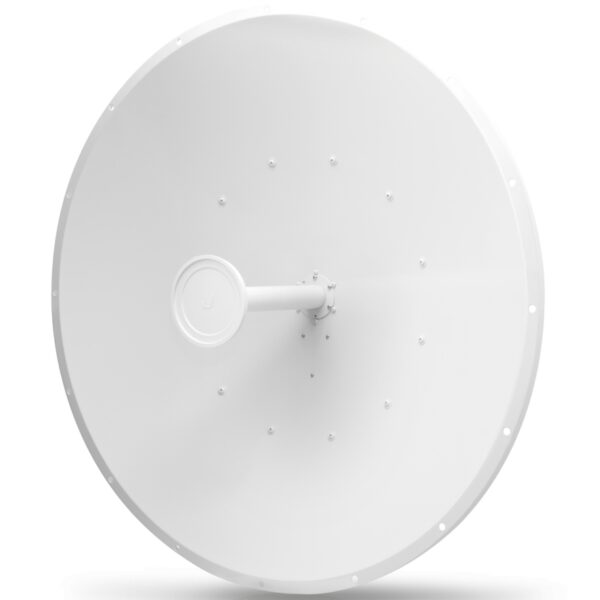

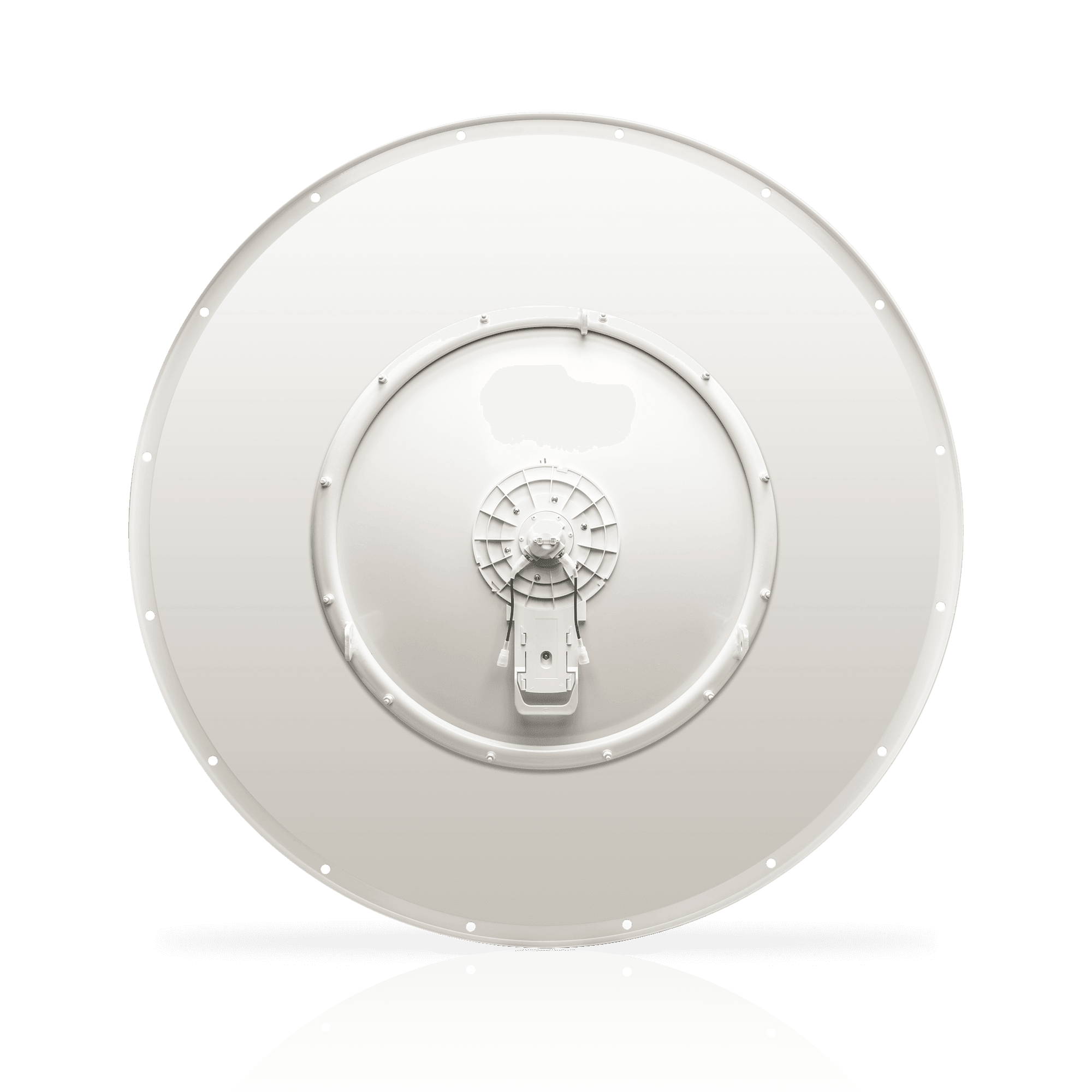

The AF-5G34-S45 is a 5 GHz directional dish antenna featuring a 34 dBi gain and Slant 45 polarization. Its design ensures high-performance connectivity over long distances, making it ideal for carrier-class backhaul applications. The antenna’s low-profile form factor reduces wind loading, and its weatherproof construction ensures durability in various environmental conditions.

SPECIFICATIONS

• Frequency Range: 5.1 – 5.8 GHz

• Gain: 34 dBi

• Polarization: Dual Slant 45°

• VSWR: 1.4:1 Max

• Front-to-Back Ratio: 42 dB

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 1,779 N @ 200 km/h (400 lbf @ 125 mph)

• Dimensions: 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57″)

• Weight (with mount): 13.5 kg (29.76 lb)

• Mounting: Universal pole mount with airFiber radio bracket and weatherproof RF jumpers included
