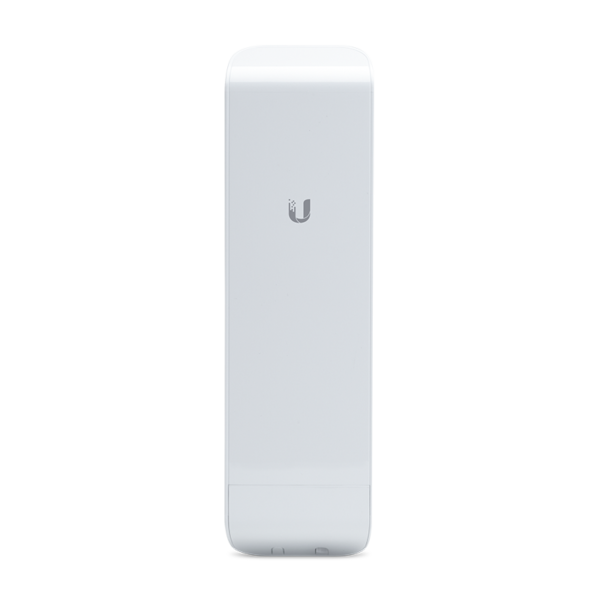

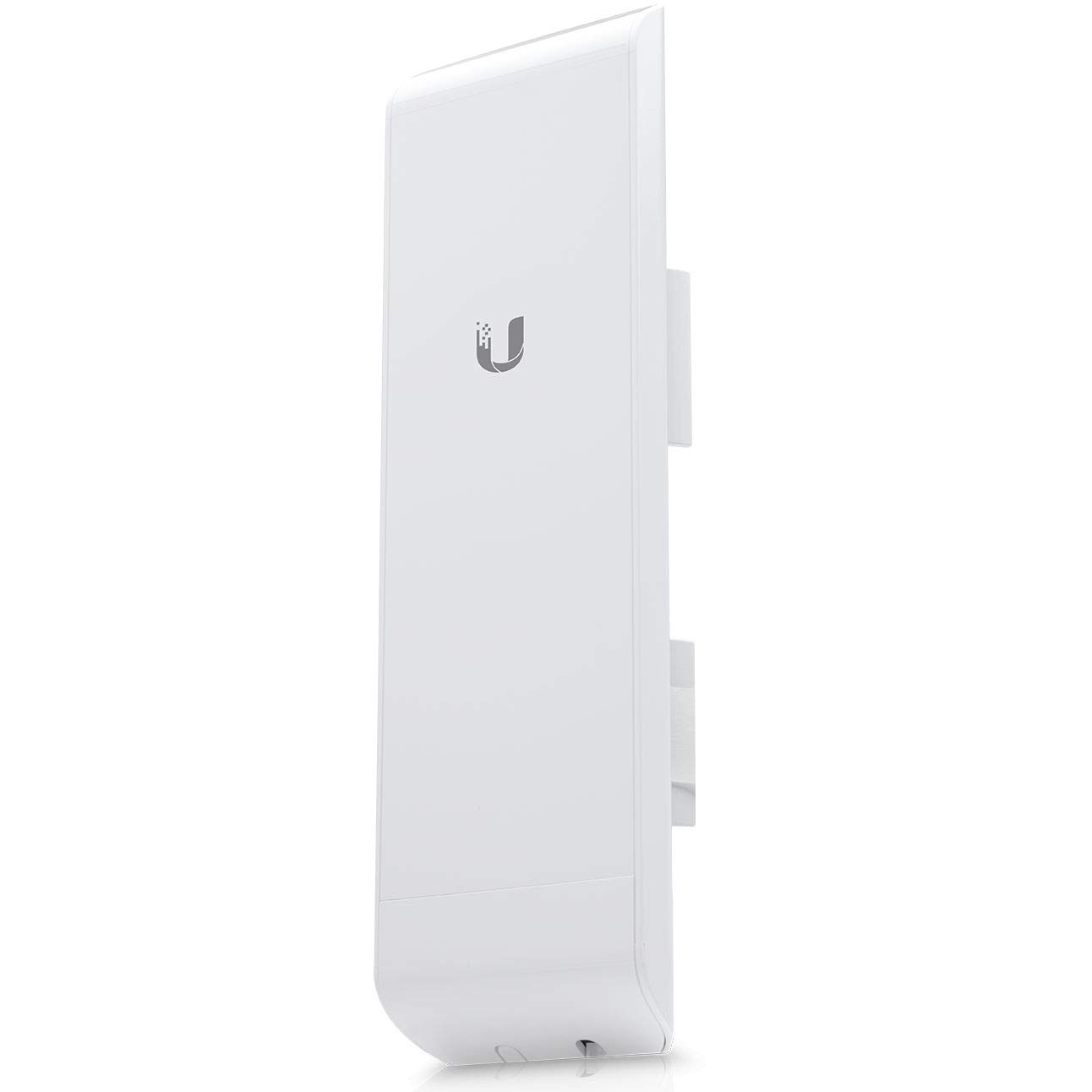

Ubiquiti airMAX NanoStation M5 (NSM5)
←
Get Your Custom Quote!
The Ubiquiti airMAX NanoStation M5 (NSM5) is a compact and cost-effective CPE designed for long-range, point-to-point wireless networking. Featuring an integrated antenna and airMAX protocol, it delivers high throughput and reliability for outdoor wireless bridges and client applications in the 5 GHz frequency band.
SPECIFICATIONS
- Model: NSM5
- Frequency: 5 GHz (5150 – 5875 MHz)
- Throughput: Up to 150+ Mbps
- Antenna Gain: 16 dBi
- Wireless Standards: airMAX, 802.11a/n
- Radio: Dual-Chain MIMO
- Processor: Atheros MIPS 74Kc 560 MHz
- Memory: 32 MB DDR2 RAM
- Storage: 8 MB Flash
- Networking Interfaces: (1) 10/100 Ethernet port with PoE-in
- Power: 24V Passive PoE (included)
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Dimensions: 212 x 45 x 35 mm (8.35 x 1.77 x 1.38″)
- Weight: 230 g (0.51 lb)
- Certifications: FCC, IC, CE
FEATURES
- airMAX Protocol: Provides TDMA protocol for scalability and high throughput
- Integrated Antenna: High-gain directional antenna optimized for long-range links
- Durable Design: Weatherproof enclosure for outdoor deployment
- Easy Setup: Plug-and-play with included PoE adapter
- Management: Managed via Ubiquiti airOS software
MANAGEMENT REQUIREMENTS
- Managed via airOS Web UI or airControl software
