Description

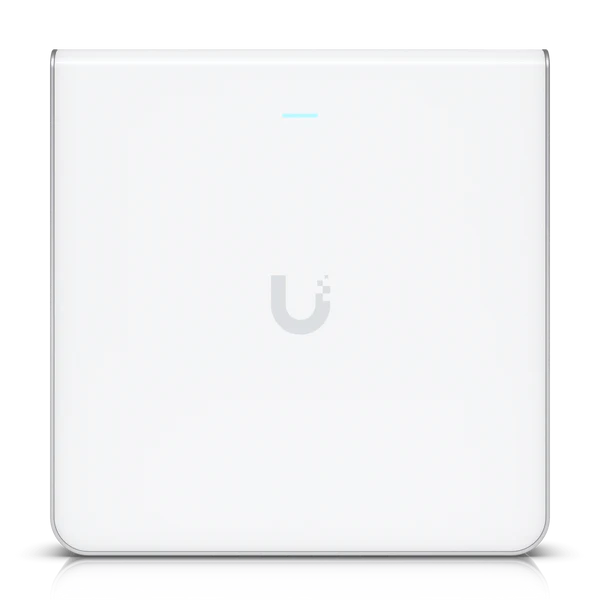

Ubiquiti UniFi U6 Enterprise In-Wall (U6-Enterprise-IW)

FOR QUOTATION WHATSAPP US ON 80891055

The Ubiquiti UniFi U6 Enterprise In-Wall (U6-Enterprise-IW) is a compact, high-performance WiFi 6E access point with integrated switch capabilities. Designed to fit into standard wall outlets, it provides tri-band WiFi coverage (2.4 GHz, 5 GHz, and 6 GHz), ideal for offices, hotels, and residential deployments requiring minimal visual impact and strong performance.

SPECIFICATIONS

• Model: U6-Enterprise-IW
• WiFi Standards: 802.11a/b/g/n/ac/ax/be (WiFi 6E)
• Frequency Bands: 2.4 GHz, 5 GHz, 6 GHz
• Max Throughput:
  • 2.4 GHz: up to 573.5 Mbps
  • 5 GHz: up to 2.4 Gbps
  • 6 GHz: up to 4.8 Gbps
• MIMO:
  • 2.4 GHz: 2×2
  • 5 GHz: 2×2
  • 6 GHz: 2×2
• Ethernet Ports:
  • (1) 2.5 GbE RJ45 uplink (PoE In)
  • (4) GbE RJ45 downlink ports
  • (2) PoE output ports (802.3af)
• Power Method: 802.3at PoE+
• Power Consumption: Up to 21W
• Mounting: In-wall electrical box
• Dimensions: 139.7 x 126 x 31 mm (5.5 x 5 x 1.2″)
• Weight: 460 g (1.01 lb)
• Operating Temperature: -10 to 40°C (14 to 104°F)
• Enclosure: Indoor
• Certifications: CE, FCC, IC

FEATURES

• Tri-band WiFi 6E: Covers legacy and new WiFi 6E-capable devices
• Compact Form Factor: Fits standard electrical wall outlets
• Integrated Switch: Includes downlink and PoE out ports for connected devices
• High Density Support: Designed for environments with many users
• Advanced Security: WPA3, VLANs, and advanced traffic management
• Centralized Management: Managed through the UniFi Network Controller

MANAGEMENT REQUIREMENTS

• UniFi Network Version 7.5.174 or later
