Ubiquiti UniFi UA-Intercom

←
Get Your Custom Quote!

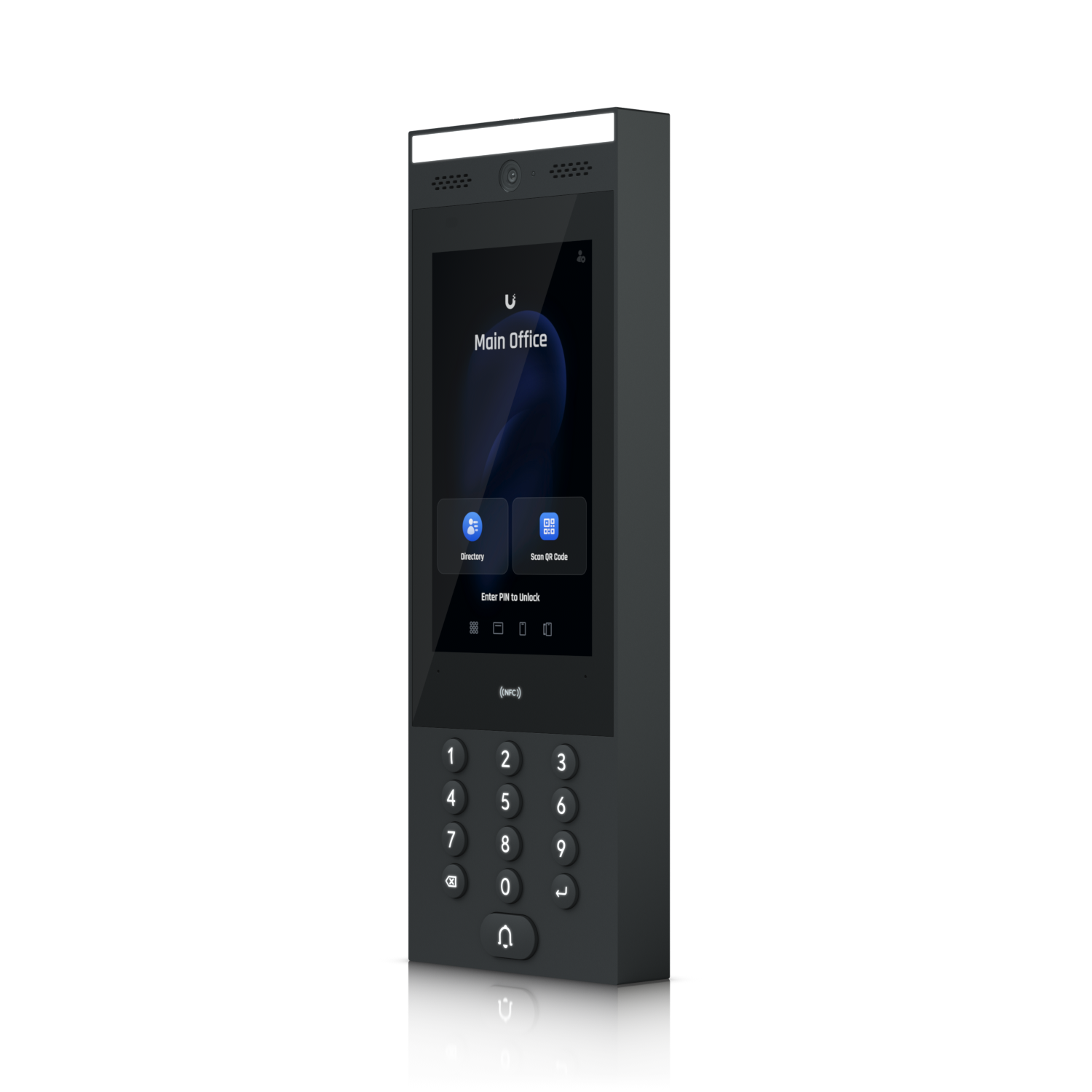

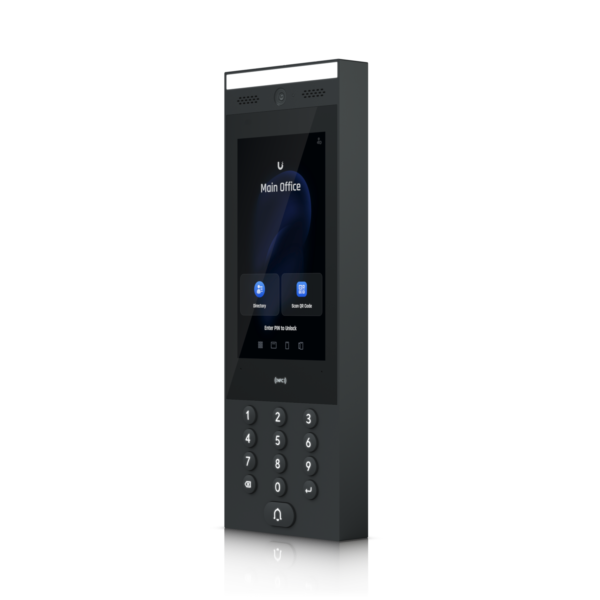

The Ubiquiti UniFi UA-Intercom is a robust indoor/outdoor intercom terminal designed for secure entry management in residential and commercial buildings. Featuring a 7″ capacitive touchscreen, integrated camera, and multiple authentication methods, it seamlessly integrates with the UniFi Access ecosystem.

SPECIFICATIONS

• Model: UA-Intercom
• Display:
  • Size: 7″ (177 mm) diagonal
  • Resolution: 1024 x 600 pixels
  • Brightness: Up to 1000 nits (typical)
  • Touch Technology: Capacitive multi-touch
  • Orientation: Portrait
• Camera:
  • Resolution: 8 MP (3264 x 2448)
  • Field of View: Horizontal 79.4°, Vertical 97.5°, Diagonal 118.2°
• Audio:
  • Microphone: Built-in
  • Speaker: 4 ohm, 2W
• Authentication Methods:
  • NFC Card & Keyfob Access
  • PIN Access
  • Mobile Unlock via UniFi Identity app
  • QR Code Unlock
• NFC Specifications:
  • Frequency: 13.56 MHz
  • Read Range: <30 mm
  • Standards: ISO 14443A/B, 15693
  • Technologies: NFC Tag 1-5, MIFARE Classic, Plus, Ultralight, DESFire
• Connectivity:
  • Networking Interface: (1) Gigabit Ethernet RJ45 port
  • Bluetooth: Version 4.2
• Power:
  • Method: 802.3af PoE
  • Supported Voltage Range: 48V DC
  • Max. Power Consumption: 13W
• Sensors:
  • Proximity Sensor
  • Ambient Light Sensor (ALS)
• Environmental:
  • Operating Temperature: Device -30 to 60°C (-22 to 140°F); Display -25 to 60°C (-13 to 140°F)
  • Operating Humidity: 5 to 90% non-condensing
  • Weatherproofing: IP65-rated
• Mechanical:
  • Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1″)
  • Weight: Device 965 g (2.1 lb); Bracket 445 g (1 lb)
  • Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
  • Mount Material: Powder-coated stainless steel
  • Mounting Options: Wa
