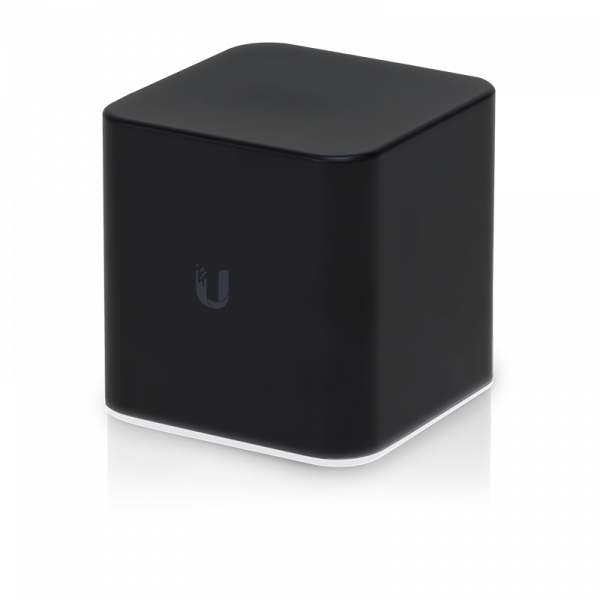

Ubiquiti airMAX Home Wi-Fi Access Point (ACB-AC)

←
Get Your Custom Quote!

High-performance home Wi-Fi access point with dual-band 802.11ac support, 24V PoE passthrough, and seamless integration with airMAX CPE devices. Managed remotely via UISP.

SPECIFICATIONS

• Model: ACB-AC
• Wireless Standards: 802.11ac (Wi-Fi 5), 2×2 MIMO
• Operating Frequencies: 2.4 GHz / 5 GHz
• Max. Speeds:
  • 2.4 GHz: 300 Mbps
  • 5 GHz: 866.7 Mbps
• Antenna Gain:
  • 2.4 GHz: 4 dBi
  • 5 GHz: 5 dBi
• Max. TX Power: 22 dBm
• Networking Interface: (4) Gigabit Ethernet RJ45 Ports
• Management Interface: Wi-Fi / Ethernet
• Power Method:
  • Micro-USB Adapter (Included)
  • 24V DC, 0.83A Passive PoE In on Ethernet Port 1
• Power Supply: 24V
• Supported Voltage Range: 22–27V DC
• Max. Power Consumption: 8.5W
• PoE Out: Controllable 24V Passive PoE Out (+4, 5; -7, 8) on WAN Port
• ESD/EMP Protection: ±24 kV Contact / Air
• LED: Status Indicator
• Dimensions: 87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5″)
• Weight: 280 g (9.9 oz)
• Operating Temperature: -10 to 50° C (14 to 122° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes
