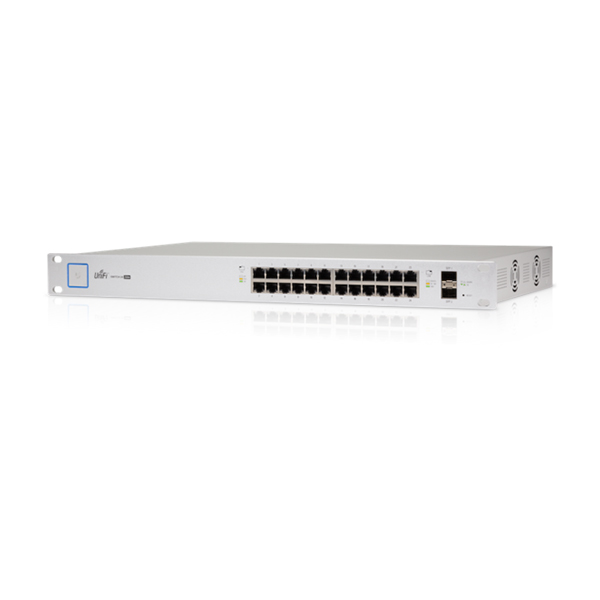

Ubiquiti UniFi Switch 24 PoE (US-24-250W)

←
Get Your Custom Quote!

The Ubiquiti UniFi Switch 24 PoE (US-24-250W) is a fully managed Layer 2 switch with 24 Gigabit RJ45 ports including 24 auto-sensing PoE+ ports and two SFP ports. Designed to deliver robust performance and intelligent switching for expanding enterprise networks, it integrates seamlessly into the UniFi ecosystem.

SPECIFICATIONS

• Model: US-24-250W
• Dimensions: 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.23″)
• Weight: 4.7 kg (10.36 lb)
• Enclosure Material: SGCC Steel
• Networking Interfaces:
  • (24) 10/100/1000 RJ45 Ports with 802.3af/at PoE
  • (2) 1G SFP Ports
• PoE: IEEE 802.3af/at (PoE/PoE+)
• Total Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Max. Power Consumption: 250W
• Power Method: 100–240VAC/50–60 Hz, Universal Input
• Power Supply: Internal 250W AC/DC
• Cooling: Active cooling (fan)
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• 24 x PoE+ Ports: Power access points, cameras, and VoIP phones
• 2 x SFP Ports: Uplink to high-speed fiber backbone
• Layer 2 Managed: VLAN, QoS, link aggregation, and port mirroring
• UniFi Controller Support: Seamless integration and centralized management
• Rack-Mountable: 1U rackmount design

MANAGEMENT REQUIREMENTS

• UniFi Network Version 5.12.11 or later
• Managed via UniFi Controller (local or cloud-hosted)
