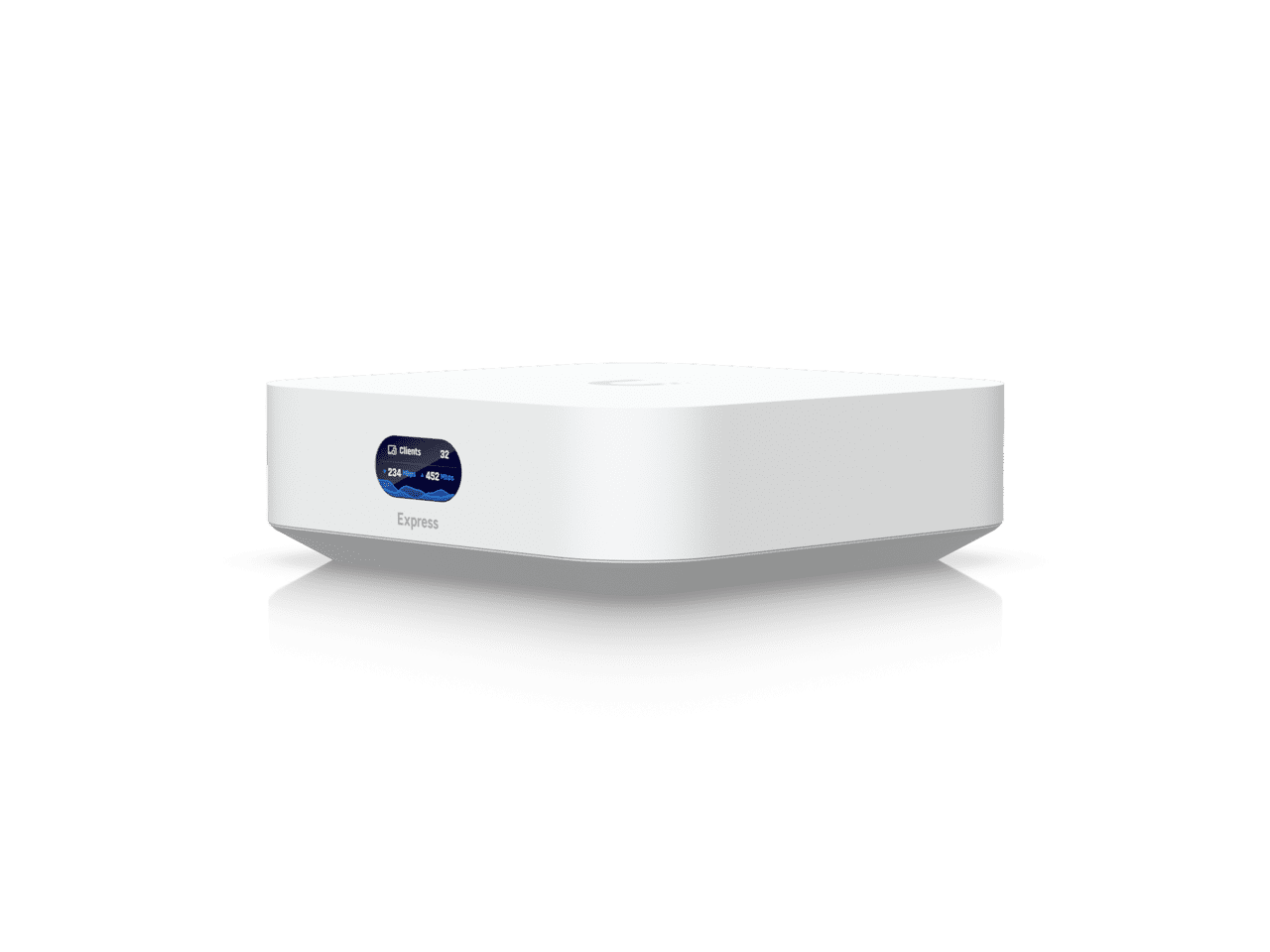

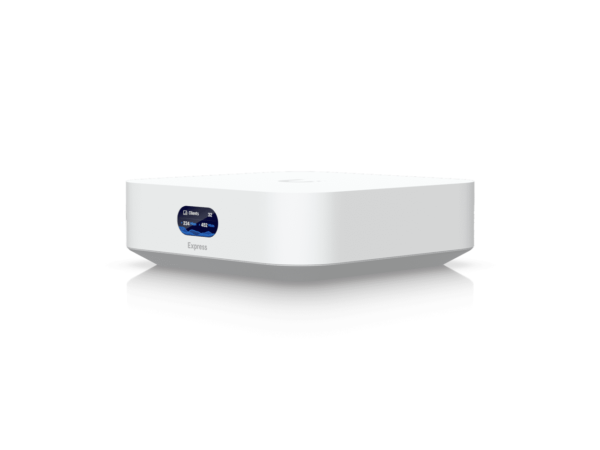

Ubiquiti UniFi Express (UX)

←
Get Your Custom Quote!

The Ubiquiti UniFi Express (UX) is a compact and powerful UniFi OS Console designed for small businesses and home users seeking an all-in-one networking solution. It integrates routing, switching, and WiFi 6 access point functionality with seamless UniFi Network management and security features.

SPECIFICATIONS

• Model: UX
• Dimensions: 192 x 152 x 38 mm (7.56 x 5.98 x 1.50″)
• Weight: 0.65 kg (1.43 lb)
• Enclosure Material: Plastic
• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
• System Memory: 2 GB DDR4
• Networking Interfaces:
  • (1) 1 GbE RJ45 WAN port
  • (3) 1 GbE RJ45 LAN ports
• WiFi Standards: 802.11ax (WiFi 6)
• WiFi Throughput:
  • 5 GHz: 1.2 Gbps
  • 2.4 GHz: 300 Mbps
• MIMO:
  • 5 GHz: 2×2 MU-MIMO
  • 2.4 GHz: 2×2 MU-MIMO
• Max TX Power:
  • 5 GHz: 22 dBm
  • 2.4 GHz: 22 dBm
• Wireless Security: WPA3 Personal, WPA3 Enterprise
• Power Input: 100–240V AC, 0.5A, 50/60 Hz
• Power Consumption: 15W max
• Management Interface: Ethernet, Bluetooth
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• Integrated UniFi Network Application
• Routing Performance: Up to 1 Gbps
• Advanced Security:
  • Stateful Firewall
  • Application-Aware Layer 7 Firewall
  • Intrusion Detection and Prevention (IDS/IPS)
  • Deep Packet Inspection (DPI)
• WiFi 6 Support for enhanced speed and capacity
• VPN Support:
  • Site-to-Site VPN: IPsec, OpenVPN
  • Remote Access VPN Server
• Networking Features:
  • Managed 3-Port Gigabit Switch
  • VLAN Support
  • QoS and Bandwidth Management
  • Guest Network
  • IPv6 Support

MANAGEMENT REQUIREMENTS

• UniFi Network Version 7.1 and later
• Managed via UniFi Network Controller (local or cloud hosted)
