Ubiquiti UniFi Gateway Max (UXG-Max)

←
Get Your Custom Quote!

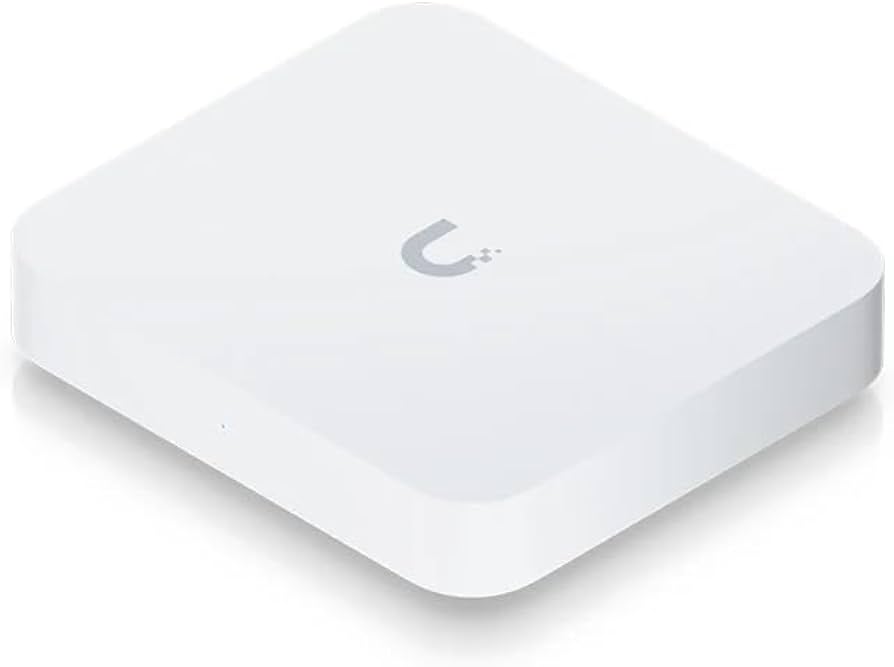

The Ubiquiti UniFi Gateway Max (UXG-Max) is a compact, high-performance multi-WAN security gateway designed for small to medium-sized networks. It offers full 2.5 GbE support across all ports, providing enhanced throughput and future-proofing for evolving network demands. Managed via UniFi Network 8.1.113 or later, it integrates seamlessly into the UniFi ecosystem, delivering robust security features and advanced networking capabilities.

SPECIFICATIONS

• Model: UXG-Max
• Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
• Weight: 520 g (1.1 lb)
• Enclosure Material: Polycarbonate
• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• Memory: 2 GB DDR4
• Networking Interfaces:
  • WAN: (1) 2.5 GbE RJ45 port
  • LAN: (4) 2.5 GbE RJ45 ports (one remappable to WAN)
• Power Input: USB Type-C (5V DC/5A), adapter included
• Max. Power Consumption: 9.6W
• Operating Temperature: -10 to 40°C (14 to 104°F)
• Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
• Security Features:
  • Stateful Firewall
  • Application-Aware Layer 7 Firewall
  • Deep Packet Inspection (DPI) & Traffic Identification
  • Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
  • Content Filtering
  • Intrusion Prevention System (IPS)/Intrusion Detection System (IDS)
  • Ad Blocking
  • 55,000+ IDS/IPS Signatures with CyberSecure
• VPN & SD-WAN:
  • License-Free SD-WAN
  • Site-to-Site VPN: Site Magic, IPsec, OpenVPN
  • VPN Server: Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
  • VPN Client: OpenVPN, WireGuard
• Routing & Networking:
  • Multi-WAN Load Balancing
  • Dynamic Routing: OSPF
  • Advanced Quality of Service (QoS)
  • Multicast DNS (mDNS)
  • Advanced NAT (SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT)
  • Integrated RADIUS Server
  • RADIUS over TLS (RadSec)
  • Additional Internet Failover with UniFi LTE Backup
  • Internet Quality and Outage Reporting
  • MAC Address Table Size: 2,000
  • Policy-Based WAN and VPN Routing
  • Customizable DHCP Server
  • IPv6 ISP Support
  • IGMP Proxy
• Management Interface: UniFi Network 8.1.113 or later, CloudKey, Official UniFi Hosting, or UniFi Network Server
• Bluetooth: Yes
• LED Indicators: Ethernet (White: link/activity)
• Button: Factory reset
• ESD/EMP Protection: Air: ±8kV, Contact: ±4kV
