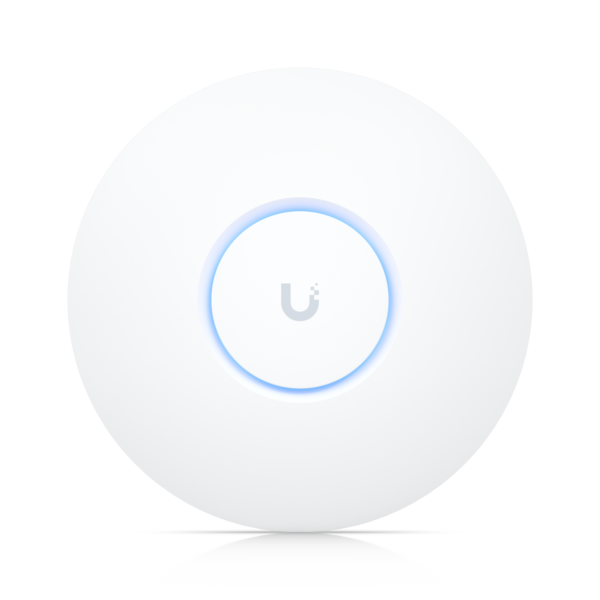

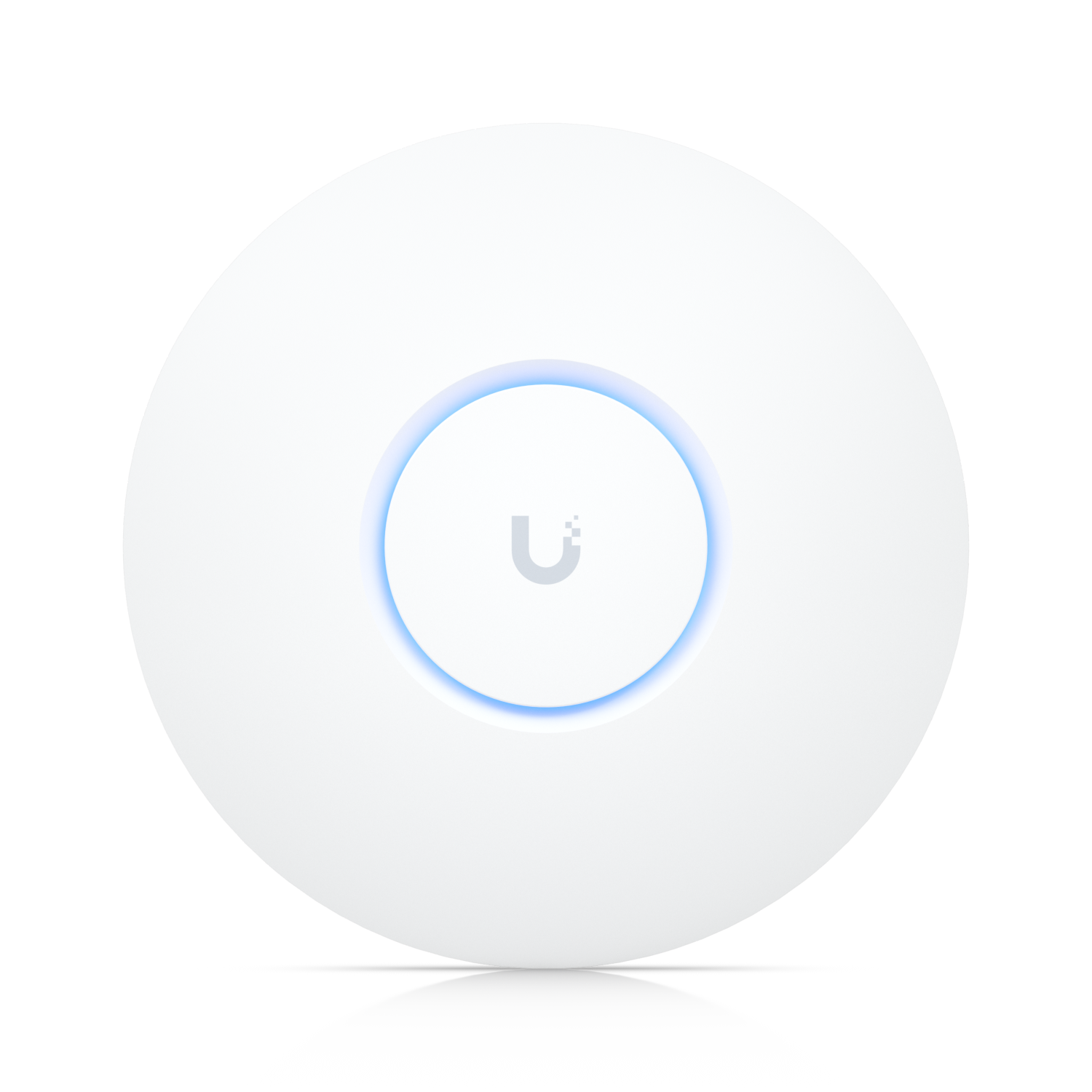

Ubiquiti UniFi nanoHD Access Point (UAP-nanoHD)

←
Get Your Custom Quote!

Compact, high-performance dual-band 802.11ac Wave 2 access point designed for high-density environments. The UniFi nanoHD delivers superior Wi-Fi performance with advanced features and seamless integration into the UniFi Network system.

SPECIFICATIONS

• Model: UAP-nanoHD
• Wi-Fi Standard: 802.11ac Wave 2 (Wi-Fi 5)
• MU-MIMO: 4×4 MU-MIMO on 5 GHz, 2×2 MIMO on 2.4 GHz
• Radio Rates:
  • 5 GHz: 1.733 Gbps
  • 2.4 GHz: 300 Mbps
• Aggregate Throughput: Over 2 Gbps
• Concurrent Clients: 200+ users
• Networking Interface: (1) Gigabit Ethernet RJ45 port
• Power Method: 802.3af PoE
• Power Supply: 48V, 0.5A Gigabit PoE Adapter (included with single-pack)
• Max. Power Consumption: 10.5W
• Supported Voltage Range: 44–57V DC
• Dimensions: Ø160 x 32.65 mm (Ø6.3 x 1.29″)
• Weight:
  • Without mount: 300 g (10.6 oz)
  • With mount: 315 g (11.1 oz)
• Operating Temperature: -10 to 70°C (14 to 158°F)
• Operating Humidity: 5 to 95% noncondensing
• Mounting: Wall and ceiling mountable
• Management: UniFi Network Controller (web or mobile app)
• Advanced Features:
  • Band Steering
  • Airtime Fairness
  • Guest Portal/Hotspot Support
  • WPA-Enterprise (WPA/WPA2/WPA3)
  • VLAN Support
  • Zero Handoff Roaming
• Certifications: CE, FCC, IC
