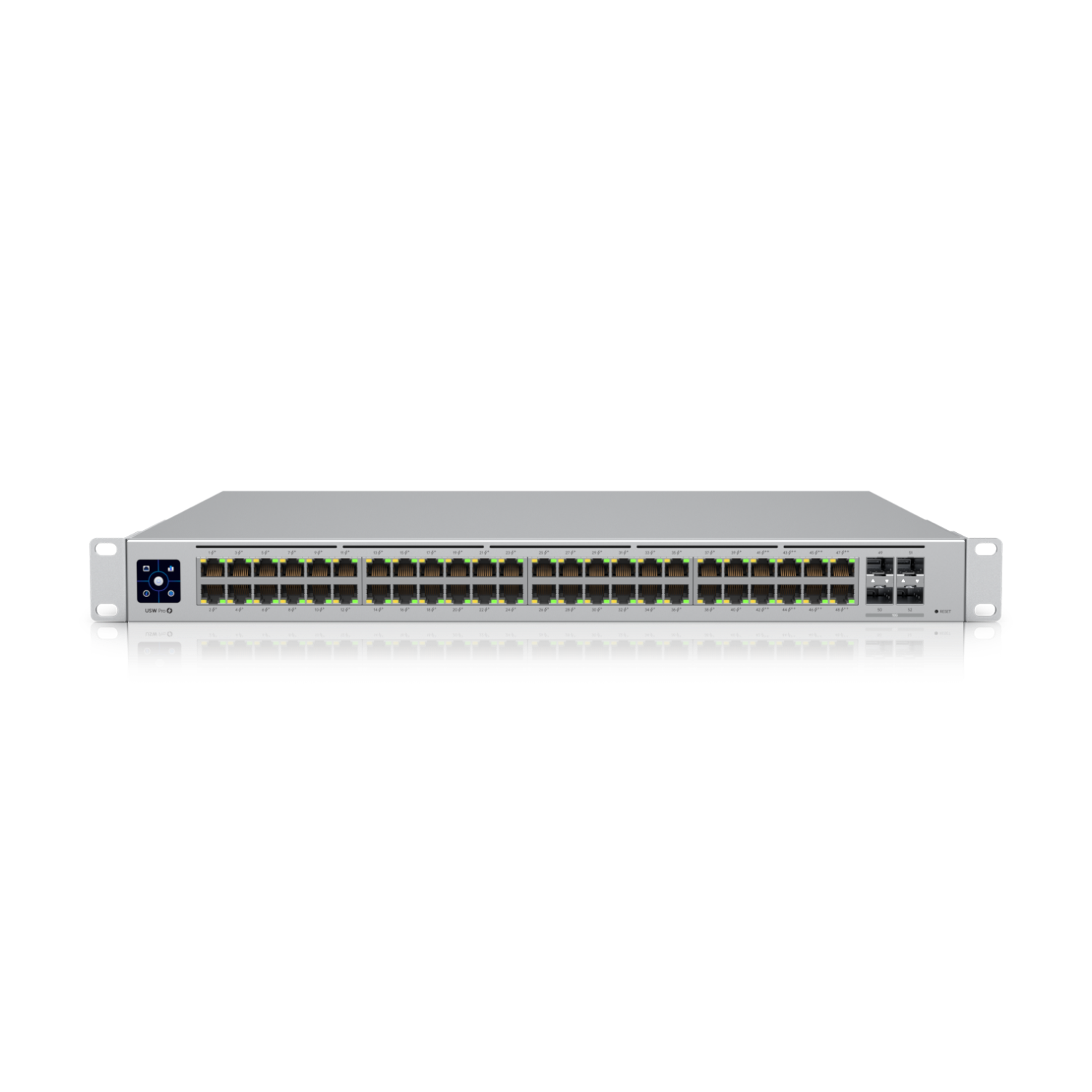

Ubiquiti UniFi Switch Standard 48 (USW-48)

←
Get Your Custom Quote!

The Ubiquiti UniFi Switch 48 (USW-48) is a fully managed Layer 2 switch featuring 48 Gigabit RJ45 ports designed for high-performance, reliable connectivity in enterprise networks. It offers flexible uplink options and seamless integration with the UniFi Controller for centralized network management.

SPECIFICATIONS

• Model: USW-48
• Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.23 x 1.72″)
• Weight: 4.1 kg (9.04 lb)
• Enclosure Material: SGCC Steel
• Networking Interfaces:
  • (48) 10/100/1000 RJ45 Ports
  • (4) 1G SFP Ports
• PoE: None (Non-PoE switch)
• Power Method: AC Input: 100–240VAC, 50/60Hz
• Max. Power Consumption: 35W
• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps
• Cooling: Fan(s)
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• 48 x Gigabit RJ45 Ports: High-speed wired connectivity for devices
• 1G SFP Uplink Ports: Four ports for fiber or copper uplinks
• Layer 2 Switching Features: VLAN, link aggregation, QoS, and port isolation
• UniFi Controller Integration: Centralized management and monitoring
• Rack-Mountable: Standard 1U rack size for data center and enterprise deployments

MANAGEMENT REQUIREMENTS

• UniFi Network Version 5.12.11 or later
• Managed through UniFi Network Controller (cloud or local)
