Ubiquiti UniFi Protect G5 Dome Ultra (UVC-G5-DOME-ULTRA)

←
Get Your Custom Quote!

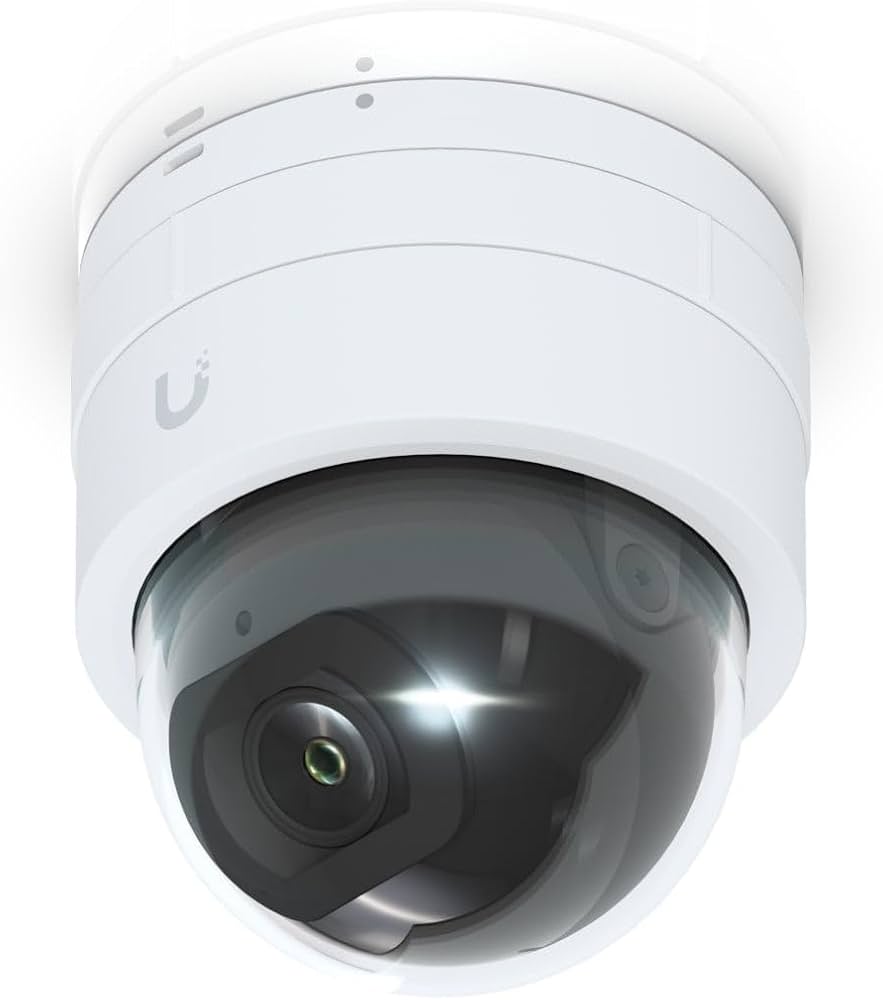

The Ubiquiti UniFi Protect G5 Dome Ultra (UVC-G5-DOME-ULTRA) is an ultra-compact, tamper-resistant 2K HD PoE camera designed for low-profile indoor security applications. It features a 4MP CMOS sensor, delivering 2688 x 1512 resolution video at 30 FPS, and offers enhanced night vision capabilities with built-in IR LED illumination up to 20 meters. The camera integrates seamlessly with the UniFi Protect system, providing advanced video analytics and flexible mounting options for various environments.

SPECIFICATIONS

• Model: UVC-G5-DOME-ULTRA
• Dimensions: Ø63.6 x 68.2 mm (Ø2.5 x 2.7″)
• Weight: 175 g (6.2 oz)
• Enclosure Material: Aluminum alloy, polycarbonate
• Mount Material: Stainless steel
• Mounting: Surface mount (Included); Junction box, Ultra Flush mount (Optional)
• Tamper Resistance: IK06-rated
• Networking Interface: (1) 10/100 Mbps RJ45 port
• Management Interface: UniFi Protect application (web and mobile)
• Sensor: 1/2.4″ CMOS sensor
• Lens: Fixed focal length
• Field of View: Horizontal: 102.4°, Vertical: 54.9°, Diagonal: 120.6°
• Night Mode: Built-in IR LED illumination with IR cut filter; up to 20 m (65 ft) range
• Video Compression: H.264
• Resolution: 2688 x 1512 (16:9)
• Max. Frame Rate: 30 FPS
• Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, noise reduction by motion, masking, text overlay
• Microphone: Not included
• Speaker: Not included
• Max. Power Consumption: 4.2W
• Power Method: PoE
• Supported Voltage Range: 37–57V DC
• Operating Temperature: -20 to 40°C (-4 to 104°F)
• Operating Humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC
• Smart Detections: AI-powered detection of people, vehicles, and animals
