Description

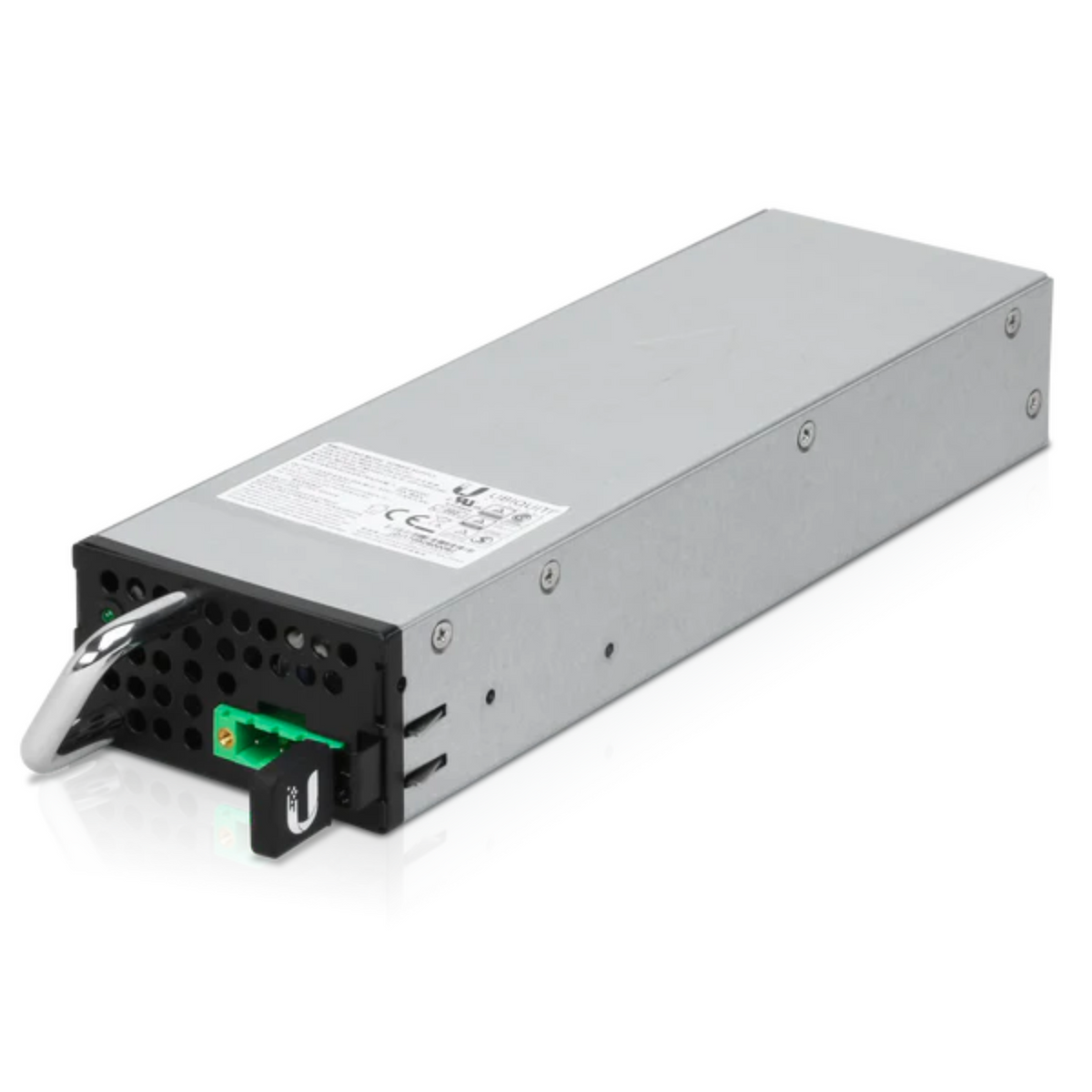

Ubiquiti EdgePower 54V 150W DC PSU Module (EP-54V-150W-DC)

←
Get Your Custom Quote!

The EP-54V-150W-DC is a modular DC-to-DC power supply unit designed for Ubiquiti’s EdgePower systems. It delivers 150W of 54V DC power and can be used as a primary or secondary PSU within the EdgePower chassis. When paired with an additional PSU module, the system can provide up to 300W of power or offer redundancy for uninterrupted operation. This hot-swappable module ensures minimal downtime during maintenance or upgrades.

SPECIFICATIONS

• Power Method: DC/DC 150W for 22–60V input

• Output Voltage: 54V DC

• Power Output: 150W

• Battery Compatibility: 2/3/4 series lead-acid batteries

• Maximum Charging Voltage:

  • 2 series: 26.8–27.5V

  • 3 series: 40.2–41.2V

  • 4 series: 53.6–55V

• Discharge Protection Voltage:

  • 2 series: 21.5V

  • 3 series: 32V

  • 4 series: 43V

• Charging Current:

  • 2 series: 0.3A

  • 3 series: 0.3A

  • 4 series: 0.2A

• LED Indicators: System On/Off

• Operating Temperature: 0 to 40°C (32 to 104°F)

• Operating Humidity: 10% to 90% non-condensing
